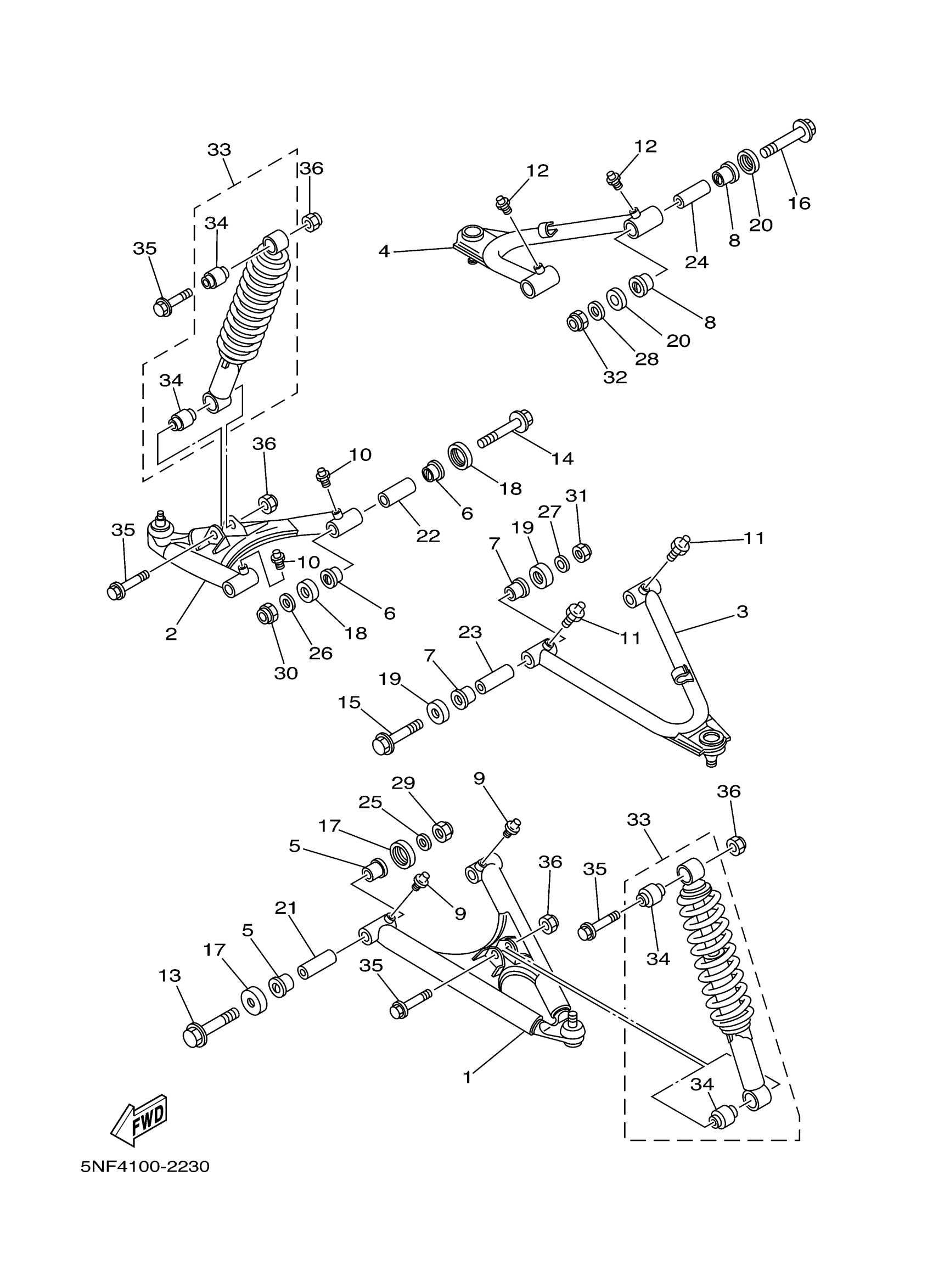

Yamaha YFM35XSC (WARRIOR) 5NFC 2004 FRONT SUSPENSION WHEEL Diagram
#
1
FRONT LOWER ARM COMP. (LEFT)
3GD-23570-00-P0
Unavailable
2
FRONT LOWER ARM COMP. (RIGHT)
3GD-23580-00-P0
Unavailable
3
FRONT UPPER ARM COMP. (LEFT)
3GD-23540-00-P0
Unavailable
4
FRONT UPPER ARM COMP. (RIGHT)
3GD-23550-00-P0
Unavailable
9
NIPPLE, GREASE
93700-06M03-00
Unavailable
10
NIPPLE, GREASE
93700-06M03-00
Unavailable
11
NIPPLE, GREASE
93700-06M03-00
Unavailable
12
NIPPLE, GREASE
93700-06M03-00
Unavailable
17
COVER, THRUST 1
1UY-23517-01-00
Unavailable
18
COVER, THRUST 1
1UY-23517-01-00
Unavailable
19
COVER, THRUST 1
1UY-23517-01-00
Unavailable
20
COVER, THRUST 1
1UY-23517-01-00
Unavailable
21
COLLAR(1UY)
90387-101R3-00
Unavailable
22
COLLAR(1UY)
90387-101R3-00
Unavailable
23
COLLAR(1UY)
90387-101R3-00
Unavailable
24
COLLAR(1UY)
90387-101R3-00
Unavailable
25
WASHER (7A9)
90201-100F7-00
Unavailable
26
WASHER (7A9)
90201-100F7-00
Unavailable
27
WASHER (7A9)
90201-100F7-00
Unavailable
28
WASHER (7A9)
90201-100F7-00
Unavailable
29
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
30
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
31
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
32
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
33
SHOCK ABSORBER ASSY
3GD-23350-00-35
Unavailable
33
SHOCK ABSORBER ASSY
3GD-23350-00-36
Unavailable
34
. DAMPER, BUSH B
2XJ-2331R-00-00
Unavailable
35
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
36
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
