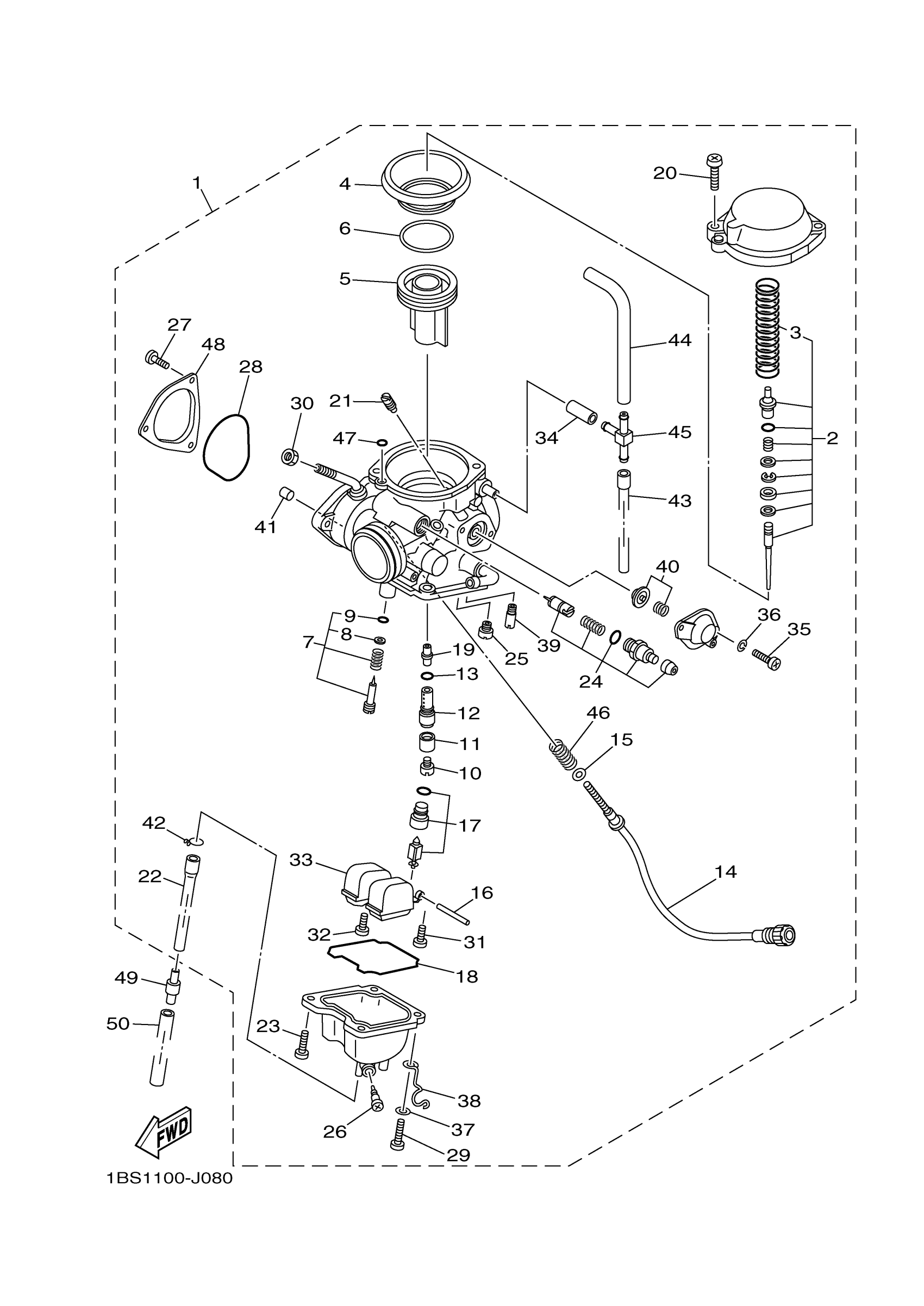

Yamaha YFM35RZW (RAPTOR 350) 1BS1 2010 CARBURETOR Diagram
#
3
SPRING, DIAPHRAGM
5YT-24423-00-00
Unavailable
5
VALVE, THROTTLE 1
5YT-14112-00-00
Unavailable
6
RING
5YT-14194-00-00
Unavailable
11
RING
5GH-14918-00-00
Unavailable
12
HOLDER
5YT-14261-00-00
Unavailable
14
SCREW, AIR ADJUSTING
5YT-14123-00-00
Unavailable
16
PIN, FLOAT
127-14186-00-00
Unavailable
17
NEEDLE VALVE SET
5YT-14107-25-00
Unavailable
18
O-RING
5DM-14561-00-00
Unavailable
19
NOZZLE, MAIN
5YT-14141-40-00
Unavailable
20
SCREW
4KM-14216-00-00
Unavailable
21
. JET, MAIN (#165)
1HX-14231-33-00
Unavailable
22
PIPE
5YT-14193-00-00
Unavailable
23
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
24
STARTER SET
5YT-1410A-00-00
Unavailable
25
JET, MAIN (# 70)
3G2-14231-14-00
Unavailable
26
PLUG, DRAIN
5LW-14191-00-00
Unavailable
27
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
28
O-RING
5LP-14147-00-00
Unavailable
29
SCREW, PAN HEAD
98517-04012-00
Unavailable
30
NUT, CABLE ADJUSTING
522-14161-00-00
Unavailable
31
SCREW, PAN HEAD(JG1)
98507-04008-00
Unavailable
32
SCREW
1FN-14565-00-00
Unavailable
33
FLOAT
5DM-14985-00-00
Unavailable
34
. PIPE
5YT-14197-00-00
Unavailable
35
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
36
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
37
WASHER(JF2)
92907-04600-00
Unavailable
38
CLIP
5KM-14937-00-00
Unavailable
39
JET, PILOT (# 22.5)
4KM-14142-22-00
Unavailable
40
DIAPHRAGM SET 5
5YT-1490H-00-00
Unavailable
41
GUIDE, CABLE
3GD-14155-00-00
Unavailable
42
CLIP, PIPE
80N-14139-00-00
Unavailable
43
PIPE
5YT-14197-20-00
Unavailable
44
. PIPE
5YT-14197-10-00
Unavailable
45
PIPE
28V-14988-00-00
Unavailable
46
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
47
O-RING (493-CARB.)
354-14147-00-00
Unavailable
48
COVER 1
4WV-14293-00-00
Unavailable
49
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
50
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
