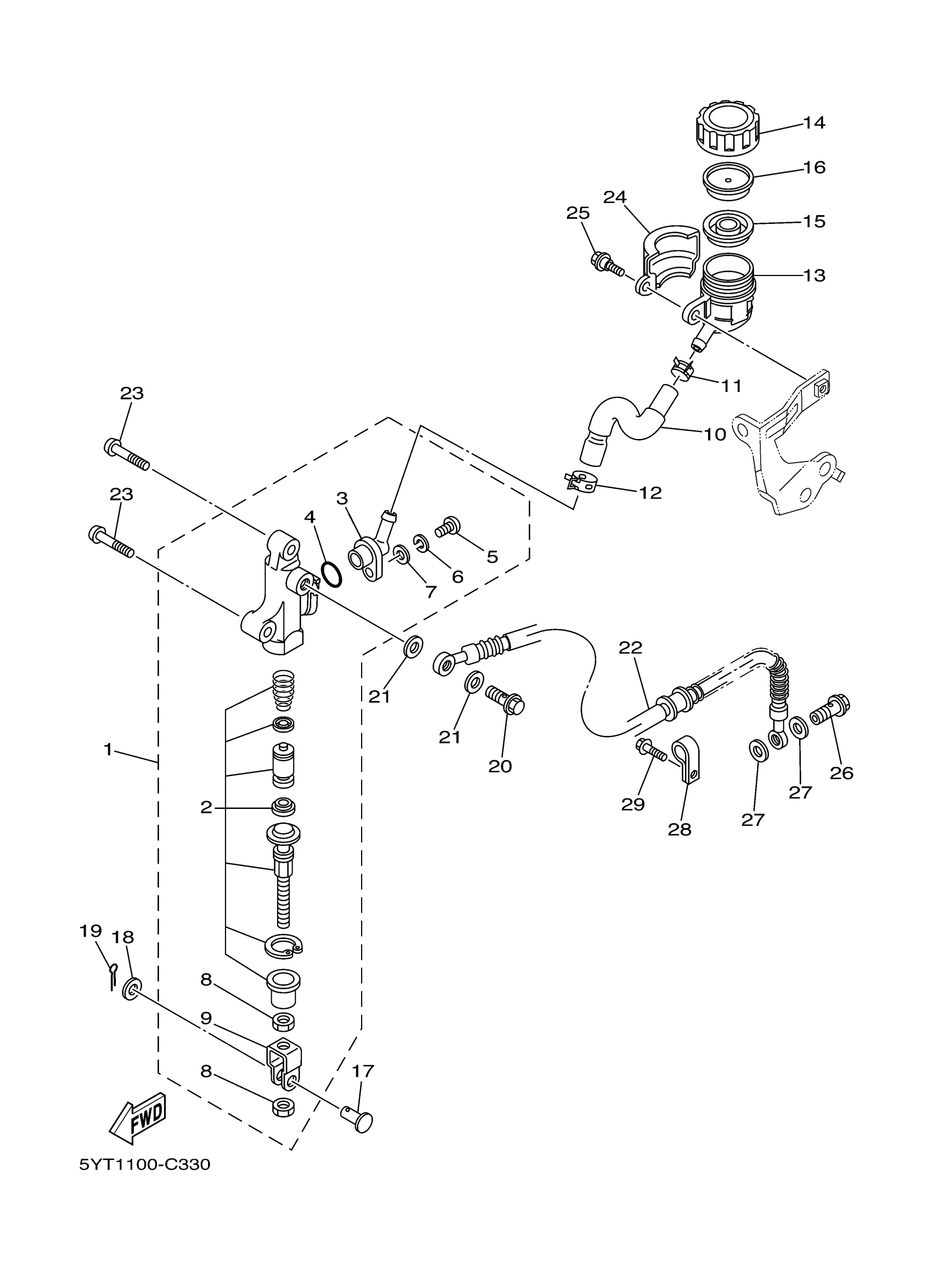

Yamaha YFM35RYW (RAPTOR 350) 5YTW0 2009 REAR MASTER CYLINDER Diagram
#
Description
Price
1
RR. MASTER CYLINDER ASSY.
5YT-2583V-00-00
Unavailable
2
CYLINDER KIT, MASTER
5FK-W0042-50-00
Unavailable
3
JOINT
47X-2582A-50-00
Unavailable
16
BUSH,DIAPHRAGM
2VN-25855-00-00
Unavailable
17
PIN, CLEVIS
90240-08005-00
Unavailable
18
WASHER, PLATE
90201-08066-00
Unavailable
19
PIN, COTTER
91490-16020-00
Unavailable
20
BOLT, UNION
90401-10015-00
Unavailable
21
WASHER, PLATE(481)
90201-10118-00
Unavailable
22
HOSE, BRAKE
5YT-25874-10-00
Unavailable
23
BOLT, BUTTON HEAD
92012-08030-00
Unavailable
24
COVER, RESERVOIR TANK
5YT-25888-00-00
Unavailable
25
BOLT
90109-06240-00
Unavailable
26
BOLT, UNION
90401-10015-00
Unavailable
27
WASHER, PLATE(481)
90201-10118-00
Unavailable
28
HOLDER, BRAKE HOSE 2
5YT-25876-10-00
Unavailable
29
BOLT, FLANGE
95817-06020-00
Unavailable
