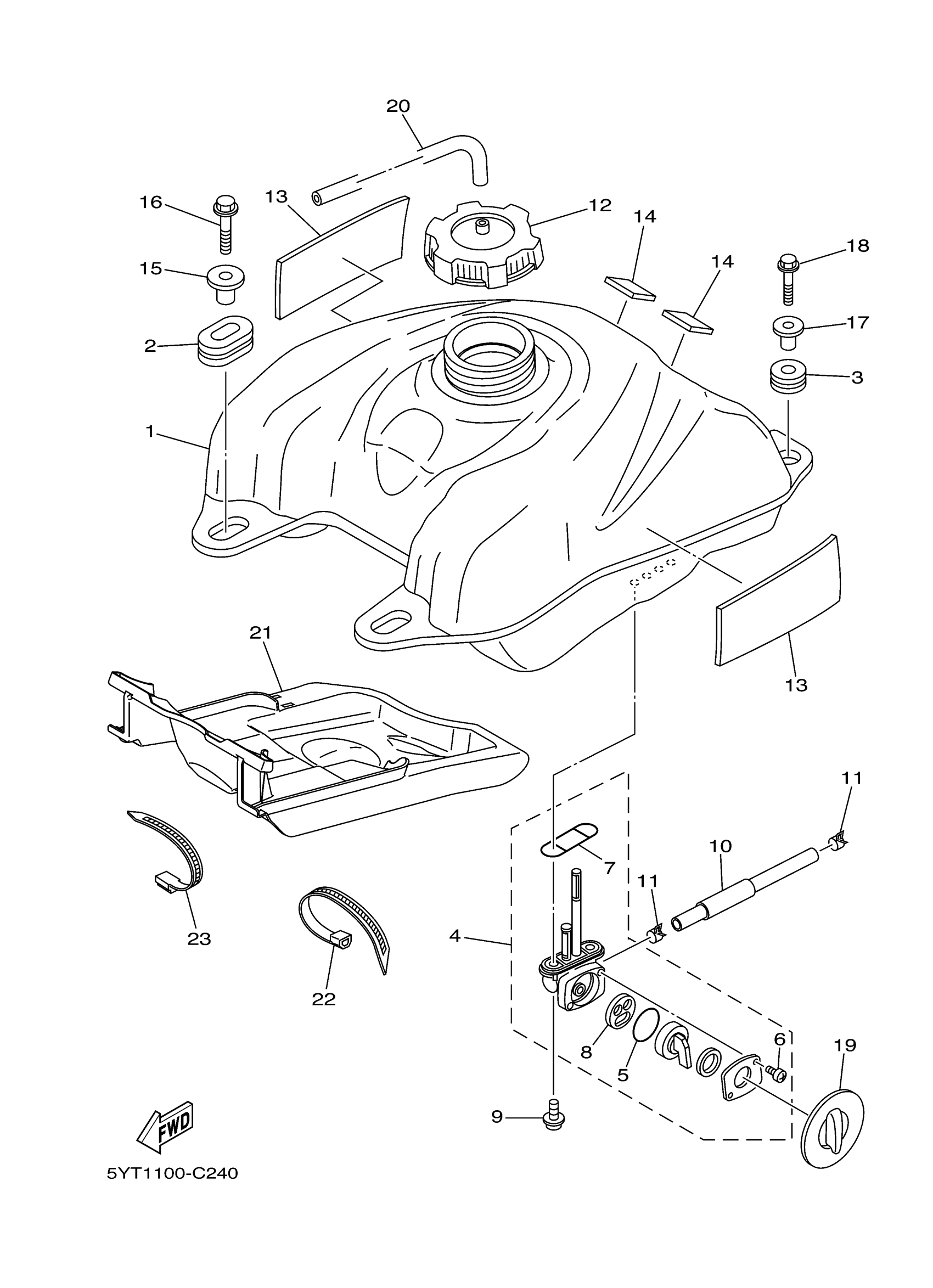

Yamaha YFM35RYW (RAPTOR 350) 5YTW0 2009 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5YT-24110-10-00

Unavailable

2

GROMMET(38W)

90480-01400-00

$13.49

3

GROMMET (4V1)

90480-18290-00

$8.49

4

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

5

SEAL, COCK

3AJ-24534-01-00

$10.99

6

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

7

O-RING

4X8-24512-00-00

$8.99

8

VALVE PACKING

3AC-24523-00-00

$12.99

9

SCREW

90149-06108-00

$1.01

10

PIPE, FUEL 1

5YT-24311-10-00

Unavailable

11

CLIP

90467-10038-00

$1.54

12

CAP ASSY

5KM-24610-00-00

$61.99

13

DAMPER 1

5TG-21541-00-00

$7.99

14

DAMPER

5YT-24665-00-00

$7.99

15

COLLAR

90387-07021-00

$7.49

16

BOLT, FLANGE

95817-06030-00

Unavailable

17

COLLAR (36R)

90387-066J1-00

Unavailable

18

BOLT, FLANGE

95817-06030-00

Unavailable

19

LEVER, COCK

5YT-24524-01-00

Unavailable

20

HOSE (L600)

90445-083J5-00

Unavailable

21

DAMPER, PLATE 1

5YT-2414H-00-00

Unavailable

22

CLAMP(4FM)

90464-15195-00

Unavailable

23

CLAMP(4FM)

90464-15195-00

Unavailable
