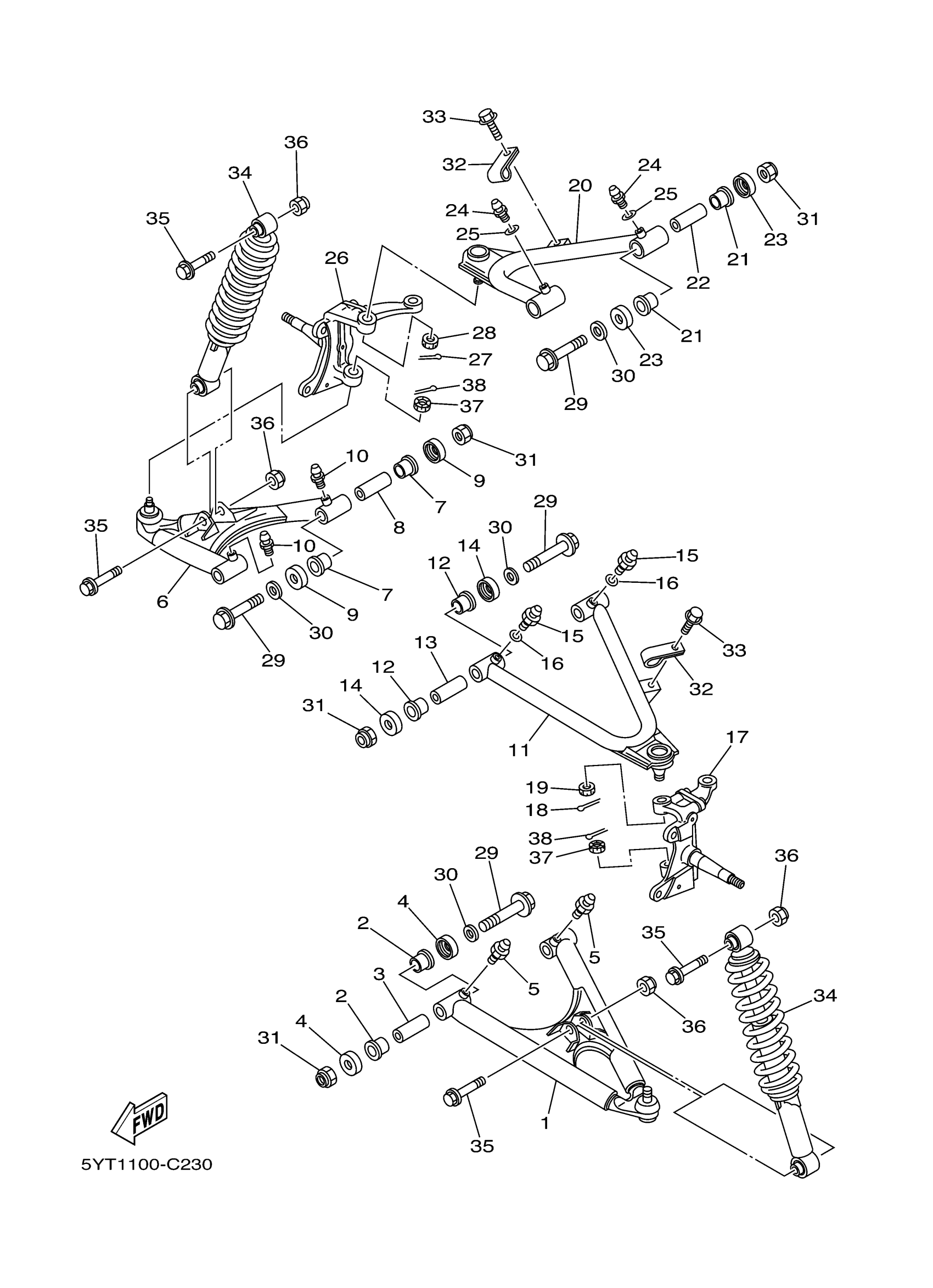

Yamaha YFM35RYW (RAPTOR 350) 5YTW0 2009 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
5
NIPPLE, GREASE
93700-06M03-00
Unavailable
10
NIPPLE, GREASE
93700-06M03-00
Unavailable
11
FRONT UPPER ARM COMP. (LEFT)
3GD-23540-10-00
Unavailable
15
NIPPLE, GREASE
93700-06M03-00
Unavailable
16
WASHER, PLATE (J22)
90201-063F3-00
Unavailable
17
STEERING KNUCKLE ASSY (LEFT)
3GD-23501-10-00
Unavailable
18
PIN, COTTER
91490-20025-00
Unavailable
19
NUT, CASTLE
90171-10001-00
Unavailable
20
FRONT UPPER ARM COMP. (RIGHT)
3GD-23550-10-00
Unavailable
24
NIPPLE, GREASE
93700-06M03-00
Unavailable
25
WASHER, PLATE (J22)
90201-063F3-00
Unavailable
26
STEERING KNUCKLE ASSY (RIGHT)
3GD-23502-10-00
Unavailable
27
PIN, COTTER
91490-20025-00
Unavailable
28
NUT, CASTLE
90171-10001-00
Unavailable
29
BOLT, FLANGE
90105-10135-00
Unavailable
30
WASHER, PLATE
90201-10037-00
Unavailable
31
NUT, SELF-LOCKING
90185-10012-00
Unavailable
32
HOLDER, BRAKE HOSE
5VM-25886-10-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
Unavailable
34
SHOCK ABSORBER ASSY
5YT-23350-30-00
Unavailable
35
BOLT, FLANGE
90105-10131-00
Unavailable
36
NUT, SELF-LOCKING
90185-10012-00
Unavailable
37
NUT, CASTLE
90171-10001-00
Unavailable
38
PIN, COTTER
91490-20025-00
Unavailable
