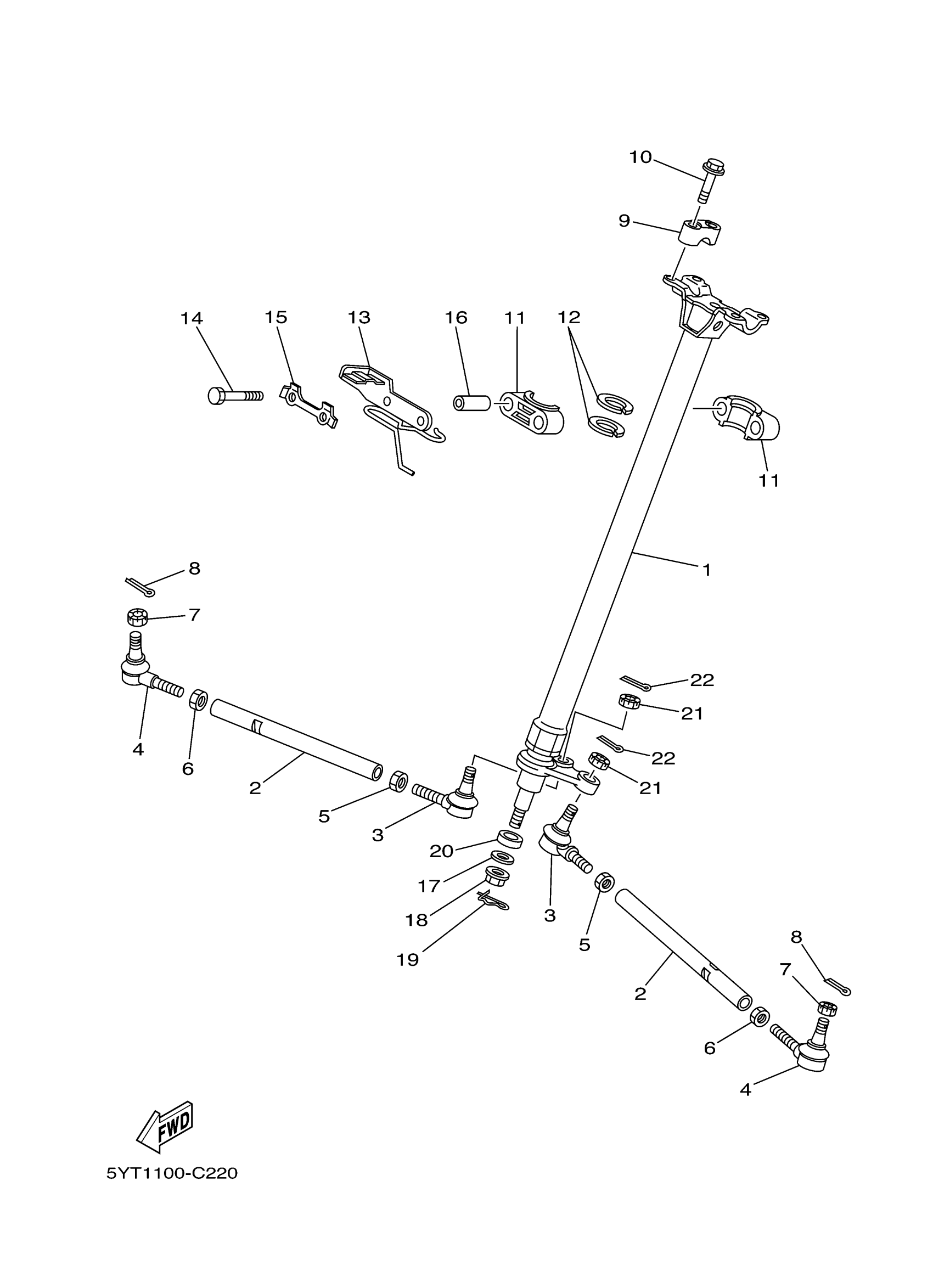

Yamaha YFM35RXL (RAPTOR 350) 5YTS0 2008 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5YT-23813-20-00

$253.02

2

ROD, TIE

3GD-23831-00-00

$20.85

3

JOINT, UNIVERSAL 1

1UY-23841-01-00

$62.23

4

JOINT, UNIVERSAL 2

1UY-23845-01-00

$62.23

5

NUT (682)

95380-10700-00

$5.27

6

NUT

90170-10010-00

$2.60

7

NUT, CASTLE

90171-10001-00

$2.66

8

PIN, COTTER

91490-20025-00

$1.23

9

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

10

BOLT, FLANGE(6TA)

95817-08030-00

$5.75

11

PLANE BEARING, STEERING

1UY-23812-00-00

$19.75

12

OIL SEAL(1UY)

93112-31011-00

$7.01

13

BRACKET, STEERING LOWER

5YT-23868-00-00

Unavailable

14

BOLT, HEXAGON

97017-08060-00

Unavailable

15

WASHER, LOCK 1

1UY-23894-01-00

$6.39

16

COLLAR(85G)

90387-106T4-00

Unavailable

17

WASHER, PLATE

90201-10036-00

Unavailable

18

NUT, SELF-LOCKING

90185-10019-00

Unavailable

19

CLIP(3YF)

90468-16191-00

Unavailable

20

COLLAR(2GU)

90387-176R6-00

Unavailable

21

NUT, CASTLE

90171-10001-00

$2.66

22

PIN, COTTER

91490-20025-00

$1.23
