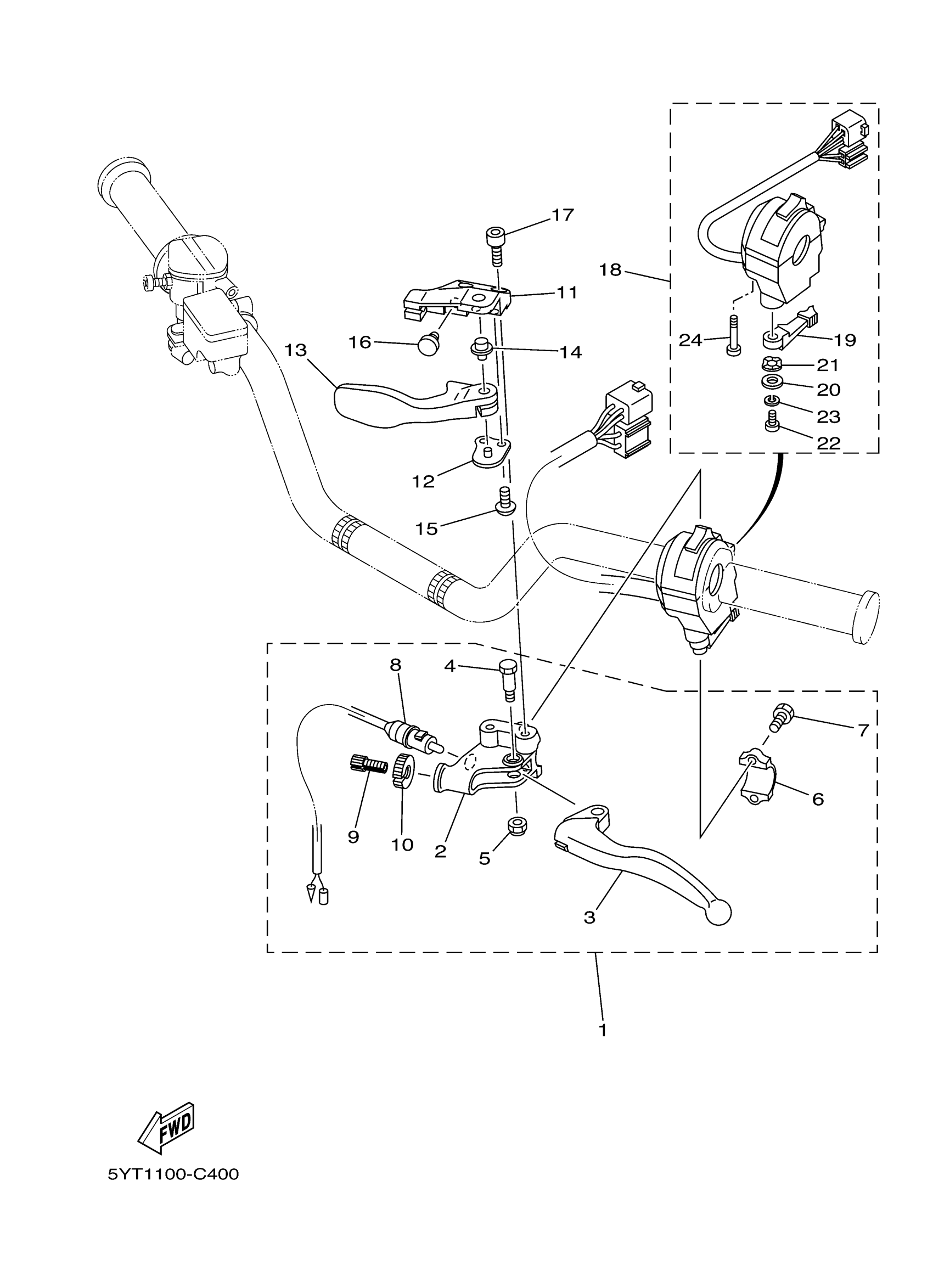

Yamaha YFM35RXL (RAPTOR 350) 5YTS0 2008 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY

5YT-82910-12-00

Unavailable

2

HOLDER, LEVER 1

5YT-82911-10-00

Unavailable

3

LEVER 1

2HT-83912-01-00

$39.99

4

BOLT(1FG)

90109-06798-00

$8.49

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

HOLDER, LEVER LOWER 1

5TG-82913-00-00

$9.99

7

BOLT(6A1)

97095-05016-00

$1.11

8

SWITCH

5KM-82917-00-00

$58.99

9

BOLT

90123-08002-00

$10.49

10

NUT

90179-08030-00

$5.49

11

BRACKET, LEVER

5TG-25727-01-00

$49.99

12

PLATE, GUIDE

5D3-25689-00-00

$7.99

13

LEVER, BRAKE

5TG-25726-01-00

$30.99

14

COLLAR, LEVER 2

5TG-83923-00-00

$14.49

15

BOLT, BUTTON HEAD

92012-06014-00

$8.49

16

PLUG

90338-07007-00

Unavailable

17

BOLT, BUTTON HEAD

92012-06014-00

$8.49

18

SWITCH, HANDLE 3

5LP-83973-02-00

Unavailable

19

LEVER, CHOKE

5GH-83941-00-00

Unavailable

20

WASHER, SPECIAL

1UY-83909-00-00

Unavailable

21

WASHER, STARTER

3L4-83943-00-00

Unavailable

22

SCREW, PAN

98517-05012-00

Unavailable

23

WASHER(3SX)

92907-05100-00

Unavailable

24

SCREW, PAN HEAD

98517-05030-00

Unavailable
