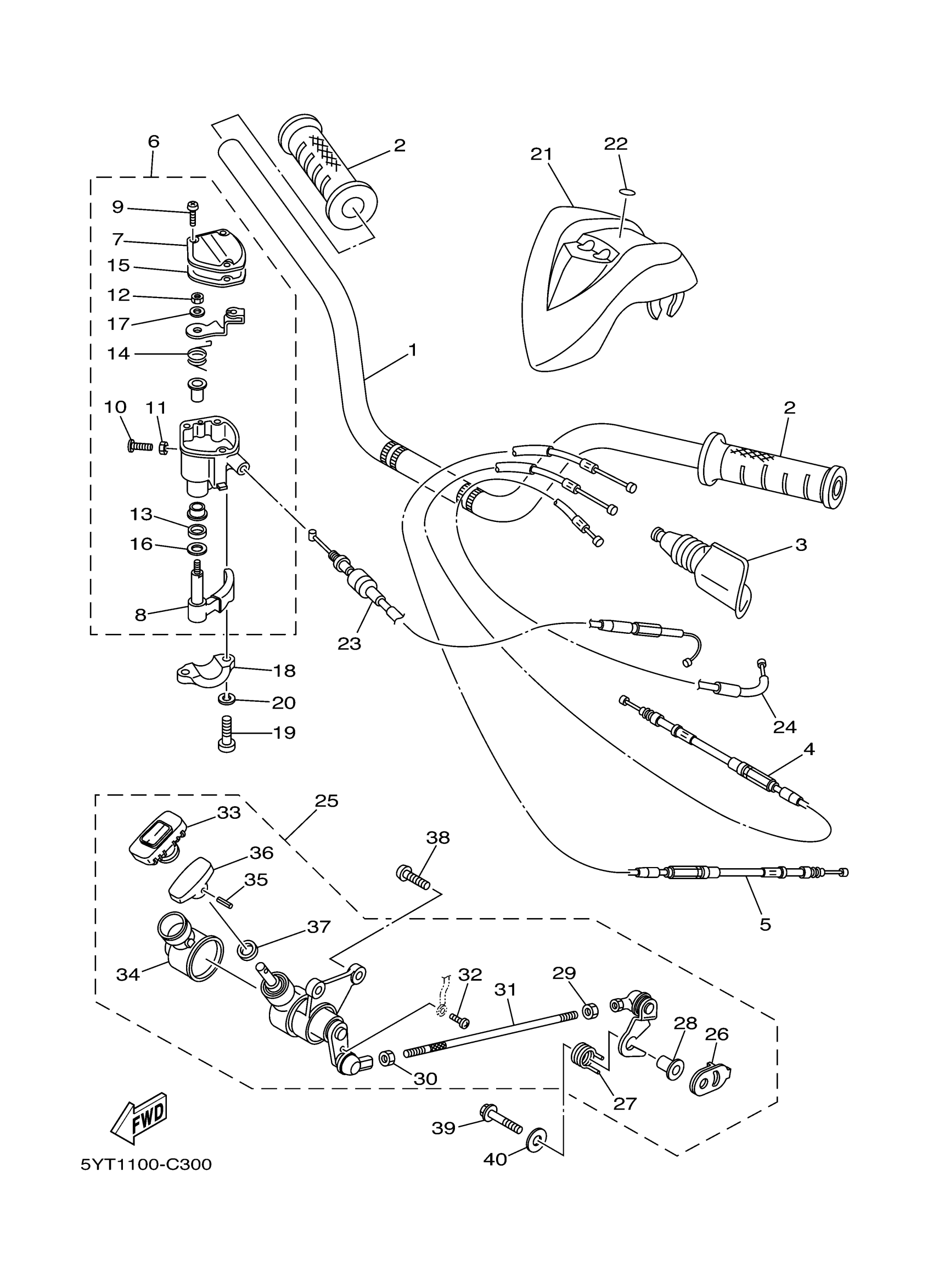

Yamaha YFM35RSEW (RAPTOR 350 SPECIAL EDITION) 5YTK 2007 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5YT-26111-10-00

$73.99

2

GRIP (LEFT)

5LP-26241-00-00

$24.99

3

COVER, HANDLE LEVER 1

31A-26372-00-00

$30.99

4

CABLE, CLUTCH

5YT-26335-10-00

$34.99

5

CABLE, BRAKE

5YT-26341-01-00

Unavailable

6

THROTTLE LEVER ASSY

4KB-26250-22-00

$162.99

7

CAP, GEAR

4KB-2628F-20-00

$36.99

8

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

9

SCREW(3HE)

90149-04278-00

$2.39

10

SCREW, PAN HEAD

98517-05020-00

$4.25

11

NUT, U

95617-05100-00

$9.49

12

NUT, HEXAGON SMALL

95317-05700-00

$8.49

13

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

14

SPRING

1NV-26304-00-00

$11.99

15

GASKET

4KB-2628G-00-00

$13.49

16

WASHER

1NV-26129-00-00

Unavailable

17

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

18

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

19

SCREW, PAN HEAD

98517-05020-00

$4.25

20

WASHER(3SX)

92907-05100-00

Unavailable

21

PROTECTOR, HANDLEBAR

5YT-26124-20-00

Unavailable

22

TUNING FORK MARK

5GT-2836B-10-00

Unavailable

23

CABLE, THROTTLE 1

5YT-26311-00-00

Unavailable

24

CABLE, STARTER 1

5YT-26331-00-00

Unavailable

25

REV. LEVER ASSY.

5YT-26150-00-00

Unavailable

26

LEVER

4SH-18198-00-00

Unavailable

27

SPRING, TORSION(1YW)

90508-35764-00

Unavailable

28

COLLAR

90387-0613B-00

Unavailable

29

NUT(JN5)

95317-06700-00

Unavailable

30

NUT (2H9)

90170-06228-00

Unavailable

31

ROD, JOINT

3GD-26166-10-00

Unavailable

32

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

33

GRIP, LEVER

1UY-26153-00-00

Unavailable

34

COVER, HANDLE LEVER 1

1UY-26372-00-00

Unavailable

35

PIN, SPRING (648)

91690-40016-00

Unavailable

36

LEVER, LOCK

1UY-26157-00-00

Unavailable

37

OIL SEAL

93109-08803-00

Unavailable

38

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

39

95812-06035

95812-06035-00

Unavailable

40

WASHER, PLATE

90201-06036-00

Unavailable
