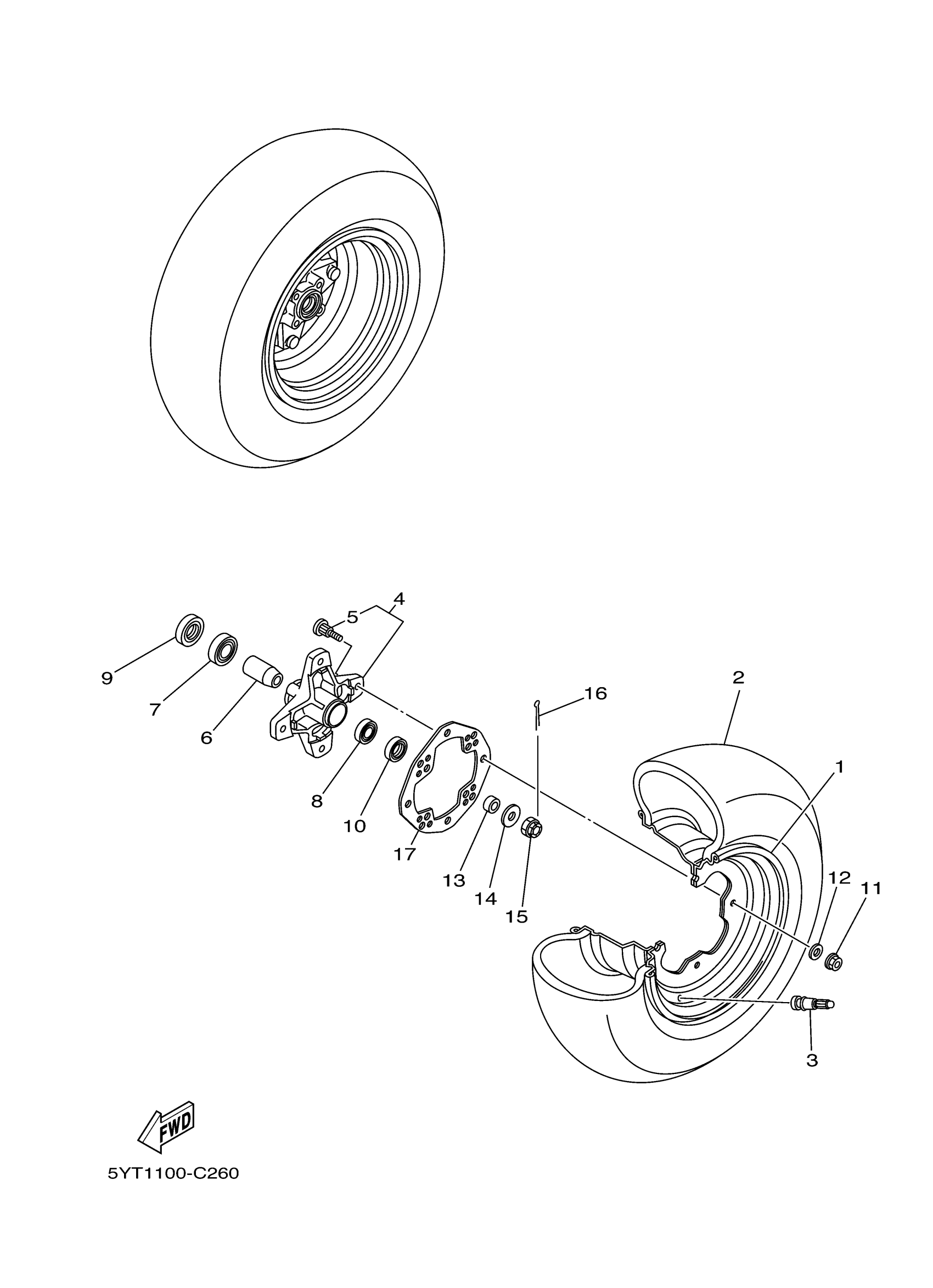

Yamaha YFM35RSEW (RAPTOR 350 SPECIAL EDITION) 5YTK 2007 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,FRONT

5LP-F5180-29-00

$274.99

2

AT21X7-10 KT851 DUNLOP

94107-10020-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

HUB, FRONT

3GD-25111-01-98

Unavailable

5

BOLT (38W)

90114-10007-00

$5.60

6

SPACER, BEARING

1UY-25117-00-00

$28.99

7

BEARING

93306-00446-00

$43.99

8

. BEARING

93306-20231-00

Unavailable

9

OIL SEAL(1UY)

93105-26026-00

$12.49

10

OIL SEAL (7H5)

93102-22216-00

$11.49

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29

12

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

13

COLLAR(1UY)

90387-150R1-00

$7.49

14

WASHER PLATE 248181370000

90201-14220-00

$8.49

15

NUT, CASTLE

90171-14002-00

$9.49

16

PIN, COTTER

91401-30025-00

Unavailable

17

COVER, PLATE

1S3-25127-01-00

Unavailable
