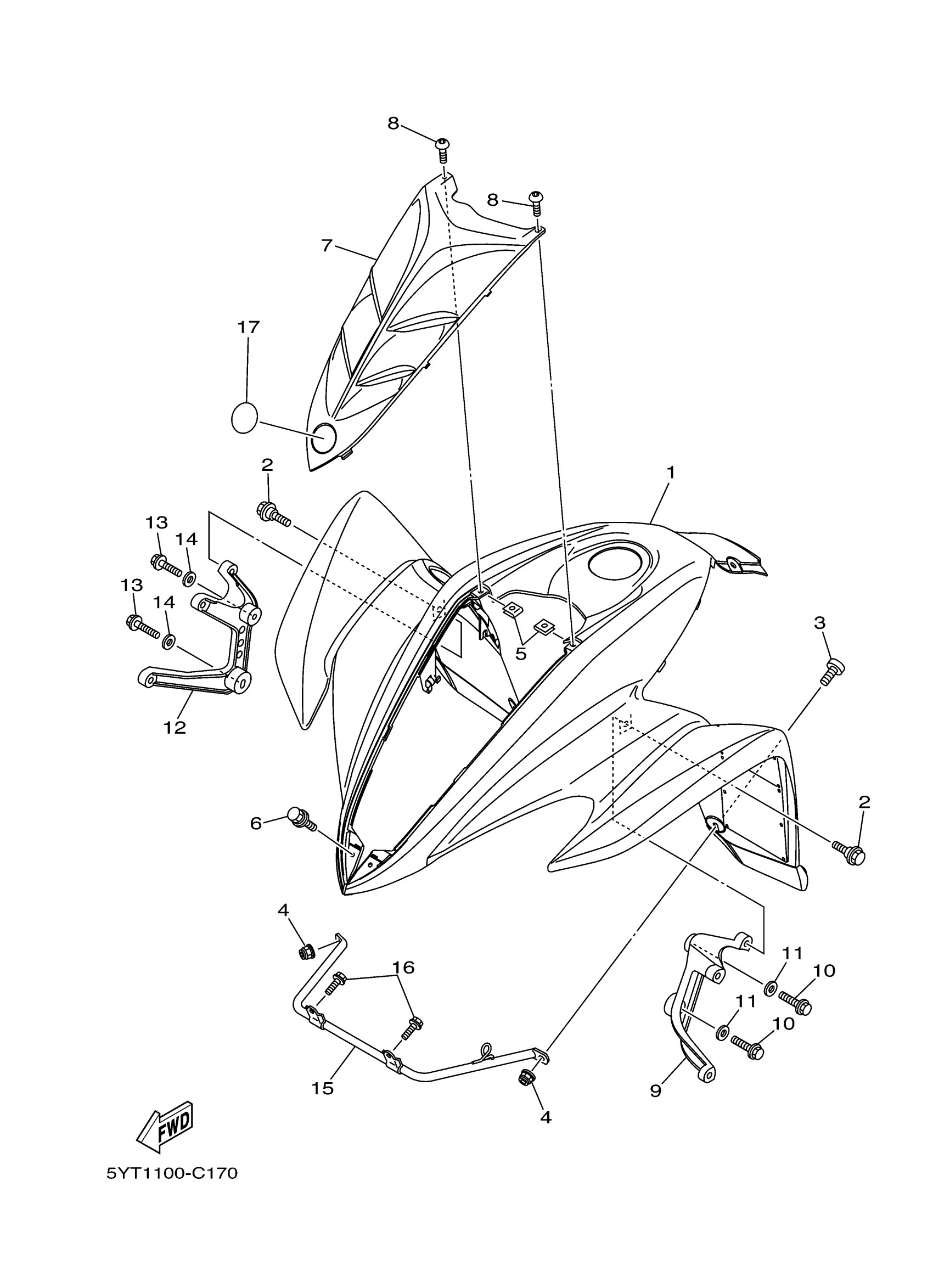

Yamaha YFM35RSEW (RAPTOR 350 SPECIAL EDITION) 5YTK 2007 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5YT-W2151-60-00

Unavailable

2

BOLT

90109-06172-00

$7.49

3

SCREW(3JM)

90149-06306-00

$8.49

4

NUT, U FLANGE

95604-06200-00

$8.49

5

NUT, SPRING

90183-05008-00

$9.49

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

PANEL, FRONT

5YT-23391-C0-00

$246.99

8

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

9

STAY, FENDER 1

5YT-21513-00-00

Unavailable

10

BOLT, FLANGE

95812-06014-00

$5.60

11

WASHER, PLATE

90201-06089-00

$4.29

12

STAY, FENDER 2

5YT-21514-00-00

$73.99

13

BOLT, FLANGE

95812-06014-00

$5.60

14

WASHER, PLATE

90201-06089-00

$4.29

15

STAY, FENDER 3

5YT-21562-00-00

Unavailable

16

BOLT, FLANGE

95812-06010-00

Unavailable

17

EMBLEM

8AC-2414B-01-00

Unavailable
