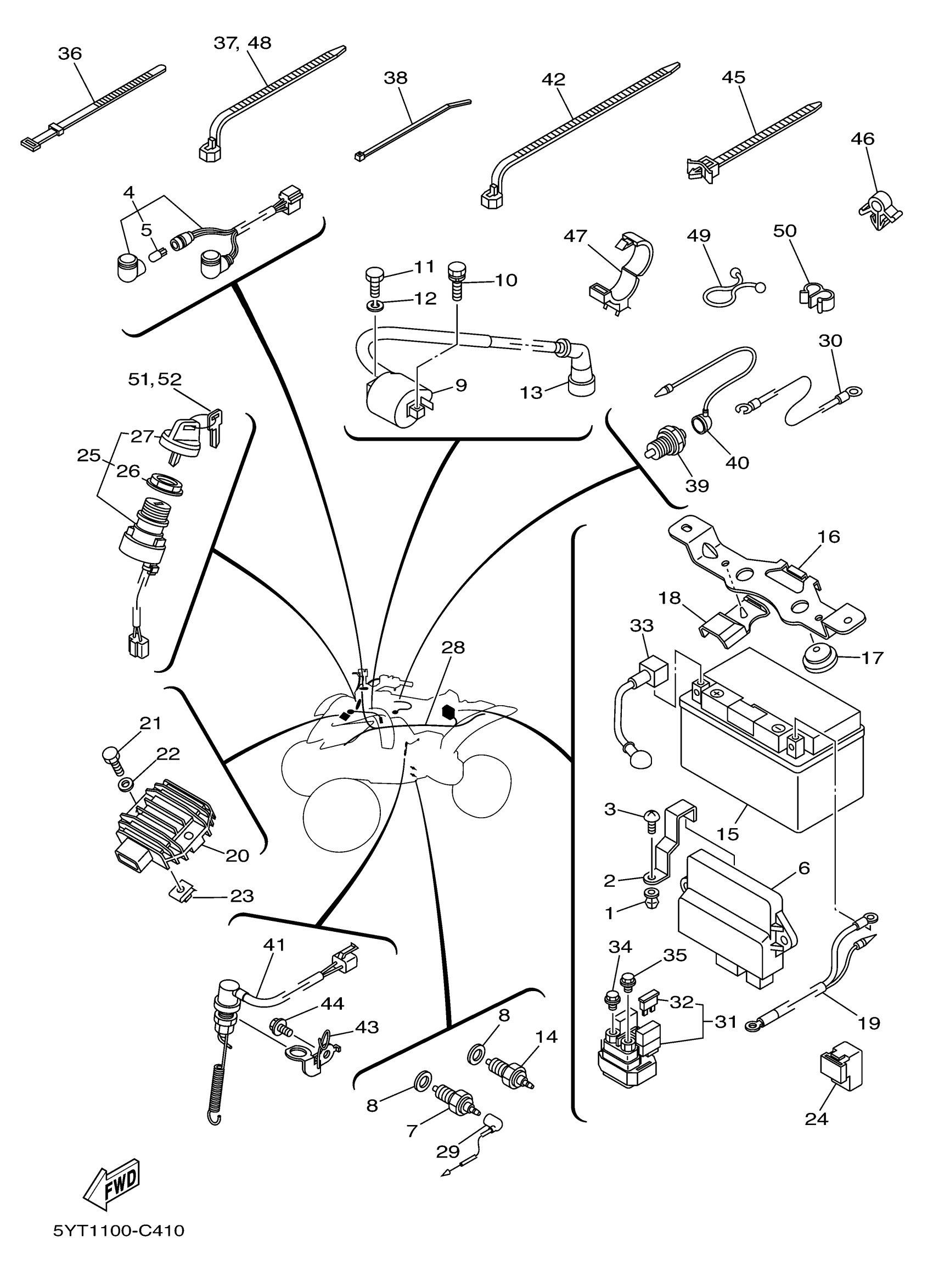

Yamaha YFM35RSEW (RAPTOR 350 SPECIAL EDITION) 5YTK 2007 ELECTRICAL 1 Diagram
#
15
BATTERY YTZ10S
YTZ-10S00-00-00
Unavailable
16
BRACKET, BATTERY
5YT-82128-00-00
Unavailable
17
PAD, BATTERY
371-82121-00-00
Unavailable
18
COVER, BATTERY
5YT-82129-00-00
Unavailable
19
WIRE, MINUS LEAD
5YT-82116-00-00
Unavailable
20
RECTIFIER & REGULATOR ASSY
5GT-81960-00-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
WASHER(6TA)
92907-06600-00
Unavailable
23
NUT, SPRING
90183-061A1-00
Unavailable
24
RELAY ASSY (3GD-01)
3GD-81950-01-00
Unavailable
25
MAIN SWITCH ASSY
5LP-82510-01-00
Unavailable
26
NUT, MAIN SWITCH
3HN-82569-00-00
Unavailable
27
CAP, KEY
3HN-82579-00-00
Unavailable
28
WIRE HARNESS ASSY
5YT-82590-00-00
Unavailable
29
WIRE, LEAD
5YT-82541-00-00
Unavailable
30
WIRE, SUB LEAD
3GD-82509-10-00
Unavailable
31
STARTER RELAY ASSY (RC19-45)
1D0-81940-02-00
Unavailable
32
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
33
WIRE, PLUS LEAD
5YT-82115-00-00
Unavailable
34
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
35
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
36
BAND, SWITCH CORD
437-83936-01-00
Unavailable
37
CLAMP(4FM)
90464-15195-00
Unavailable
38
CLAMP
90465-10098-00
Unavailable
39
NEUTRAL SWITCH ASSY
4KD-82540-00-00
Unavailable
40
WIRE, LEAD
5YT-82507-00-00
Unavailable
41
STOP SWITCH ASSY
5NF-82530-00-00
Unavailable
42
CLAMP(4FM)
90464-15195-00
Unavailable
43
STAY, STOP SWITCH
5YT-2144G-00-00
Unavailable
44
BOLT, FLANGE
95817-06010-00
Unavailable
45
CLAMP(2TV)
90464-10112-00
Unavailable
46
CLAMP(3XV)
90464-15157-00
Unavailable
47
CLAMP
90464-30252-00
Unavailable
48
CLAMP(4FM)
90464-15195-00
Unavailable
49
CLAMP
90465-18147-00
Unavailable
50
CLIP(33M)
90468-15139-00
Unavailable
51
KEY, BLANK (A-TYPE)
90890-56001-00
Unavailable
52
KEY, BLANK (B-TYPE)
90890-56002-00
Unavailable
