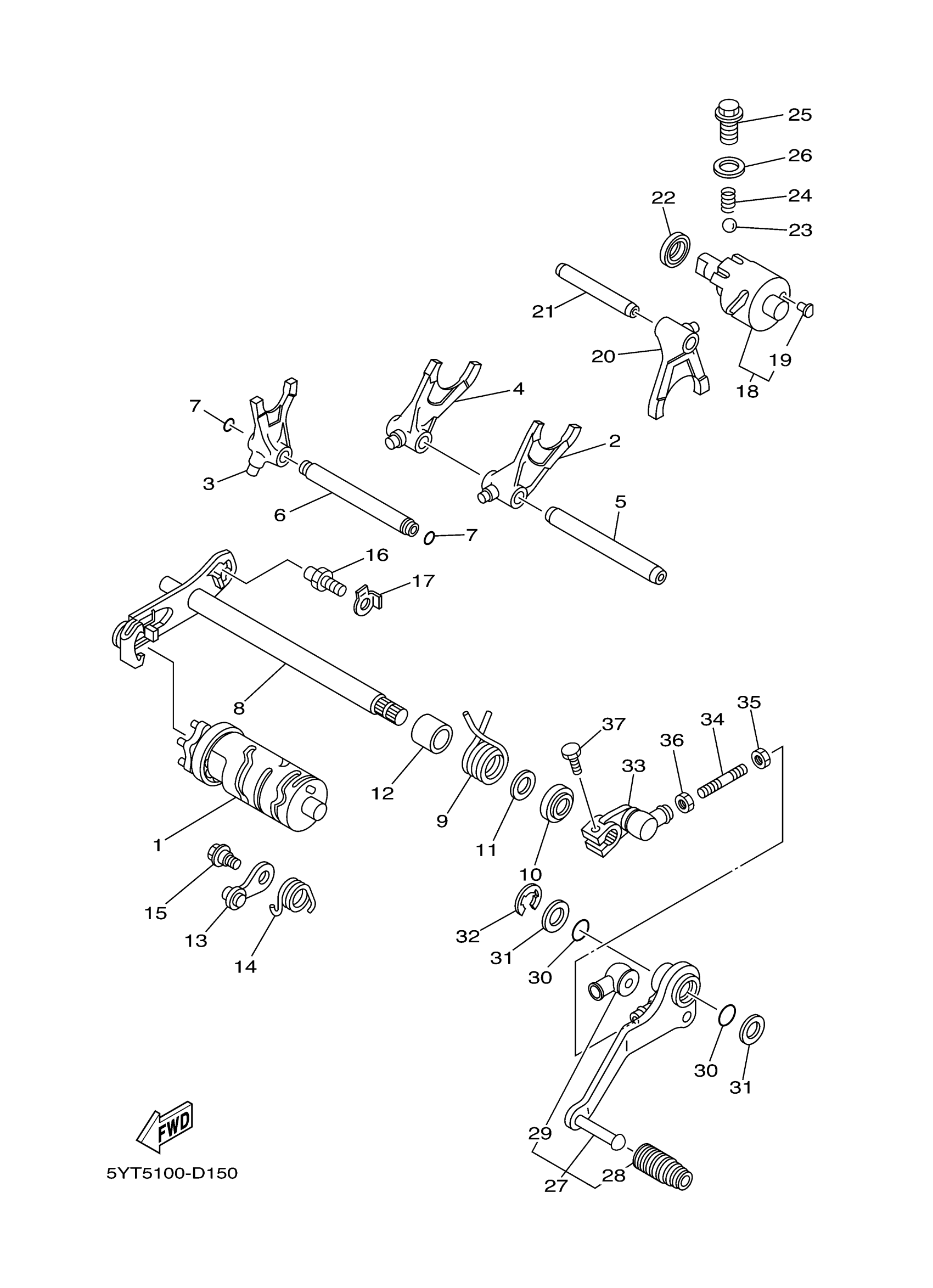

Yamaha YFM35RSE2W (RAPTOR 350 SPECIAL EDITION 2) 5YTN 2007 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

5YT-18540-00-00

Unavailable

2

FORK, SHIFT 1

1YW-18511-00-00

$74.99

3

FORK, SHIFT 2

4GB-18512-00-00

Unavailable

4

FORK, SHIFT 3

1UY-18513-00-00

Unavailable

5

BAR, SHIFT FORK GUIDE 2

4TR-18535-00-00

Unavailable

6

BAR, SHIFT FORK GUIDE 1

4GB-18531-00-00

$18.49

7

O-RING (21V)

93210-07590-00

Unavailable

8

SHIFT SHAFT ASSY

1UY-18101-02-00

$92.99

9

SPRING, TORSION(1UY)

90508-32711-00

Unavailable

10

OIL SEAL (3Y1)

93102-14209-00

$11.49

11

WASHER, PLATE(52G)

90201-144J2-00

$8.49

12

SPACER(1UY)

90560-14284-00

Unavailable

13

STOPPER LEVER ASSY

1UY-18140-00-00

Unavailable

14

SPRING, TORSION(1UY)

90508-25712-00

$7.49

15

BOLT

90109-06190-00

$4.72

16

STOPPER, SCREW

5VK-18127-00-00

Unavailable

17

WASHER, LOCK(1UY)

90215-08260-00

Unavailable

18

SHIFTER ASSY

3GD-18420-00-00

Unavailable

19

POINT, NEUTRAL

3GH-18542-00-00

Unavailable

20

FORK, SHIFT 1

1UY-18311-00-00

Unavailable

21

BAR, SHIFT FORK GUIDE 1

2A6-18531-00-00

Unavailable

22

OIL SEAL (3X3)

93102-15212-00

Unavailable

23

BALL

93503-08007-00

Unavailable

24

SPRING, COMPRESSION (465)

90501-10353-00

Unavailable

25

BOLT, FLANGE

90105-14003-00

Unavailable

26

GASKET(59V)

90430-14194-00

Unavailable

27

SHIFT PEDAL ASSY

5YT-18110-10-00

Unavailable

28

COVER, SHIFT PEDAL

5YT-18113-00-00

Unavailable

29

COVER, DUST

2H9-18154-00-00

Unavailable

30

O-RING (22U)

93210-15566-00

Unavailable

31

WASHER, PLATE

90201-15018-00

Unavailable

32

CIRCLIP (122)

93430-12008-00

Unavailable

33

ARM, SHIFT

1UY-18112-10-00

Unavailable

34

ROD, SHIFT

1JN-18115-00-00

Unavailable

35

NUT (2H9)

90170-06228-00

Unavailable

36

NUT(650)

95380-06700-00

Unavailable

37

BOLT, HEXAGON

97017-06020-00

Unavailable
