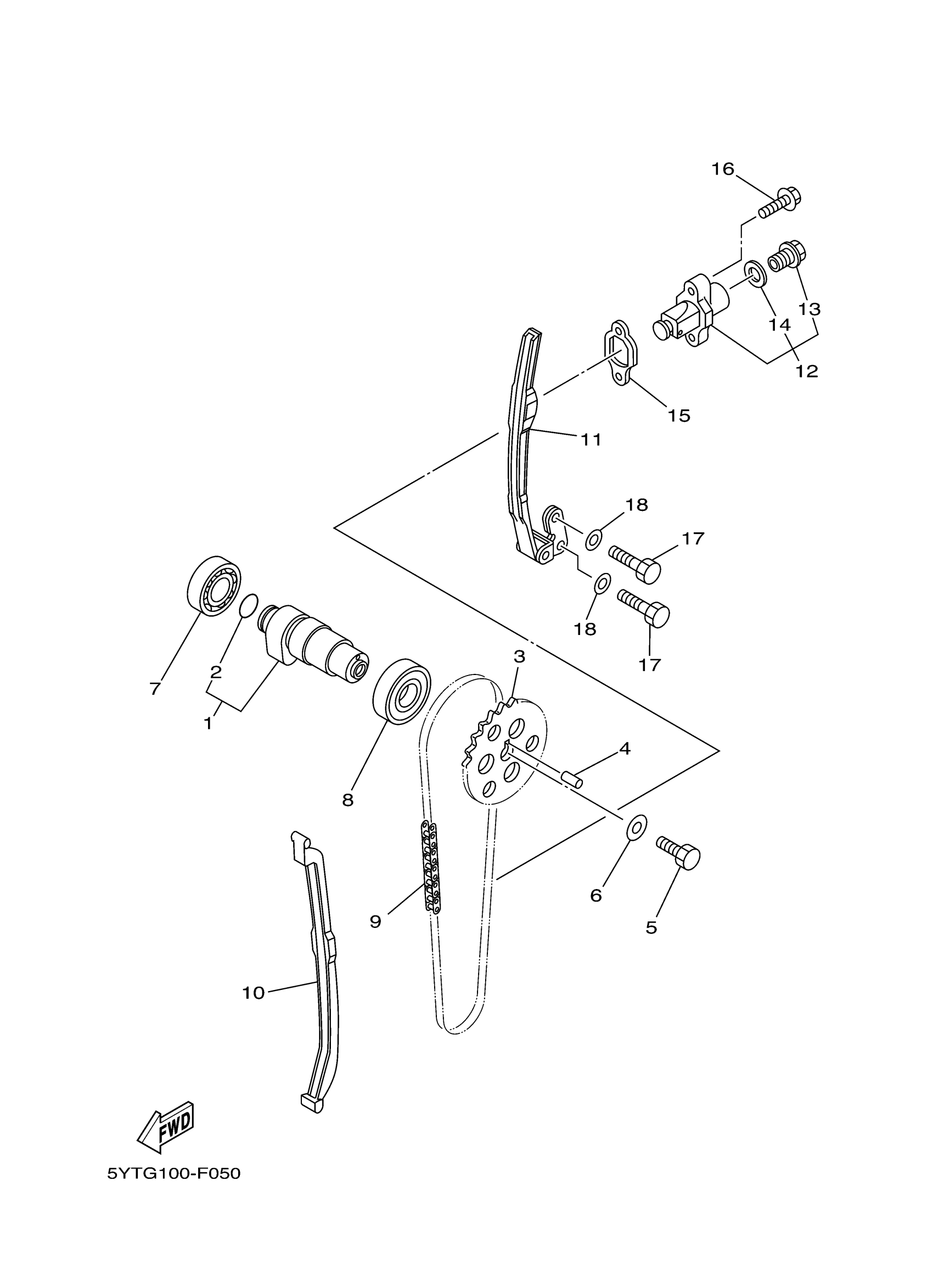

Yamaha YFM35RSE2W (RAPTOR 350 SPECIAL EDITION 2) 5YTN 2007 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

5UH-12170-10-00

Unavailable

. O-RING

93210-17003-00

Unavailable

SPROCKET, CAM CHAIN

5YT-12176-00-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT (583)

90101-10303-00

$9.49

WASHER, PLATE (3L6)

90201-10774-00

$9.49

BEARING(3BN)

93306-00438-00

$37.99

BEARING(1FF)

93306-00519-00

$36.99

CHAIN, CAM SHAFT (3Y1)

94500-02090-00

$68.99

GUIDE, STOPPER 1

3Y1-12231-01-00

$41.99

GUIDE, STOPPER 2

1UY-12241-01-00

Unavailable

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

PLUG

31G-12222-00-00

$24.99

GASKET, TENSIONER

31G-12214-00-00

$14.49

GASKET, TENSIONER CASE

3GD-12213-00-00

$6.99

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

BOLT, HEXAGON

97017-06016-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable
