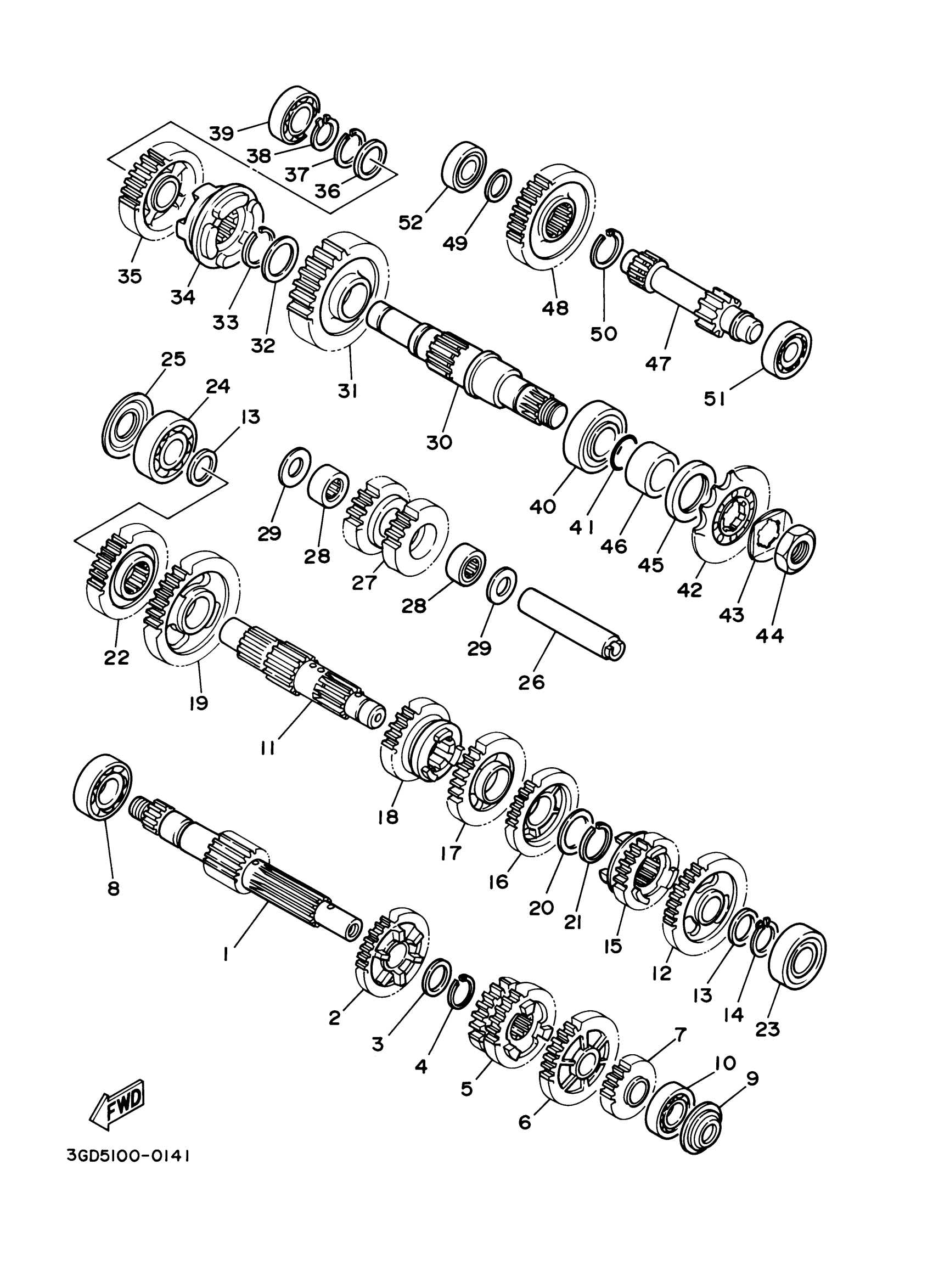

Yamaha YFM35RDW (RAPTOR 350) 1BS9 2013 TRANSMISSION Diagram
#
1
MAIN AXLE ASSY
1UY-17401-01-00
Unavailable
2
GEAR, 5TH PINION
1UY-17151-00-00
Unavailable
5
GEAR, 3RD PINION
1UY-17131-00-00
Unavailable
7
GEAR, 2ND PINION
1UY-17121-00-00
Unavailable
12
GEAR, 2ND WHEEL
5YT-17221-00-00
Unavailable
13
WASHER, PLATE (5N0)
90201-203E7-00
Unavailable
15
GEAR, 6TH WHEEL
5YT-17261-00-00
Unavailable
16
GEAR, 4TH WHEEL
1UY-17241-00-00
Unavailable
17
GEAR, 3RD WHEEL
1UY-17231-01-00
Unavailable
18
GEAR, 5TH WHEEL
1UY-17251-00-00
Unavailable
19
GEAR, 1ST WHEEL
1UY-17211-00-00
Unavailable
20
WASHER, PLATE (5F7)
90201-256E6-00
Unavailable
21
CIRCLIP (4L0)
93440-25084-00
Unavailable
22
GEAR, HIGH PINION
1UY-17123-00-00
Unavailable
23
BEARING(1YW)
93306-20461-00
Unavailable
24
BEARING
93306-30443-00
Unavailable
25
OIL SEAL (4X7)
93104-20068-00
Unavailable
26
AXLE, IDLE
1UY-17432-01-00
Unavailable
27
GEAR, HIGH WHEEL
1UY-17223-02-00
Unavailable
28
BEARING
93311-41587-00
Unavailable
29
WASHER, PLATE(3GD)
90201-150U6-00
Unavailable
30
SHAFT
1UY-17523-00-00
Unavailable
31
GEAR, REVERSE WHEEL 2
1UY-17253-00-00
Unavailable
32
WASHER, GEAR HOLD 1
4A0-17116-00-10
Unavailable
33
CIRCLIP (2H7)
93440-28062-00
Unavailable
34
CLUTCH, DOG
1UY-17285-00-00
Unavailable
35
GEAR, MIDDLE DRIVE
1UY-17582-00-00
Unavailable
36
WASHER, PLATE (3Y1)
90201-22793-00
Unavailable
39
BEARING (34L)
93306-00431-00
Unavailable
40
BEARING (3Y1)
93306-20541-00
Unavailable
41
O-RING
93210-22298-00
Unavailable
42
SPROCKET, DRIVE (13T)(4RF)
93834-13206-00
Unavailable
43
WASHER, LOCK (23X)
90215-21239-00
Unavailable
44
NUT (2K7)
90179-20255-00
Unavailable
45
OIL SEAL(1UY)
93102-35393-00
Unavailable
46
COLLAR
90387-257N4-00
Unavailable
47
AXLE, COUNTER
1UY-17431-00-00
Unavailable
48
GEAR, REVERSE WHEEL1
1UY-17243-00-00
Unavailable
49
WASHER, PLATE (30X)
90201-177G4-00
Unavailable
50
CIRCLIP (4L0)
93440-25084-00
Unavailable
52
BEARING(2JN)
93306-00315-00
Unavailable
