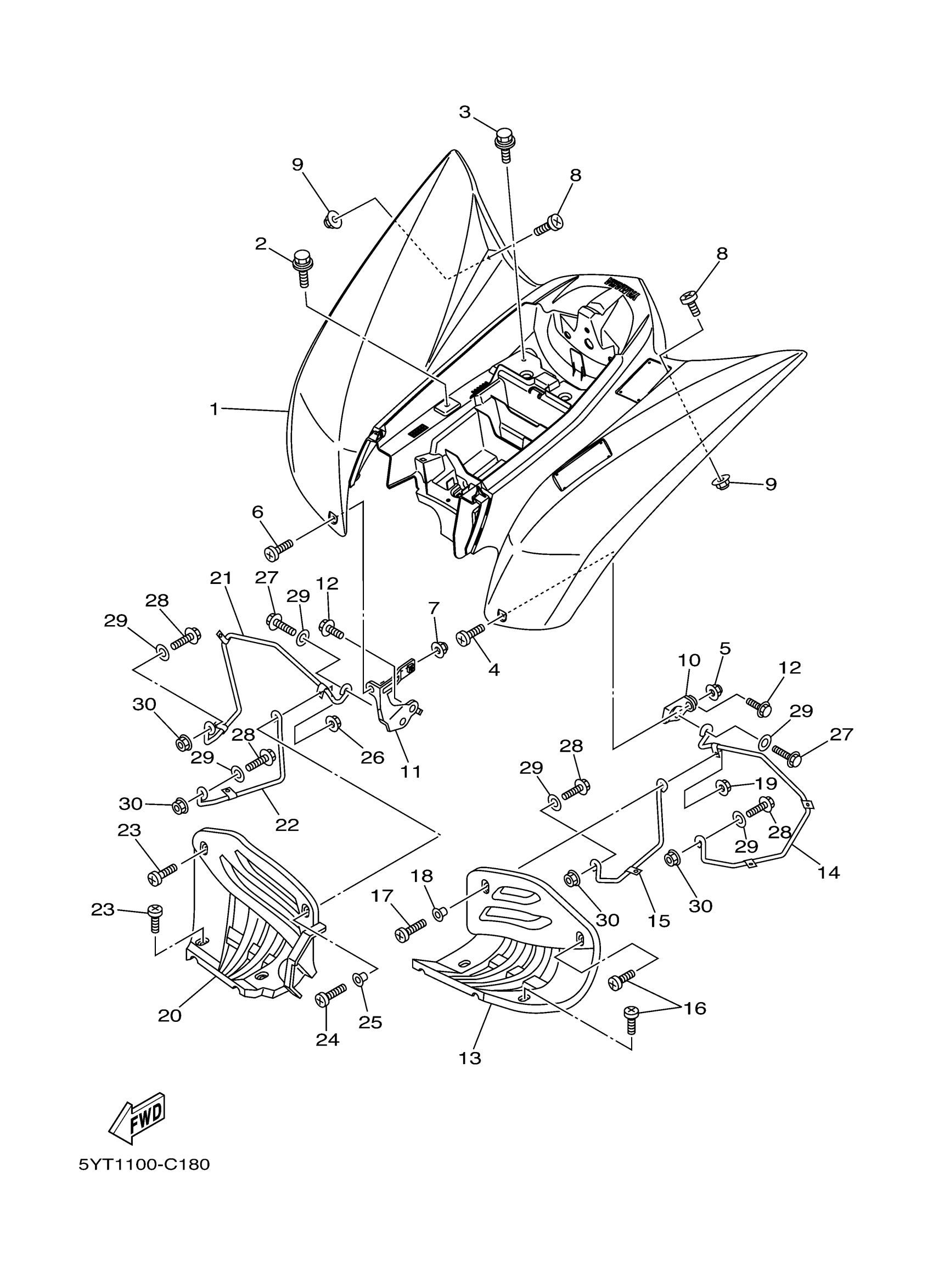

Yamaha YFM35RDW (RAPTOR 350) 1BS9 2013 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER COMP. (BLUISH WHITE SOLID 1)
5YT-W2161-11-00
Unavailable
10
STAY, FENDER 1
5YT-21613-10-00
Unavailable
16
SCREW, BINDING
90154-05043-00
Unavailable
17
SCREW, BINDING
90154-06031-00
Unavailable
18
COLLAR (420)
90387-06241-00
Unavailable
20
FLAP
5LP-21691-00-00
Unavailable
21
STAY 2
5YT-2164G-10-00
Unavailable
22
STAY 4
5YT-2164J-10-00
Unavailable
23
SCREW, BINDING
90154-05043-00
Unavailable
24
SCREW, BINDING
90154-06031-00
Unavailable
25
COLLAR (420)
90387-06241-00
Unavailable
27
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
28
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
29
WASHER, PLATE
90201-08048-00
Unavailable
30
NUT, SELF-LOCKING
95602-08200-00
Unavailable
