Description

Price

1

WHEEL COMP.

1S3-25180-00-YX

$265.99

2

TIRE (AT21X7-10 DI-K158B T/L)

94107-10028-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

HUB, FRONT

3GD-25111-20-00

Unavailable

5

BOLT, SERRATION

90114-10006-00

$5.60

6

SPACER, BEARING

1UY-25117-00-00

$28.99

7

BEARING

93306-00446-00

$43.99

8

. BEARING

93306-20231-00

Unavailable

9

OIL SEAL(1UY)

93105-26026-00

$12.49

10

OIL SEAL (7H5)

93102-22216-00

$11.49

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29

12

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

13

COLLAR(1UY)

90387-150R1-00

$7.49

14

WASHER PLATE 248181370000

90201-14220-00

$8.49

15

NUT, CASTLE

90171-14002-00

$9.49

16

PIN, COTTER

91401-30025-00

Unavailable

17

COVER, PLATE

1S3-25127-01-00

Unavailable

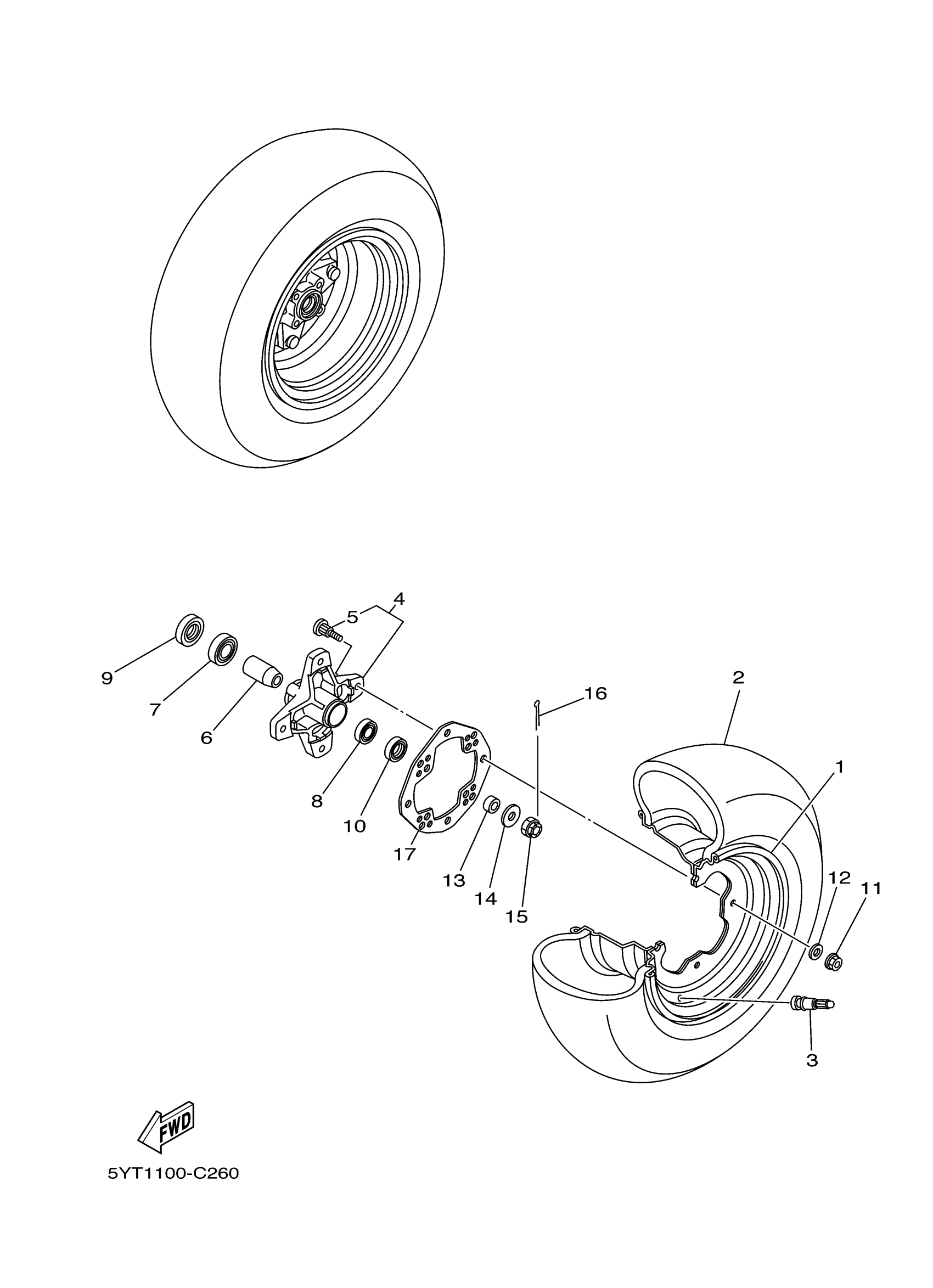

Yamaha YFM35RDW (RAPTOR 350) 1BS9 2013 FRONT WHEEL Diagram

WHEEL COMP.

TIRE (AT21X7-10 DI-K158B T/L)

VALVE, RIM(2GH)

HUB, FRONT

BOLT, SERRATION

SPACER, BEARING

BEARING

. BEARING

OIL SEAL(1UY)

OIL SEAL (7H5)

NUT, FLANGE(3BM)

958-69527-00 WASHER, PLAIN

COLLAR(1UY)

WASHER PLATE 248181370000

NUT, CASTLE

PIN, COTTER

COVER, PLATE
