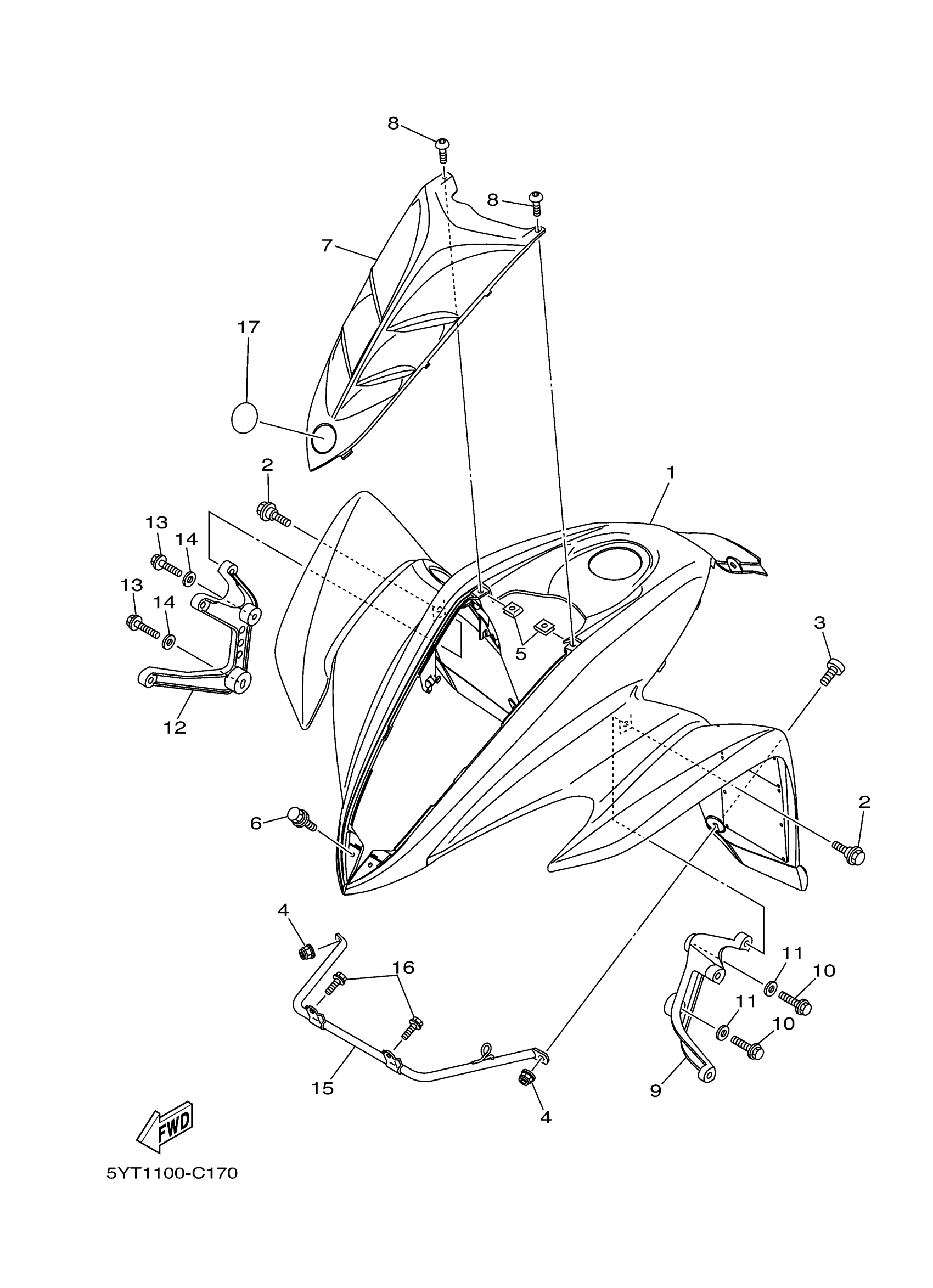

Yamaha YFM35RDW (RAPTOR 350) 1BS9 2013 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (BLUISH WHITE SOLID 1)

5YT-W2151-12-00

Unavailable

2

BOLT

90109-06172-00

$2.53

3

SCREW, BINDING

90154-06032-00

$1.85

4

NUT, U FLANGE

95604-06200-00

$2.19

5

NUT, SPRING

90183-05008-00

$6.22

6

BOLT, WITH WASHER

90119-06152-00

$2.56

7

PANEL, FRONT

5YT-23391-40-00

Unavailable

8

BOLT,HEX. SOCKET BUTTON

90111-05044-00

$6.18

9

STAY, FENDER 1

5YT-21513-00-00

Unavailable

10

BOLT, FLANGE

95812-06014-00

$5.08

11

WASHER, PLATE

90201-06089-00

$2.52

12

STAY, FENDER 2

5YT-21514-00-00

$59.27

13

BOLT, FLANGE

95812-06014-00

$5.08

14

WASHER, PLATE

90201-06089-00

$2.52

15

STAY, FENDER 3

5YT-21562-00-00

Unavailable

16

BOLT, FLANGE

95812-06010-00

Unavailable

17

EMBLEM

8AC-2414B-01-00

Unavailable
