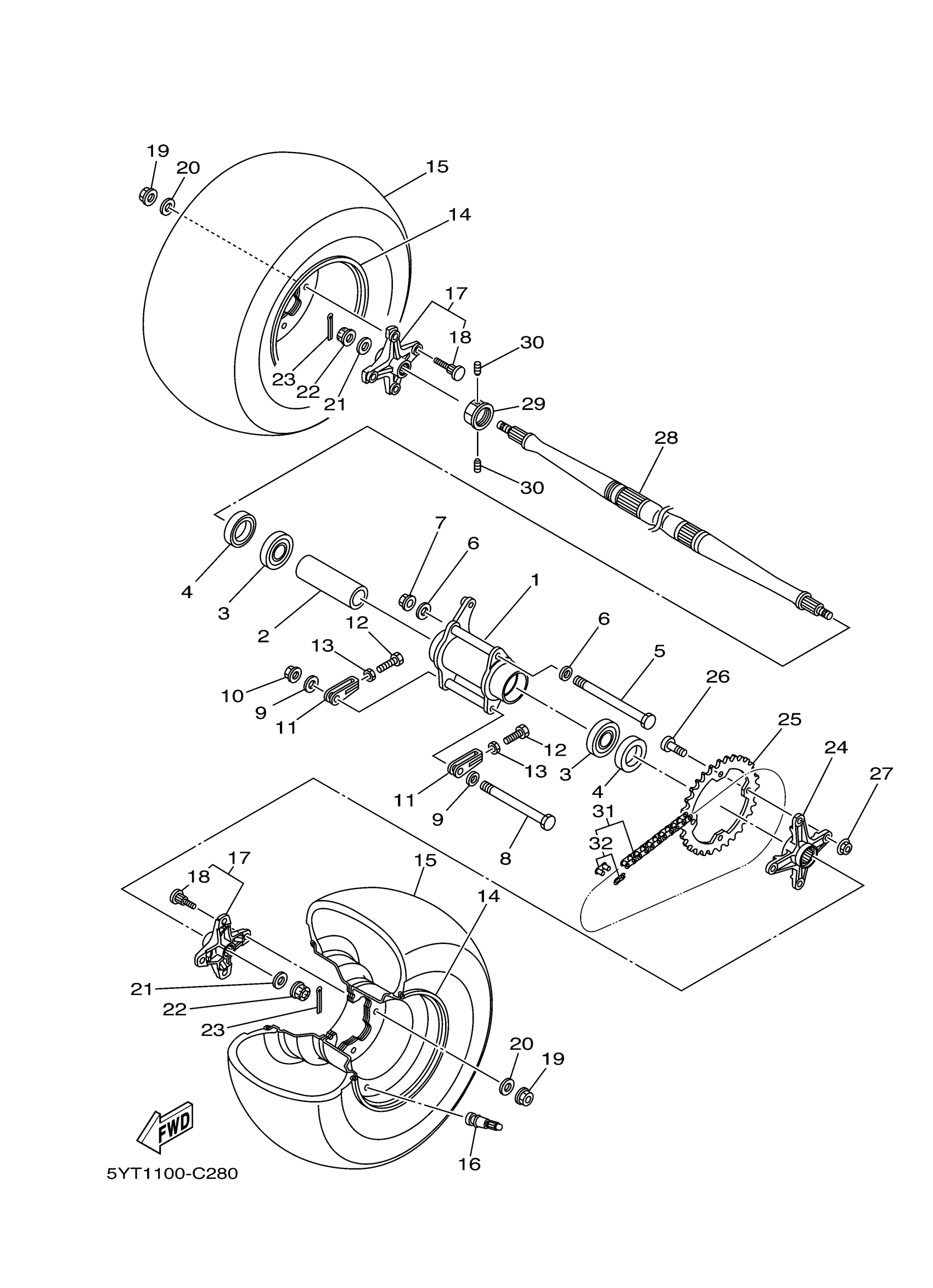

Yamaha YFM35RAL (RAPTOR 350) 1BS4 2011 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5YT-25311-00-00

$440.09

2

SPACER, BEARING

5YT-25317-00-00

$36.30

3

BEARING

93306-00710-00

$42.97

4

OIL SEAL

93106-46001-00

$11.85

5

BOLT

90101-12032-00

$8.95

6

WASHER, PLATE

90201-12045-00

$4.81

7

NUT

90179-12009-00

$2.45

8

BOLT

90101-10029-00

$7.05

9

WASHER, PLATE

90201-10052-00

$5.86

10

NUT

90179-10024-00

$8.20

11

PULLER, CHAIN 1

3GD-25388-00-00

$18.52

12

BOLT

90101-08006-00

$6.28

13

NUT

95302-08600-00

$6.47

14

REAR WHEEL COMP.

1S3-25390-00-YX

$280.83

15

TIRE (AT20X10-9 DI-K778A T/L)

94110-09028-00

$142.87

16

VALVE, RIM(2GH)

93900-00030-00

Unavailable

17

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

Unavailable

18

BOLT, SERRATION

90114-10013-00

Unavailable

19

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

20

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

21

WASHER, PLATE

90201-14021-00

Unavailable

22

NUT, CASTLE

90171-14004-00

Unavailable

23

PIN, COTTER

91490-30030-00

Unavailable

24

COLLAR, SPROCKET AXLE

5YT-25386-00-00

Unavailable

25

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

Unavailable

26

BOLT

90109-10013-00

Unavailable

27

NUT, SELF-LOCKING

90185-10011-00

Unavailable

28

AXLE, WHEEL

5YT-F5381-19-00

Unavailable

29

NUT

90170-33010-00

Unavailable

30

BOLT, SET (8K2)

90113-06039-00

Unavailable

31

CHAIN

9Y581-87097-00

Unavailable

32

JOINT, CHAIN

94681-87011-00

Unavailable
