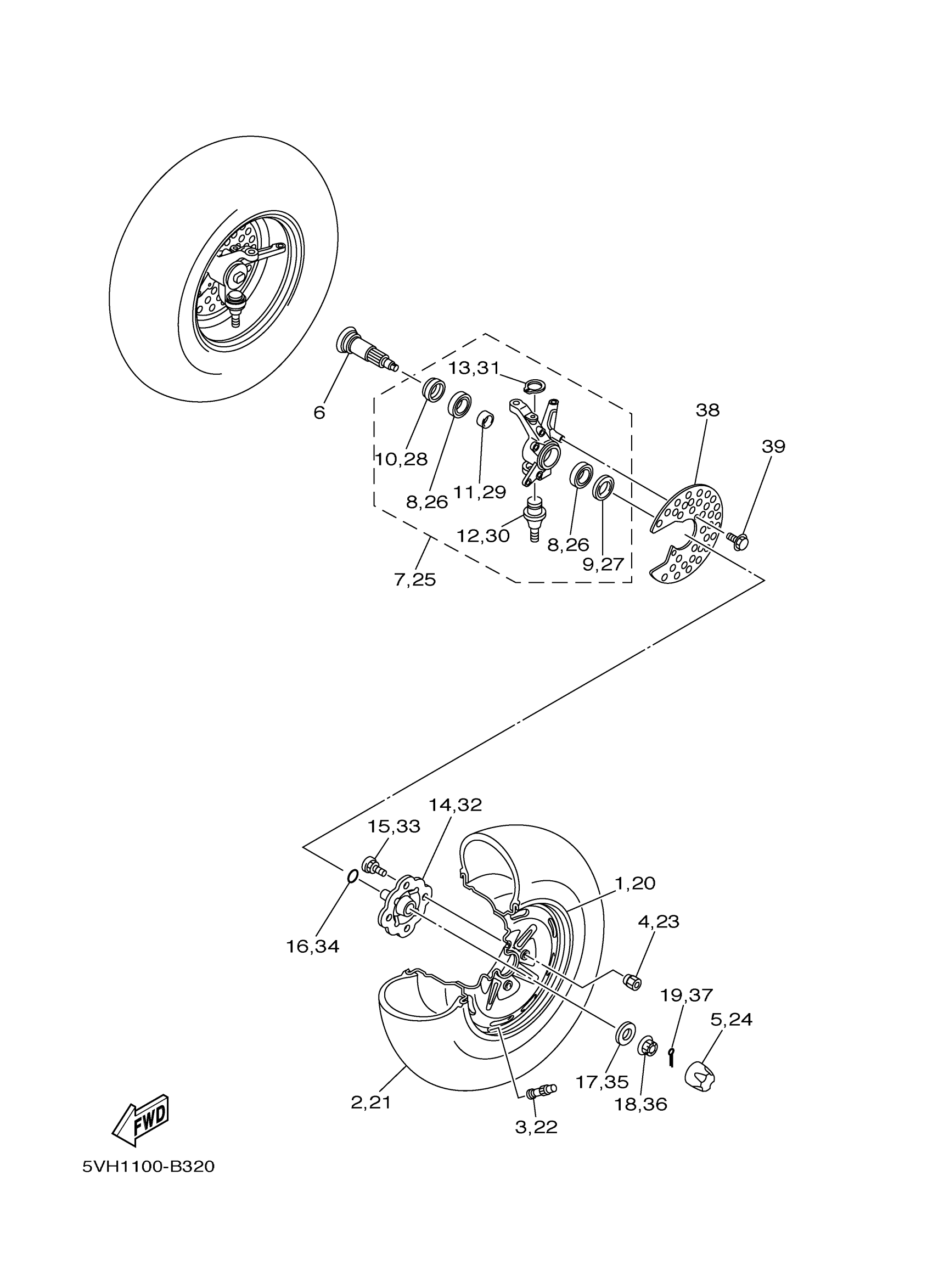

Yamaha YFM35GXR (GRIZZLY 350 2WD) 5WHD1 2008 FRONT WHEEL Diagram
#
Description
Price
1
WHEEL COMP.
5ND-F5180-21-00
Unavailable
2
TIRE (AT25X8-12 M979)
94108-12812-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
6
AXLE, WHEEL
5HA-25181-00-00
Unavailable
7
STEERING KNUCKLE A
5ND-F3501-11-00
Unavailable
14
HUB,FRONT
5ND-F5111-30-00
Unavailable
16
O-RING(47X)
93210-27666-00
Unavailable
17
WASHER, PLATE
90201-16804-00
Unavailable
18
NUT, CASTLE
90171-16002-00
Unavailable
19
PIN, COTTER
91490-30030-00
Unavailable
20
WHEEL COMP.
5ND-F5180-21-00
Unavailable
21
TIRE (AT25X8-12 M979)
94108-12812-00
Unavailable
22
VALVE, RIM
93900-00812-00
Unavailable
25
STEERING KNUCKLE A
5ND-F3502-11-00
Unavailable
32
HUB,FRONT
5ND-F5111-30-00
Unavailable
34
O-RING(47X)
93210-27666-00
Unavailable
35
WASHER, PLATE
90201-16804-00
Unavailable
36
NUT, CASTLE
90171-16002-00
Unavailable
37
PIN, COTTER
91490-30030-00
Unavailable
38
RING, WHEEL 1 (LEF
5ND-F514A-00-00
Unavailable
39
BOLT, FLANGE
95817-06012-00
Unavailable
