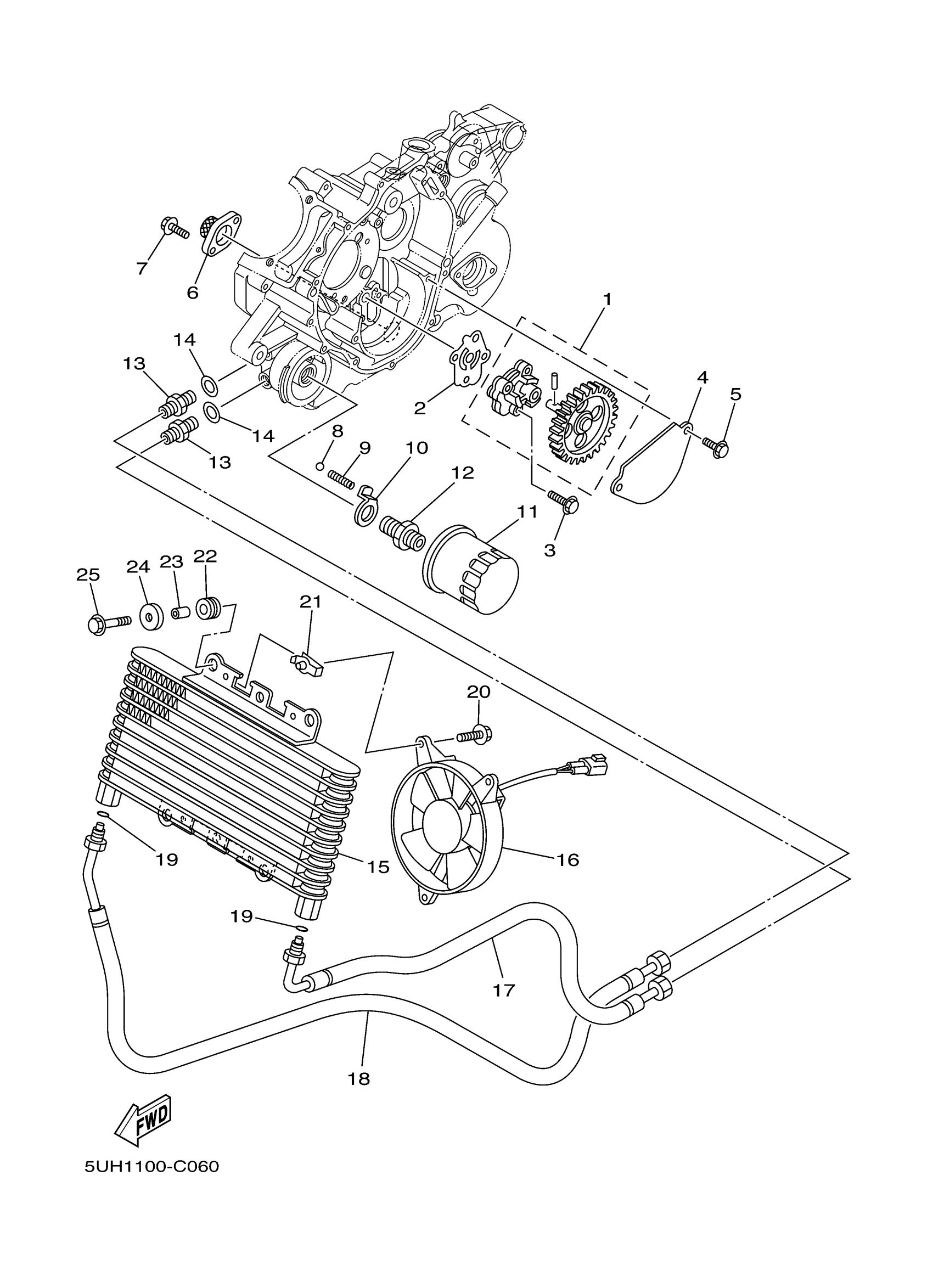

Yamaha YFM35GXL (GRIZZLY 350 2WD) 5WHD0 2008 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5UH-13300-00-00

$93.45

2

GASKET, PUMP COVER

5UH-13329-00-00

$6.46

3

BOLT, FLANGE

95022-06025-00

$1.46

4

COVER, PUMP GEAR

5UH-13327-00-00

$3.08

5

BOLT, FLANGE

95022-06012-00

$3.00

6

STRAINER, OIL

5UH-13411-00-00

$8.03

7

BOLT, FLANGE

90105-05016-00

$4.38

8

BALL

93505-16006-00

$2.22

9

SPRING, COMPRESSION(52G)

90501-101A7-00

$5.70

10

PLATE

5UH-1319K-00-00

$1.37

11

ELEMENT ASSY, OIL

5GH-13440-90-00

$9.69

12

BOLT, UNION

90401-20007-00

$16.14

13

JOINT

1S3-13132-00-00

$13.85

14

GASKET 256131670000

90430-14043-00

$6.46

15

ELEMENT, OIL COOLER

5UH-E3480-00-00

Unavailable

16

BLOWER ASSY

1NS-E2405-01-00

Unavailable

17

HOSE, OIL 1

5UH-E3464-01-00

$56.03

18

HOSE, OIL 2

3D5-E3465-00-00

Unavailable

19

O-RING

93210-08561-00

Unavailable

20

BOLT 1

5UH-E3573-00-00

$3.12

21

CLIP

5UH-E3577-00-00

$1.73

22

GROMMET(2GH)

90480-12475-00

$6.68

23

COLLAR

90387-06113-00

$10.51

24

WASHER

90209-06012-00

$4.71

25

BOLT, FLANGE

95817-06020-00

$2.69
