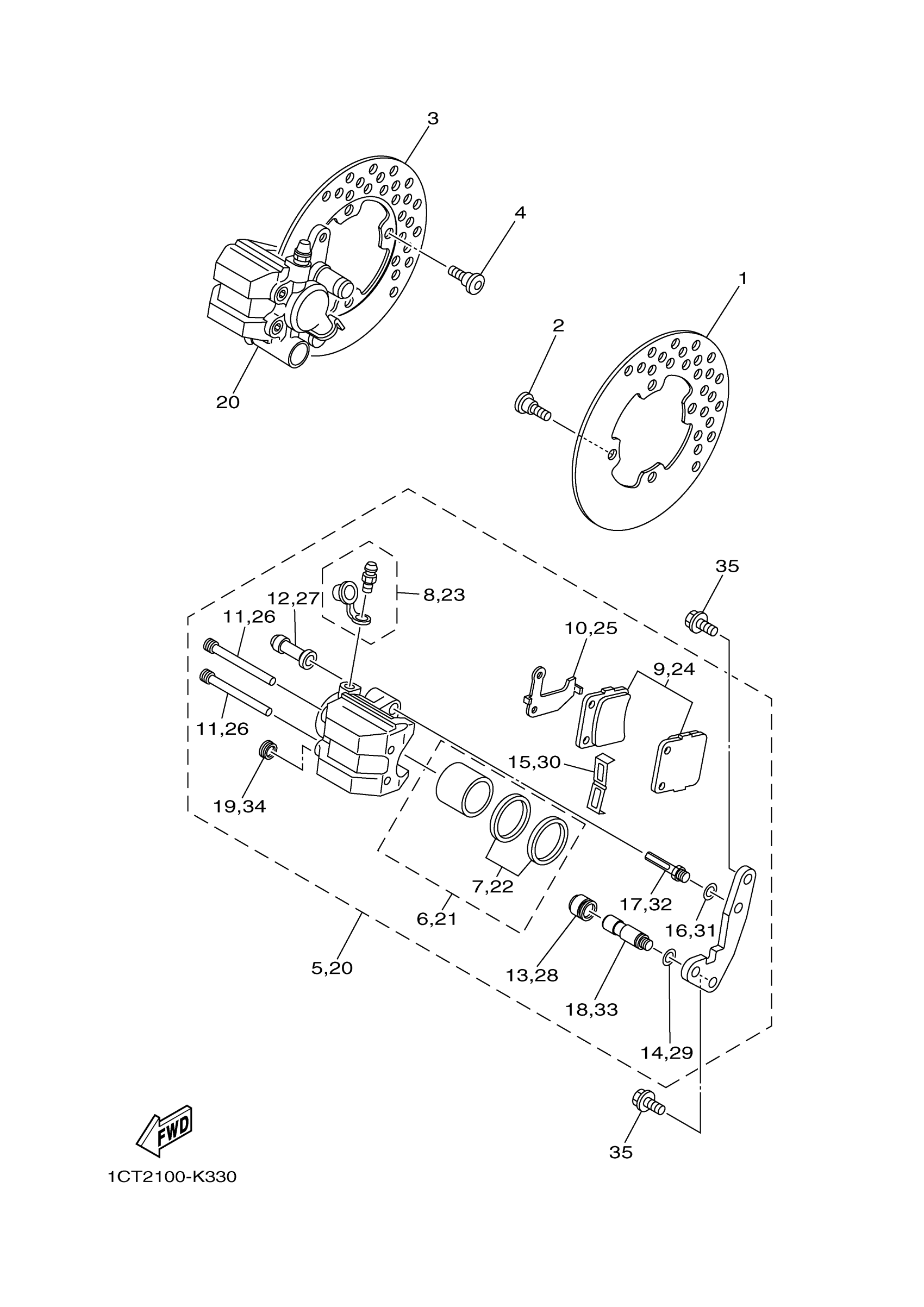

Yamaha YFM35GAL (GRIZZLY 350 2WD) 5WHP0 2011 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (FRONT)

5ND-F582T-00-00

Unavailable

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE (FRONT)

5ND-F582T-00-00

Unavailable

4

BOLT

90109-08087-00

$8.49

5

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

6

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

7

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

8

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

9

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

10

SHIM, CALIPER

3GD-25827-00-00

Unavailable

11

PIN, PAD

3GD-25933-00-00

$28.99

12

BOOT 2

1UY-25937-51-00

$14.49

13

BOOT, CALIPER

1UY-25917-51-00

$6.99

14

SPRING, PAD

1UY-25934-51-00

$6.99

15

SUPPORT, PAD

1UY-25919-51-00

$22.99

16

WASHER, SPRING

1UY-25938-51-00

Unavailable

17

BOLT

1UY-25926-51-00

Unavailable

18

PIN, SLIDE

3GD-25914-00-00

Unavailable

19

DUST PLUG

3GD-25916-00-00

Unavailable

20

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

Unavailable

21

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

22

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

23

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

24

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

25

SHIM, CALIPER

3GD-25828-00-00

Unavailable

26

PIN, PAD

3GD-25933-00-00

$28.99

27

BOOT 2

1UY-25937-51-00

$14.49

28

BOOT, CALIPER

1UY-25917-51-00

$6.99

29

SPRING, PAD

1UY-25934-51-00

$6.99

30

SUPPORT, PAD

1UY-25919-51-00

$22.99

31

WASHER, SPRING

1UY-25938-51-00

Unavailable

32

BOLT

1UY-25926-51-00

Unavailable

33

PIN, SLIDE

3GD-25914-00-00

Unavailable

34

DUST PLUG

3GD-25916-00-00

Unavailable

35

BOLT, FLANGE

90105-08161-00

Unavailable
