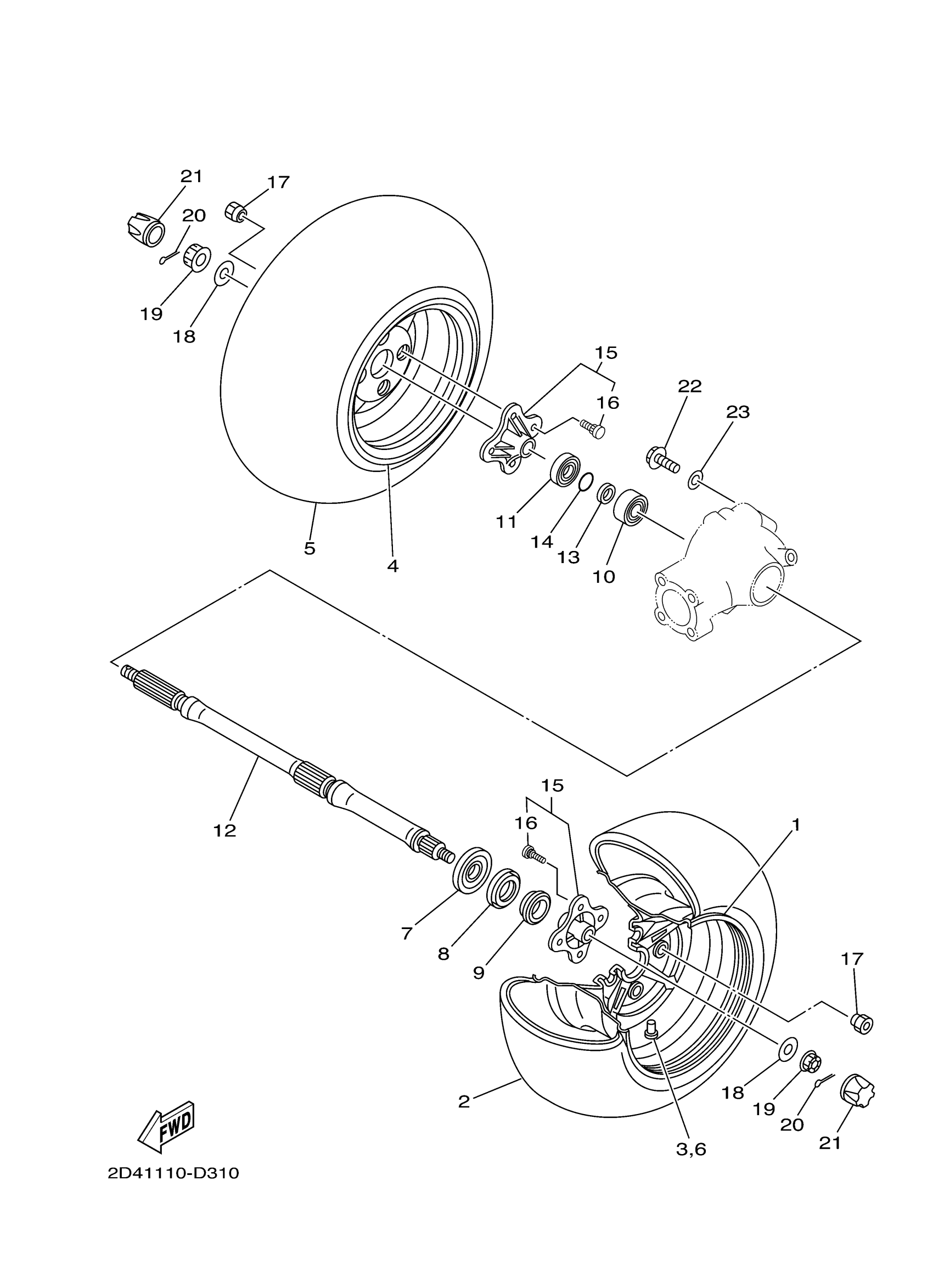

Yamaha YFM35FXT (WOLVERINE) 2D41 2005 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL COMP.

4KB-25390-01-35

Unavailable

2

TIRE (AT23X10-12 KT407)

94110-1205P-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

REAR WHEEL COMP.

4KB-25390-01-35

Unavailable

5

TIRE (AT23X10-12 KT407)

94110-1205P-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

BEARING

93306-00809-00

Unavailable

8

OIL SEAL

93106-47040-00

$18.99

9

COVER, HUB DUST

4SH-25367-01-00

$48.99

10

BEARING(3JN)

93306-20531-00

$50.99

11

OIL SEAL(2HR)

93102-38383-00

$17.99

12

AXLE, WHEEL

4KB-25381-12-00

Unavailable

13

COLLAR(2NL)

90387-284T0-00

$16.99

14

O-RING(22F)

93210-26662-00

$7.49

15

COLLAR, WHEEL

2HR-25383-01-00

$159.99

16

BOLT, SERRATION

90114-10014-00

Unavailable

17

NUT(2HR)

90179-10540-00

Unavailable

18

WASHER, PLATE(2HR)

90201-162L6-00

Unavailable

19

NUT, CASTLE

90171-16001-00

Unavailable

20

PIN, COTTER

91490-30030-00

Unavailable

21

CAP, WHEEL

5GT-2512A-00-00

Unavailable

22

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

23

WASHER, PLATE(47X)

90201-101J1-00

Unavailable
