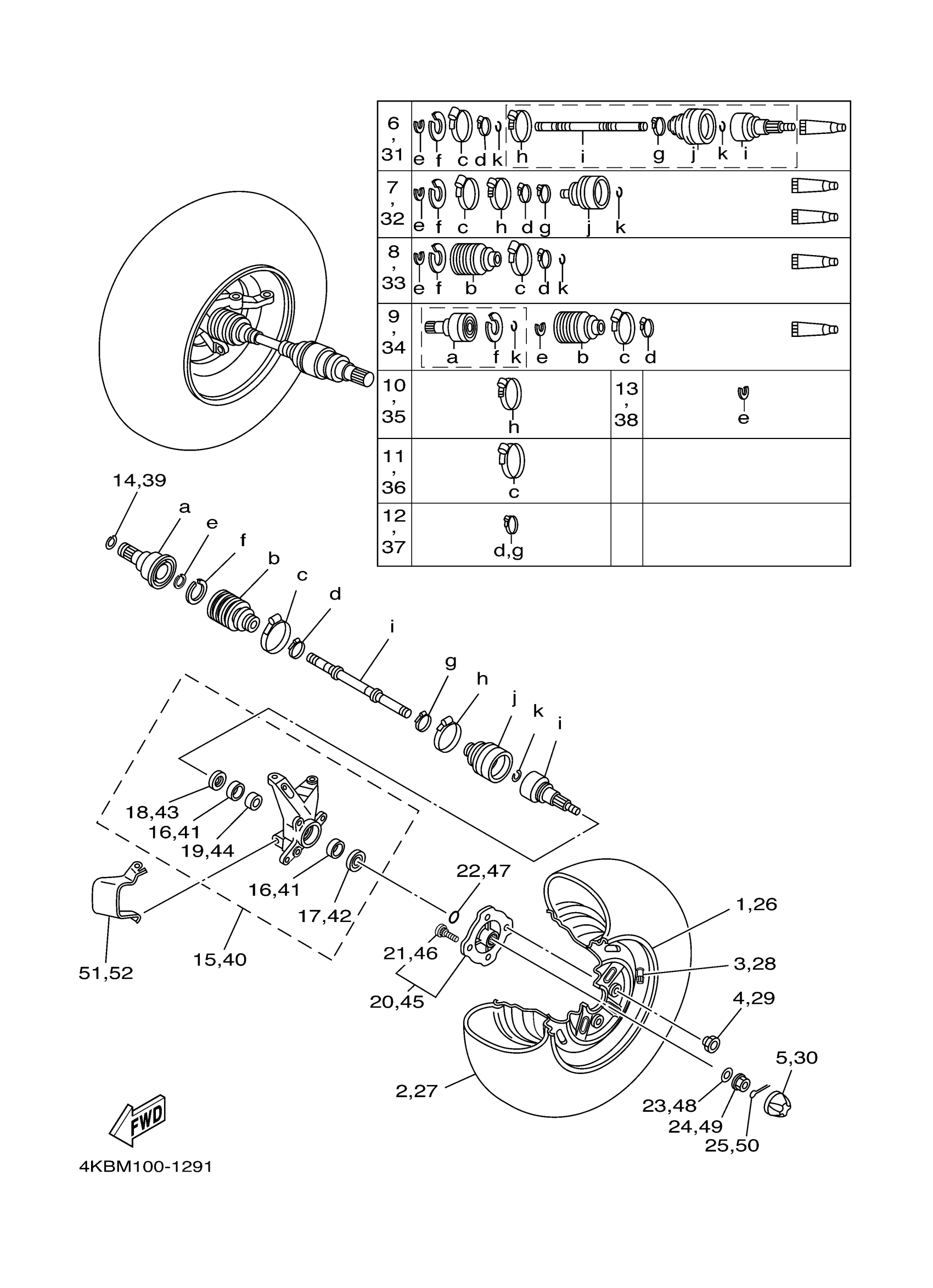

Yamaha YFM35FXT (WOLVERINE) 2D41 2005 FRONT WHEEL Diagram
#
1
WHEEL COMP.
4KB-25180-02-35
Unavailable
2
TIRE (AT23X8-12 KT403)
94108-1205R-00
Unavailable
6
BALL JOINT SET
4KB-2510F-10-00
Unavailable
7
BOOT SET (BALL JOINT)
4KB-2510G-10-00
Unavailable
9
DOUBLE OFF SET JOINT
4KB-2510J-00-00
Unavailable
11
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
15
STEERING KNUCKLE ASSY (LEFT)
4KB-23501-02-00
Unavailable
16
BEARING
93306-00615-00
Unavailable
17
OIL SEAL
93106-38046-00
Unavailable
18
OIL SEAL
93106-38047-00
Unavailable
19
SPACER(2HR)
90560-30325-00
Unavailable
20
HUB, FRONT
5GH-25111-00-00
Unavailable
21
BOLT, SERRATION
90114-10014-00
Unavailable
22
O-RING(47X)
93210-27666-00
Unavailable
23
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
24
NUT, CASTLE
90171-16001-00
Unavailable
25
PIN, COTTER
91490-30030-00
Unavailable
26
WHEEL COMP.
4KB-25180-02-35
Unavailable
27
TIRE (AT23X8-12 KT403)
94108-1205R-00
Unavailable
31
BALL JOINT SET
4KB-2510F-10-00
Unavailable
32
BOOT SET (BALL JOINT)
4KB-2510G-10-00
Unavailable
34
DOUBLE OFF SET JOINT
4KB-2510J-00-00
Unavailable
36
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
40
STEERING KNUCKLE ASSY (RIGHT)
4KB-23502-02-00
Unavailable
41
BEARING
93306-00615-00
Unavailable
42
OIL SEAL
93106-38046-00
Unavailable
43
OIL SEAL
93106-38047-00
Unavailable
44
SPACER(2HR)
90560-30325-00
Unavailable
45
HUB, FRONT
5GH-25111-00-00
Unavailable
46
BOLT, SERRATION
90114-10014-00
Unavailable
47
O-RING(47X)
93210-27666-00
Unavailable
48
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
49
NUT, CASTLE
90171-16001-00
Unavailable
50
PIN, COTTER
91490-30030-00
Unavailable
51
COVER, RING (RIGHT)
4KB-2331M-00-00
Unavailable
52
COVER, RING
4KB-2331N-00-00
Unavailable
