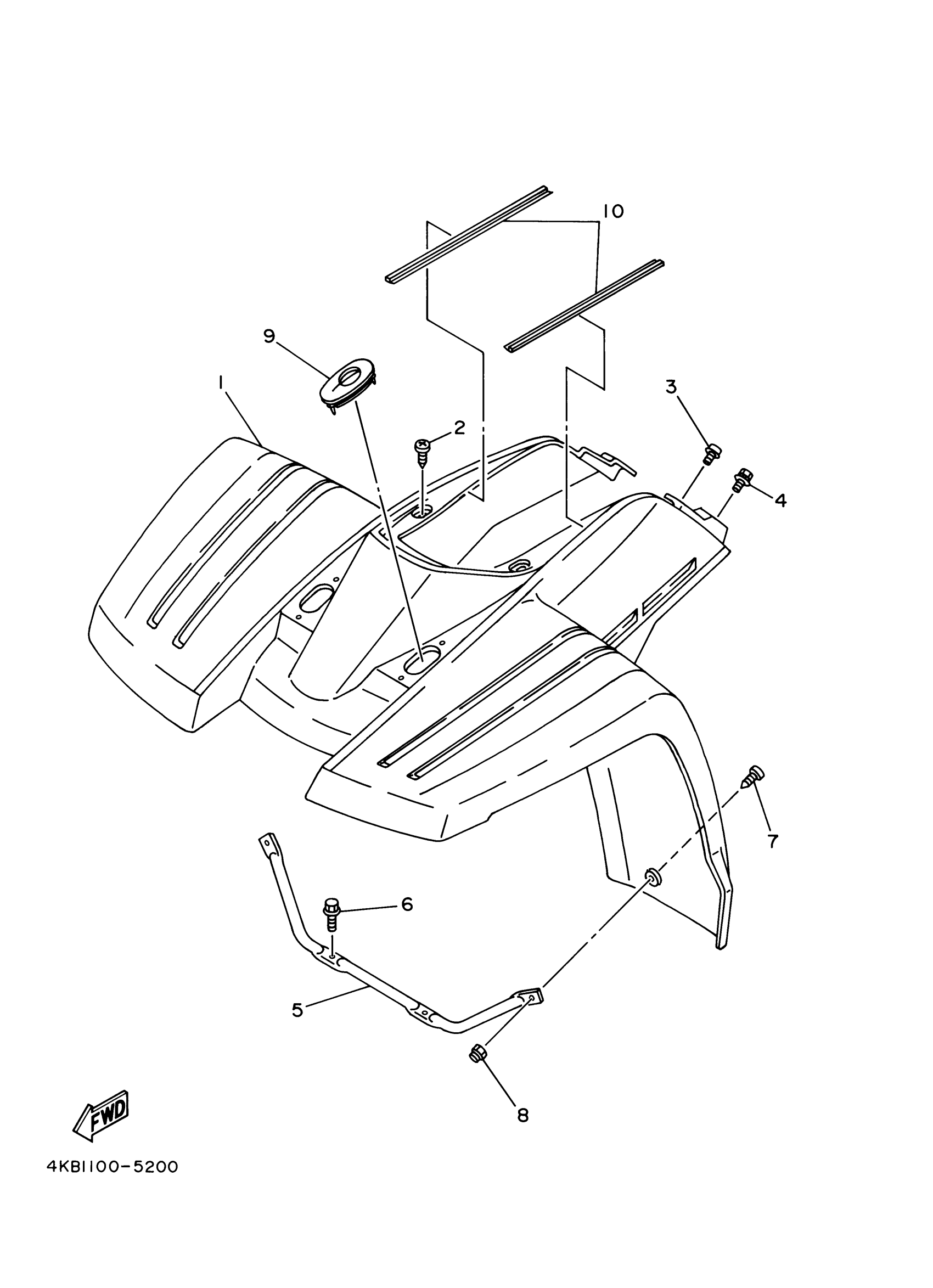

Yamaha YFM35FXT (WOLVERINE) 2D41 2005 FRONT FENDER Diagram

FRONT FENDER COMP. (YAMAHA BLACK)

4KB-W2151-61-00

Unavailable

FRONT FENDER COMP. (BLUISH WHITE SOLID 1)

4KB-W2151-71-00

Unavailable

SCREW(3JM)

90149-06306-00

$8.49

SCREW, W/WASHER (14T)

90159-06059-00

Unavailable

BOLT, WITH WASHER

90119-06152-00

$7.49

STAY, FENDER 1

4KB-21513-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.43

SCREW(3JM)

90149-06306-00

$8.49

NUT,SELF-LOCKING

95607-06200-00

$12.49

DAMPER 1

4KB-21541-00-00

Unavailable

MOLE, SIDE COVER 1

4WV-2171L-00-00

$8.99
