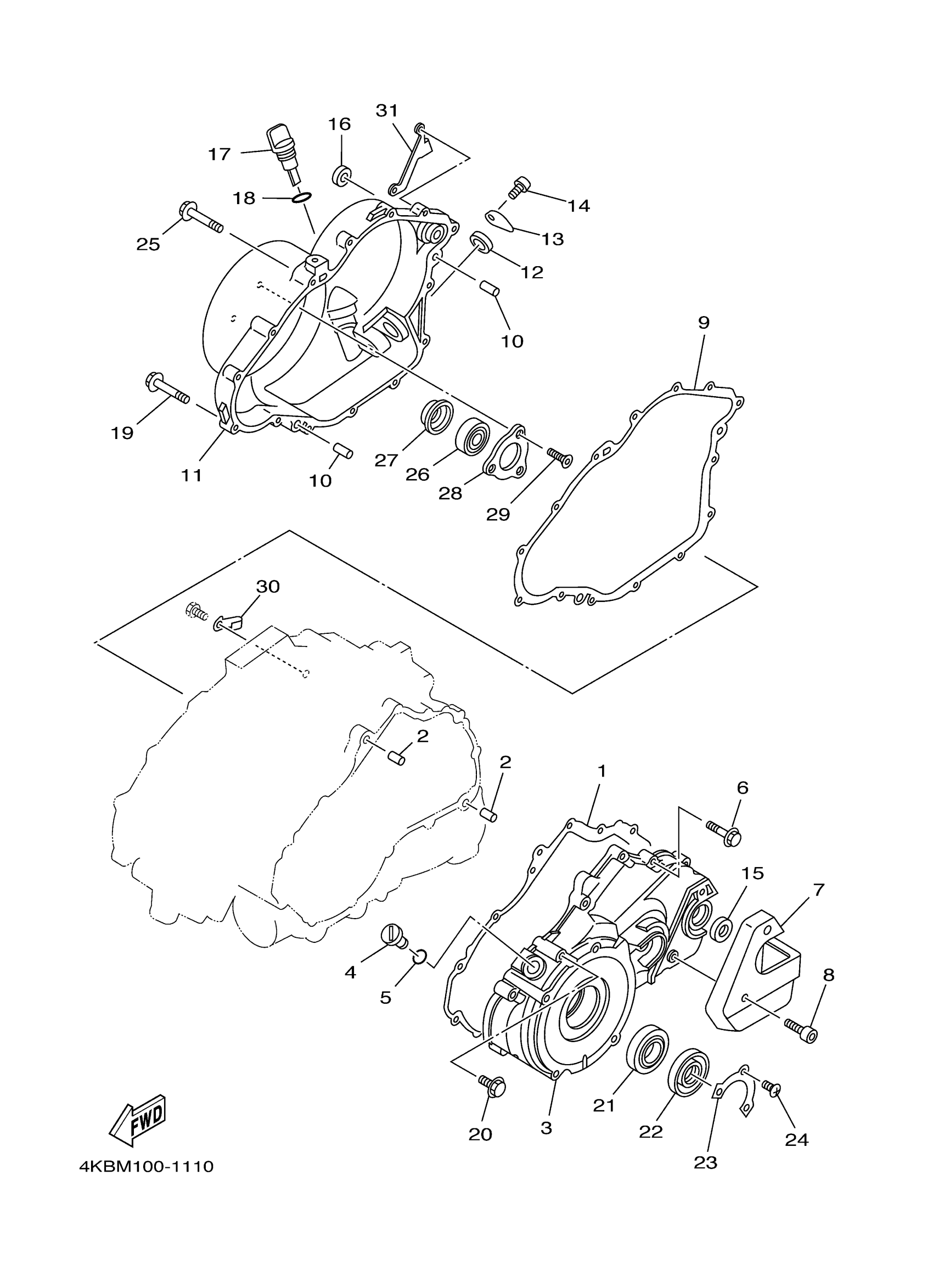

Yamaha YFM35FXT (WOLVERINE) 2D41 2005 CRANKCASE COVER 1 Diagram

GASKET, CRANKCASE COVER 1

4KB-15451-01-00

$21.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

COVER, CRANKCASE 1

4WU-15411-01-00

$325.99

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

O-RING (2H9)

93210-14369-00

$7.49

BOLT, SMALL FLANGE

95027-06030-00

$3.98

COVER, CRANKCASE 2

4KB-15421-00-00

Unavailable

BOLT,SOCKET

91317-06025-00

$5.60

GASKET, CRANKCASE COVER 3

4KB-15462-00-00

$23.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

COVER, CRANKCASE 3

4WU-15431-00-00

Unavailable

PLUG

90338-28221-00

Unavailable

COVER

4KB-15492-00-00

Unavailable

SCREW, PAN

98507-06010-00

$3.55

OIL SEAL (3Y1)

93102-14209-00

$11.49

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

PLUG, OIL LEVEL

4KB-15362-00-00

Unavailable

O-RING (5Y1)

93210-19522-00

Unavailable

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06050-00

Unavailable

BEARING(55X)

93306-07801-00

Unavailable

OIL SEAL

93102-28476-00

Unavailable

WASHER, THRUST

1UY-15719-00-00

Unavailable

SCREW, COUNTERSUNK (21V)

90151-05023-00

Unavailable

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

BEARING(37F)

93306-20335-00

Unavailable

OIL SEAL (21V)

93101-17113-00

Unavailable

PLATE, BEARING COVER

4SH-15381-00-00

Unavailable

SCREW, COUNTERSUNK (21V)

90151-06025-00

Unavailable

CLAMP(4KB)

90465-08377-00

Unavailable

BRACKET

4KB-18128-00-00

Unavailable
