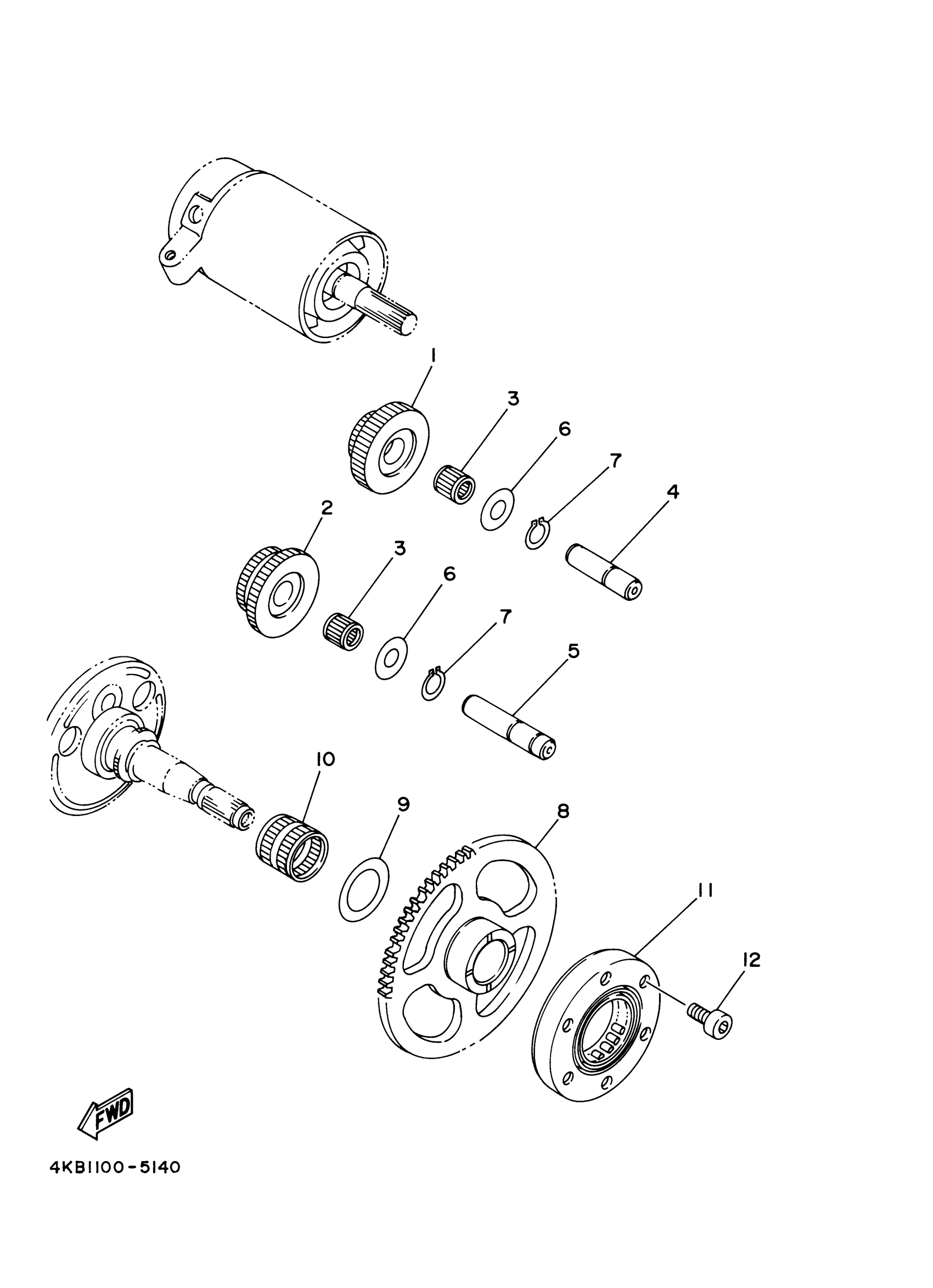

Yamaha YFM35FXS (WOLVERINE 4X4) 4KBX 2004 STARTER CLUTCH Diagram

GEAR, IDLER 1

4KB-15512-00-00

Unavailable

GEAR, IDLER 2

4KB-15517-00-00

Unavailable

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$35.99

SHAFT 1

4KB-15521-01-00

Unavailable

SHAFT 2

4KB-15522-01-00

$25.99

WASHER, PLATE(52W)

90201-123K4-00

$10.49

CIRCLIP(10Y)

99009-12400-00

$3.59

GEAR, IDLER 2

1UY-15517-01-00

$206.99

WASHER PLATE 371115580000

90201-25291-00

$10.49

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

$45.99

STARTER ONE-WAY ASSY

5KM-15590-00-00

$212.99

BOLT, SOCKET

91317-08016-00

$8.49
