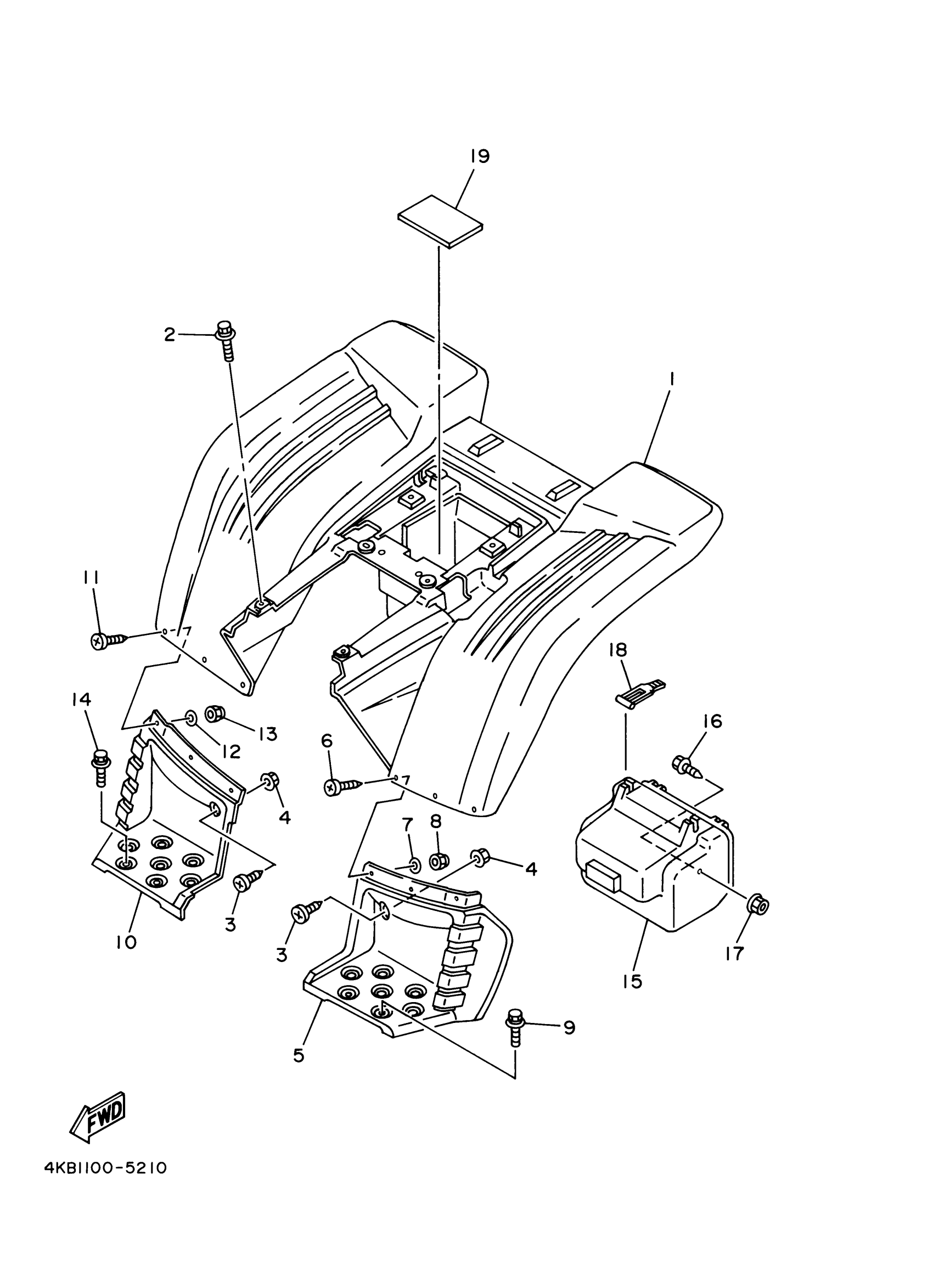

Yamaha YFM35FXS (WOLVERINE 4X4) 4KBX 2004 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER COMP. (DPBSE)
4KB-W2161-51-00
Unavailable
1
REAR FENDER COMP. (YAMAHA BLACK)
4KB-W2161-61-00
Unavailable
5
FLAP
4KB-21621-00-00
Unavailable
10
FLAP
4KB-21691-00-00
Unavailable
15
BOX COMP.
4KB-2160A-20-00
Unavailable
16
BOLT, WITH WASHER
90119-06226-00
Unavailable
18
BAND
59V-21646-00-00
Unavailable
19
DAMPER 2
4BD-21639-00-00
Unavailable
