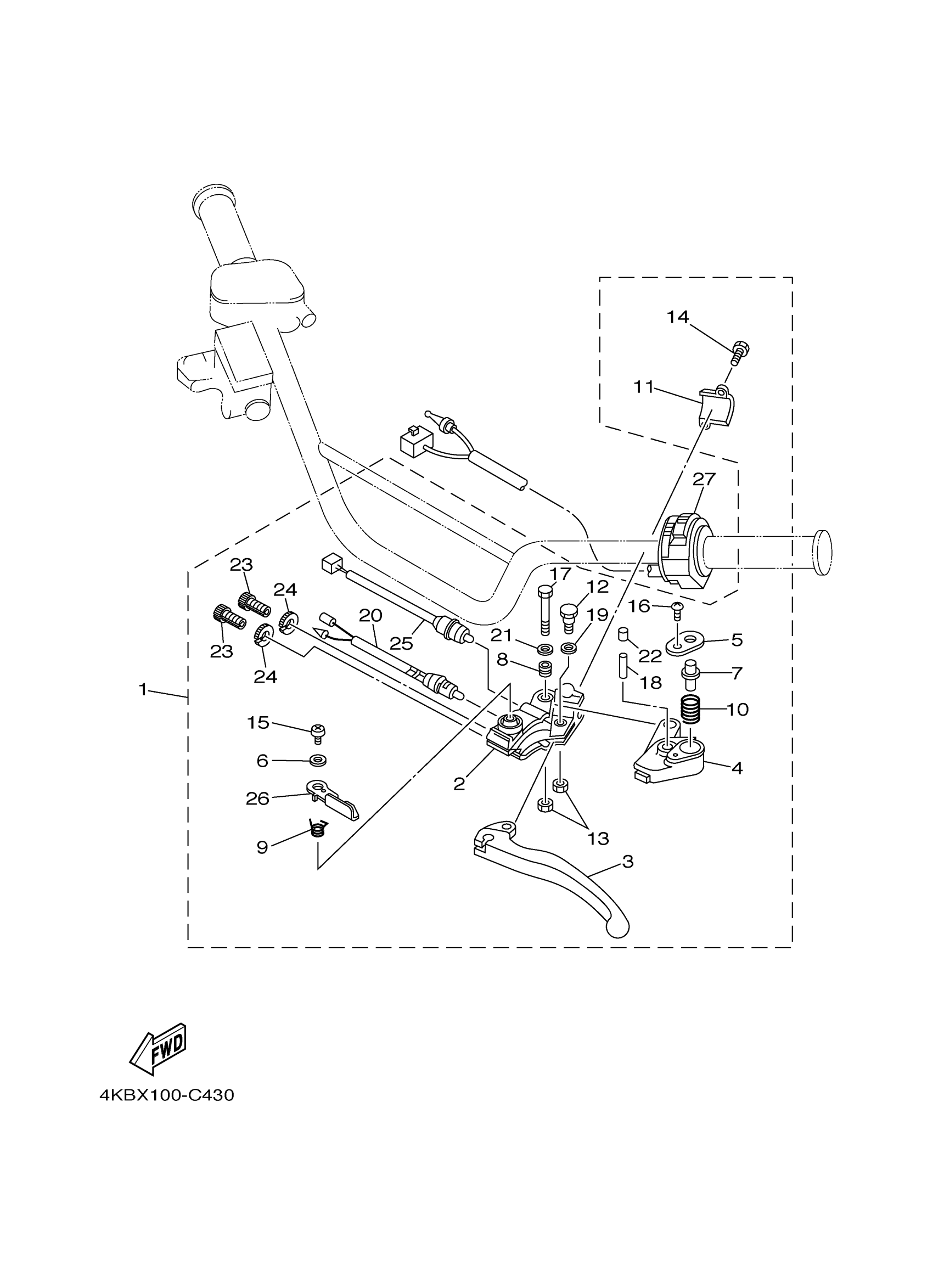

Yamaha YFM35FXS (WOLVERINE 4X4) 4KBX 2004 HANDLE SWITCH LEVER Diagram
#
Description
Price
1
LEVER HOLDER ASSY (LEFT)
5LP-82910-10-00
Unavailable
7
PIN, LOCK 1
1UY-83967-10-00
Unavailable
11
HOLDER, LEVER LOWER 1
5LP-82913-11-00
Unavailable
14
SCREW, LEVER 1
5LP-83991-10-00
Unavailable
16
SCREW
4GL-82113-00-00
Unavailable
17
BOLT, LEVER
5LP-83945-10-00
Unavailable
18
PIN,SPRING (648)
91690-40022-00
Unavailable
19
WASHER, PLAIN
5LP-8398X-10-00
Unavailable
20
FRONT STOP SWITCH ASSY
1YW-83980-00-00
Unavailable
21
WASHER, SPECIAL
5LP-84127-10-00
Unavailable
22
CAP 1
1UY-83956-00-00
Unavailable
23
BOLT
90123-08002-00
Unavailable
24
NUT
90179-08030-00
Unavailable
25
SWITCH
4KB-82917-00-00
Unavailable
26
LEVER, LOCK
4KB-83965-00-00
Unavailable
27
SWITCH, HANDLE 3
4KB-83973-22-00
Unavailable
