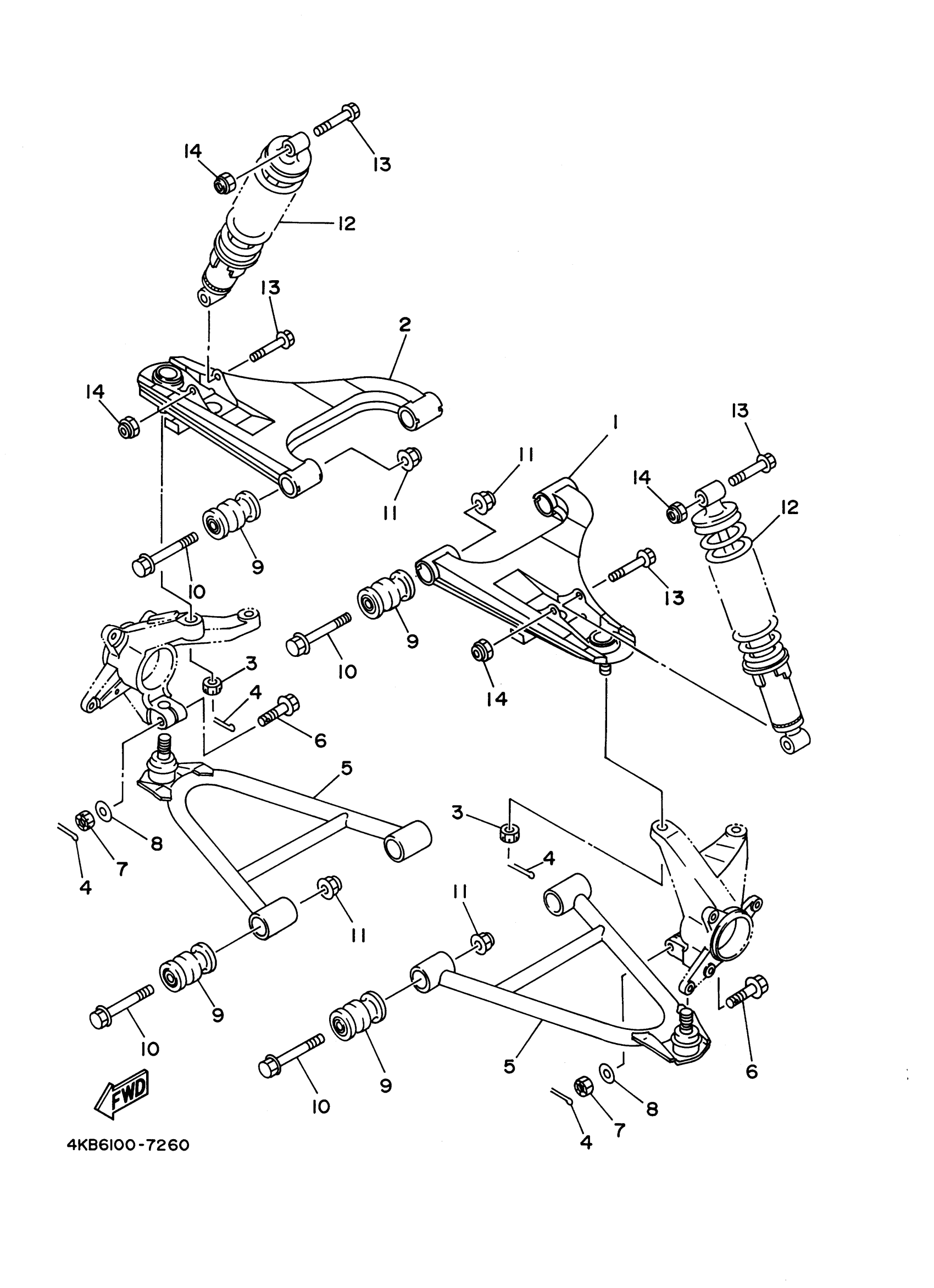

Yamaha YFM35FXS (WOLVERINE 4X4) 4KBX 2004 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM COMP. (LEFT)

4WU-23540-00-00

Unavailable

2

FRONT UPPER ARM COMP. (RIGHT)

4WU-23550-00-00

$193.99

3

NUT, CASTLE

90171-10001-00

$7.49

4

PIN, COTTER

91490-20025-00

$1.99

5

FRONT LOWER ARM COMP. (LEFT)

4KB-23570-11-00

Unavailable

6

BOLT, FLANGE (2XJ)

90105-10549-00

$7.49

7

NUT(6TD)

95337-10600-00

$9.49

8

WASHER (7A9)

90201-100F7-00

$9.49

9

BUSH

2HR-23526-00-00

$20.99

10

BOLT, WASHER BASED(4EB)

90105-10788-00

$28.99

11

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

12

SHOCK ABSORBER ASSY

4KB-23350-10-35

Unavailable

12

SHOCK ABSORBER ASSY

4KB-23350-10-36

Unavailable

13

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

14

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49
