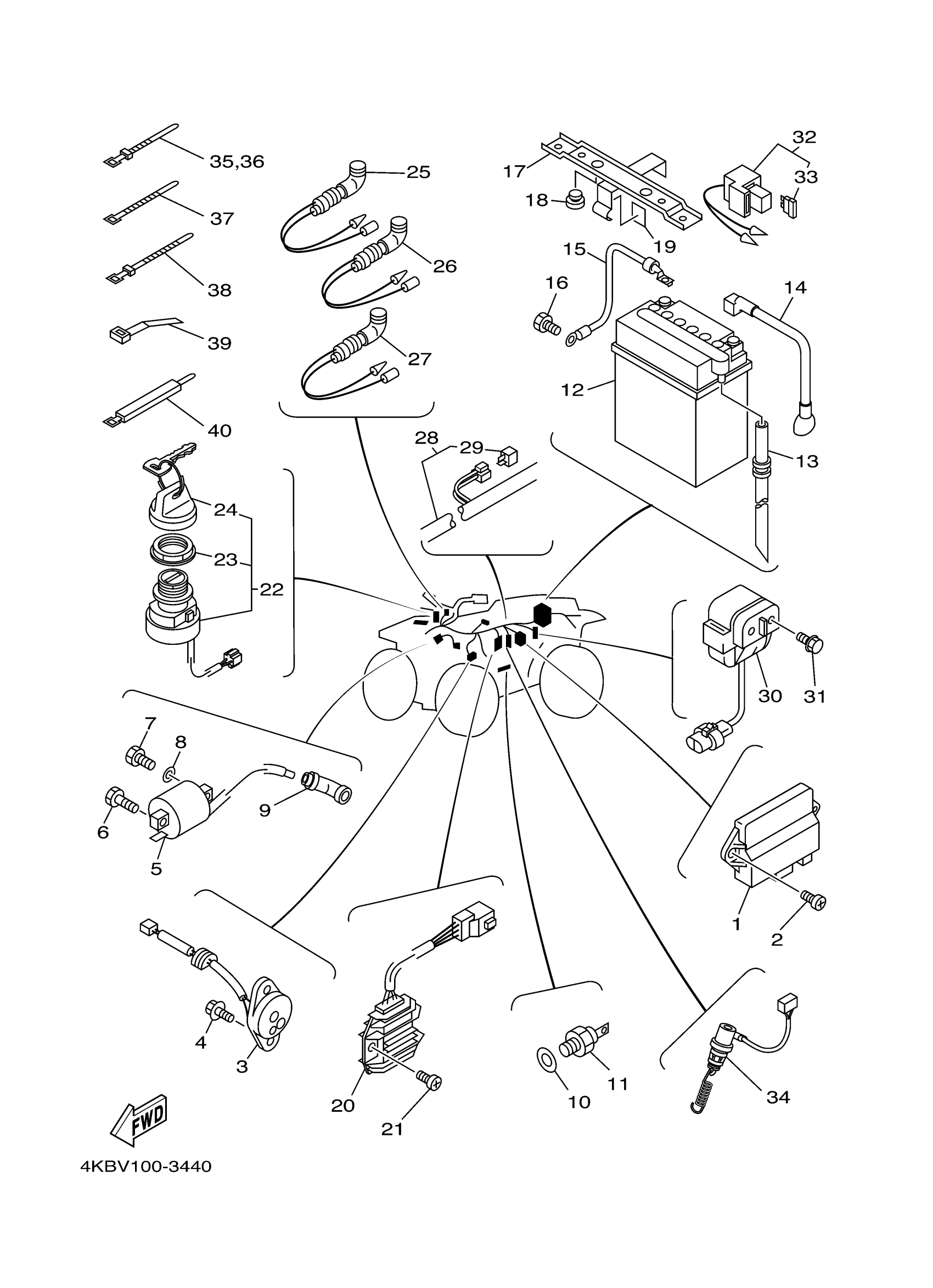

Yamaha YFM35FXS (WOLVERINE 4X4) 4KBX 2004 ELECTRICAL 1 Diagram
#
5
IGNITION COIL ASSY
4KB-82310-19-00
Unavailable
11
THERMO SWITCH ASSY
2HT-82560-10-00
Unavailable
12
ACB12CA GS BATTERY WET PACK
ACB-12CA0-00-00
Unavailable
13
HOSE (L720)
90445-086G1-00
Unavailable
14
WIRE, PLUS LEAD
4KB-82115-10-00
Unavailable
15
WIRE, MINUS LEAD
4KB-82116-00-00
Unavailable
16
SCREW, HEXAGON (18V)
90153-06044-00
Unavailable
17
BRACKET, BATTERY
4KB-82128-01-00
Unavailable
18
DAMPER, LOCATING 1
22W-24181-00-00
Unavailable
19
DAMPER
34M-2139X-00-00
Unavailable
20
RECTIFIER & REGULATOR ASSY
4KB-81960-10-00
Unavailable
22
MAIN SWITCH ASSY
5LP-82510-01-00
Unavailable
23
NUT, MAIN SWITCH
3HN-82569-00-00
Unavailable
24
CAP, KEY
3HN-82579-00-00
Unavailable
25
PILOT LIGHT ASSY
4KB-83530-01-00
Unavailable
26
PILOT LIGHT ASSY
4KB-83530-11-00
Unavailable
27
PILOT LIGHT ASSY
4KB-83530-31-00
Unavailable
28
WIRE HARNESS ASSY
4KB-82590-40-00
Unavailable
29
DIODE ASSY
3WP-81980-00-00
Unavailable
30
STARTER RELAY ASSY (MS5E-541)
4KB-81940-01-00
Unavailable
31
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
32
FUSE HOLDER ASSY
5EH-82150-00-00
Unavailable
33
FUSE (20A)
2GV-82151-00-00
Unavailable
34
STOP SWITCH ASSY
4KB-82530-11-00
Unavailable
35
BAND, SWITCH CORD
437-83936-01-00
Unavailable
36
BAND, SWITCH CORD
437-83936-01-00
Unavailable
37
CLAMP(4FM)
90464-15195-00
Unavailable
38
BAND, SWITCH CORD
437-83936-11-00
Unavailable
39
CLAMP
90465-10098-00
Unavailable
40
BAND
341-26397-01-00
Unavailable
