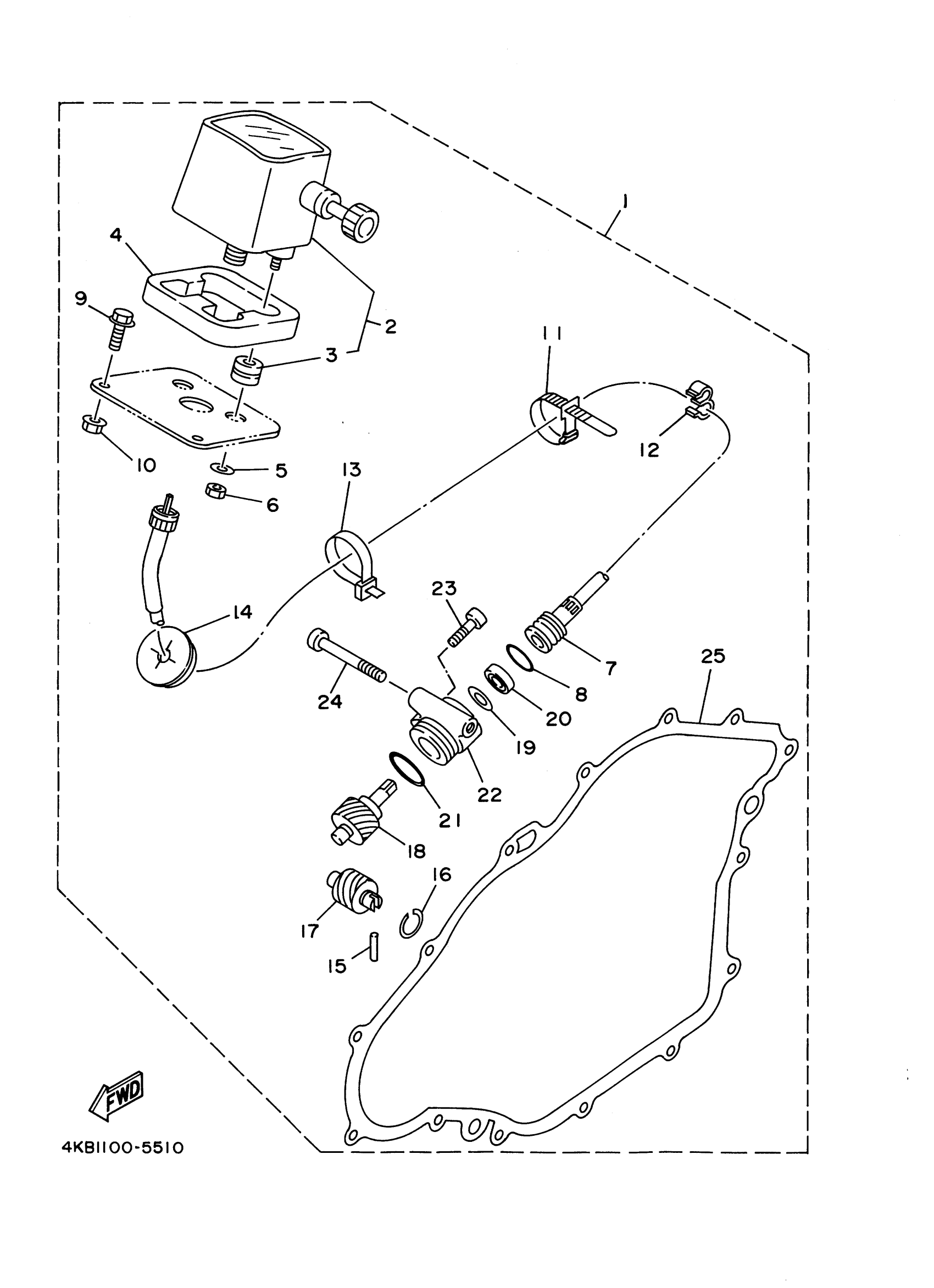

Yamaha YFM35FXS (WOLVERINE 4X4) 4KBX 2004 ALTERNATE METER Diagram

#

Description
Price

1

SPEEDOMETER KIT

4KB-W0081-00-00

Unavailable

2

. SPEEDOMETER ASSY

4KB-83500-00-00

Unavailable

3

DAMPER

3GH-83523-00-00

$6.99

4

. DAMPER

3JN-83664-00-00

Unavailable

5

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

6

NUT, HEXAGON

95317-05600-00

$2.34

7

SPEEDOMETER CABLE ASSY

4KB-83550-00-00

Unavailable

8

O-RING (26H)

93210-14579-00

$7.49

9

BOLT, FLANGE

95817-06016-00

$2.75

10

NUT, FLANGE(4MV)

95707-06500-00

$1.23

11

BAND, SWITCH CORD

437-83936-11-00

$4.63

12

CLIP (867)

90468-15020-00

Unavailable

13

CLAMP(3XW)

90464-35132-00

$9.49

14

. GROMMET

90480-25461-00

Unavailable

15

PIN, DOWEL (5X4)

93603-14179-00

Unavailable

16

CIRCLIP(59V)

93440-14155-00

Unavailable

17

. GEAR, DRIVE

4KB-17831-00-00

Unavailable

18

. GEAR, DRIVEN

4KB-17841-00-00

Unavailable

19

WASHER (692)

90201-12M34-00

Unavailable

20

OIL SEAL (30X)

93102-08307-00

Unavailable

21

O-RING(59V)

93210-24253-00

Unavailable

22

HOUSING, TACHOMETER GEAR

4KB-17811-00-00

Unavailable

23

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

24

SCREW, PAN

98517-06030-00

Unavailable

25

GASKET, CRANKCASE COVER 3

4KB-15462-00-00

Unavailable
