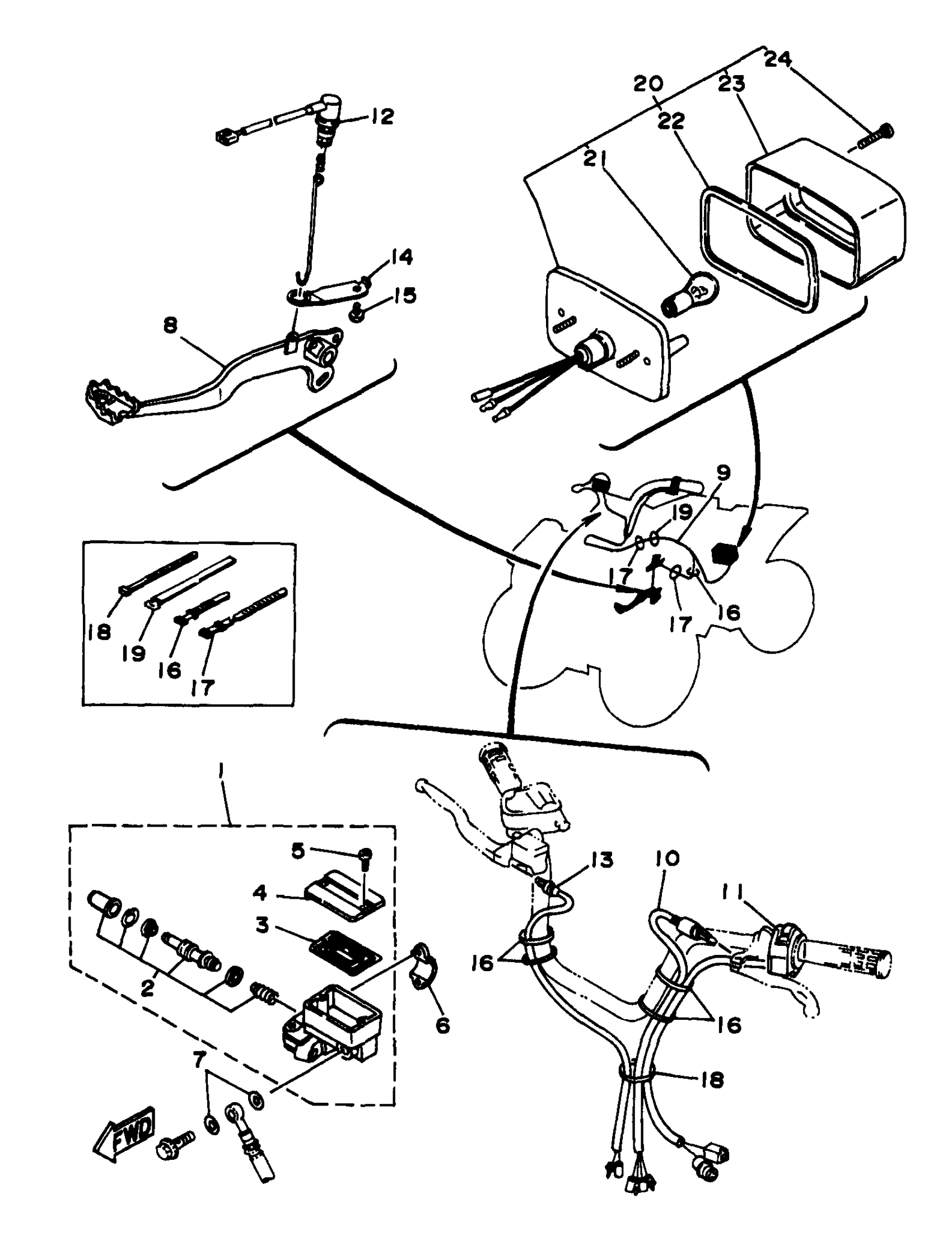

Yamaha YFM35FXK (WOLVERINE) 4KB9 1998 TAILLIGHT KIT (MAINE & NEW HAMPSHIRE) Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

2GU-25870-10-00

$294.99

2

CYLINDER KIT, MASTER

4H7-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

4H7-25852-00-00

$39.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

WASHER, PLATE(481)

90201-10118-00

Unavailable

8

PEDAL, BRAKE

4KB-27211-10-00

Unavailable

9

WIRE, SUB-LEAD

4KB-82509-00-00

Unavailable

10

STOP SWITCH ASSEMBLY

3HN-83980-00-00

Unavailable

11

SWITCH, HANDLE 3

4GB-83973-10-00

Unavailable

12

STOP SWITCH ASSEMBLY

4KB-82530-00-00

Unavailable

13

FRONT STOP SWITCH ASSEMBLY

3GD-83980-00-00

Unavailable

14

BRACKET, STOP SWITCH

4KB-21441-00-00

Unavailable

15

BOLT, FLANGE

95817-06010-00

$4.73

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable

17

BAND, SWITCH CORD

437-83936-11-00

Unavailable

18

CLAMP

1UY-82591-00-00

Unavailable

19

BAND

341-26397-01-00

Unavailable

20

TAILLIGHT UNIT ASSEMBLY

3HN-84710-20-00

Unavailable

21

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

Unavailable

22

GASKET, TAIL LENS

1K8-84523-00-00

Unavailable

23

LENS, TAILLIGHT

21V-84721-00-00

Unavailable

24

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

Unavailable
