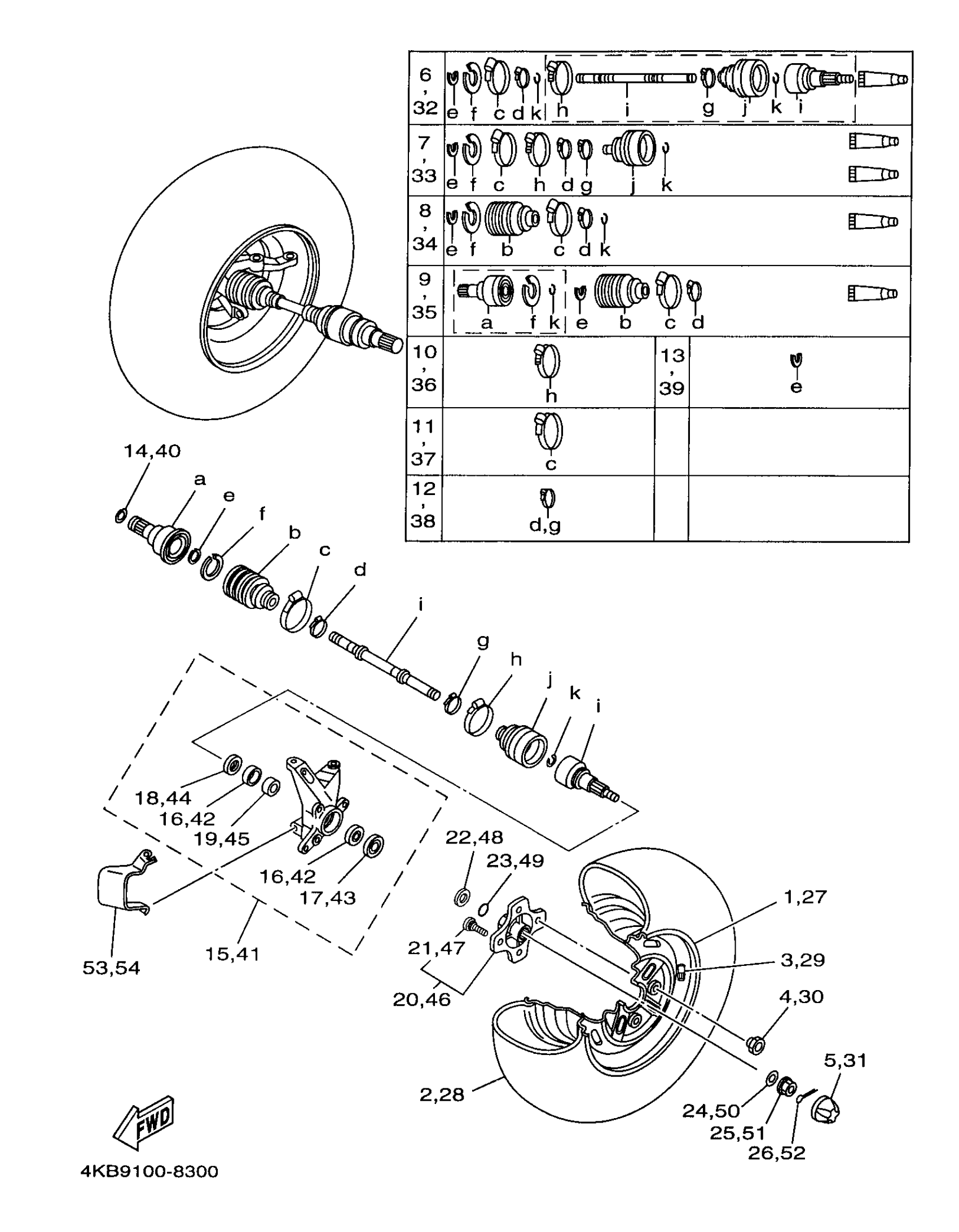

Yamaha YFM35FXK (WOLVERINE) 4KB9 1998 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP. (TGM)

4KB-25180-02-MA

Unavailable

2

TIRE (AT23X8-12 KT403)

94108-1205R-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

NUT(2HR)

90179-10540-00

$5.60

5

CAP, WHEEL

52H-2512A-00-00

$22.99

6

BALL JOINT SET

4KB-2510F-00-00

Unavailable

7

BOOT SET (BALL JOINT)

4KB-2510G-00-00

$88.99

8

BOOT SET (DOUBLE OFFSET JOINT)

4KB-2510H-00-00

$76.99

9

DOUBLE OFF SET JOINT

4KB-2510J-00-00

Unavailable

10

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

11

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

12

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

13

SNAP RING

2HR-2512J-00-00

$6.99

14

CIRCLIP

4KB-2512H-00-00

$6.99

15

STEERING KNUCKLE ASSY (LEFT)

4KB-23501-02-00

Unavailable

16

BEARING(2HR)

93306-00612-00

Unavailable

17

OIL SEAL(2HR)

93102-38383-00

Unavailable

18

OIL SEAL(3HN)

93102-38417-00

Unavailable

19

SPACER(2HR)

90560-30325-00

Unavailable

20

HUB, FRONT

4KB-25111-02-00

Unavailable

21

BOLT, SERRATION

90114-10014-00

Unavailable

22

COLLAR(3HN)

90387-281V8-00

Unavailable

23

O-RING(22F)

93210-26662-00

Unavailable

24

WASHER, PLATE(2HR)

90201-162L6-00

Unavailable

25

NUT, CASTLE

90171-16001-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable

27

WHEEL COMP. (TGM)

4KB-25180-02-MA

Unavailable

28

TIRE (AT23X8-12 KT403)

94108-1205R-00

Unavailable

29

VALVE, RIM(2GH)

93900-00030-00

$16.99

30

NUT(2HR)

90179-10540-00

$5.60

31

CAP, WHEEL

52H-2512A-00-00

$22.99

32

BALL JOINT SET

4KB-2510F-00-00

Unavailable

33

BOOT SET (BALL JOINT)

4KB-2510G-00-00

$88.99

34

BOOT SET (DOUBLE OFFSET JOINT)

4KB-2510H-00-00

$76.99

35

DOUBLE OFF SET JOINT

4KB-2510J-00-00

Unavailable

36

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

37

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

38

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

39

SNAP RING

2HR-2512J-00-00

$6.99

40

CIRCLIP

4KB-2512H-00-00

$6.99

41

STEERING KNUCKLE ASSY (RIGHT)

4KB-23502-02-00

Unavailable

42

BEARING(2HR)

93306-00612-00

Unavailable

43

OIL SEAL(2HR)

93102-38383-00

Unavailable

44

OIL SEAL(3HN)

93102-38417-00

Unavailable

45

SPACER(2HR)

90560-30325-00

Unavailable

46

HUB, FRONT

4KB-25111-02-00

Unavailable

47

BOLT, SERRATION

90114-10014-00

Unavailable

48

COLLAR(3HN)

90387-281V8-00

Unavailable

49

O-RING(22F)

93210-26662-00

Unavailable

50

WASHER, PLATE(2HR)

90201-162L6-00

Unavailable

51

NUT, CASTLE

90171-16001-00

Unavailable

52

PIN, COTTER

91490-30030-00

Unavailable

53

COVER, RING (RIGHT)

4KB-2331M-00-00

Unavailable

54

COVER, RING

4KB-2331N-00-00

Unavailable
