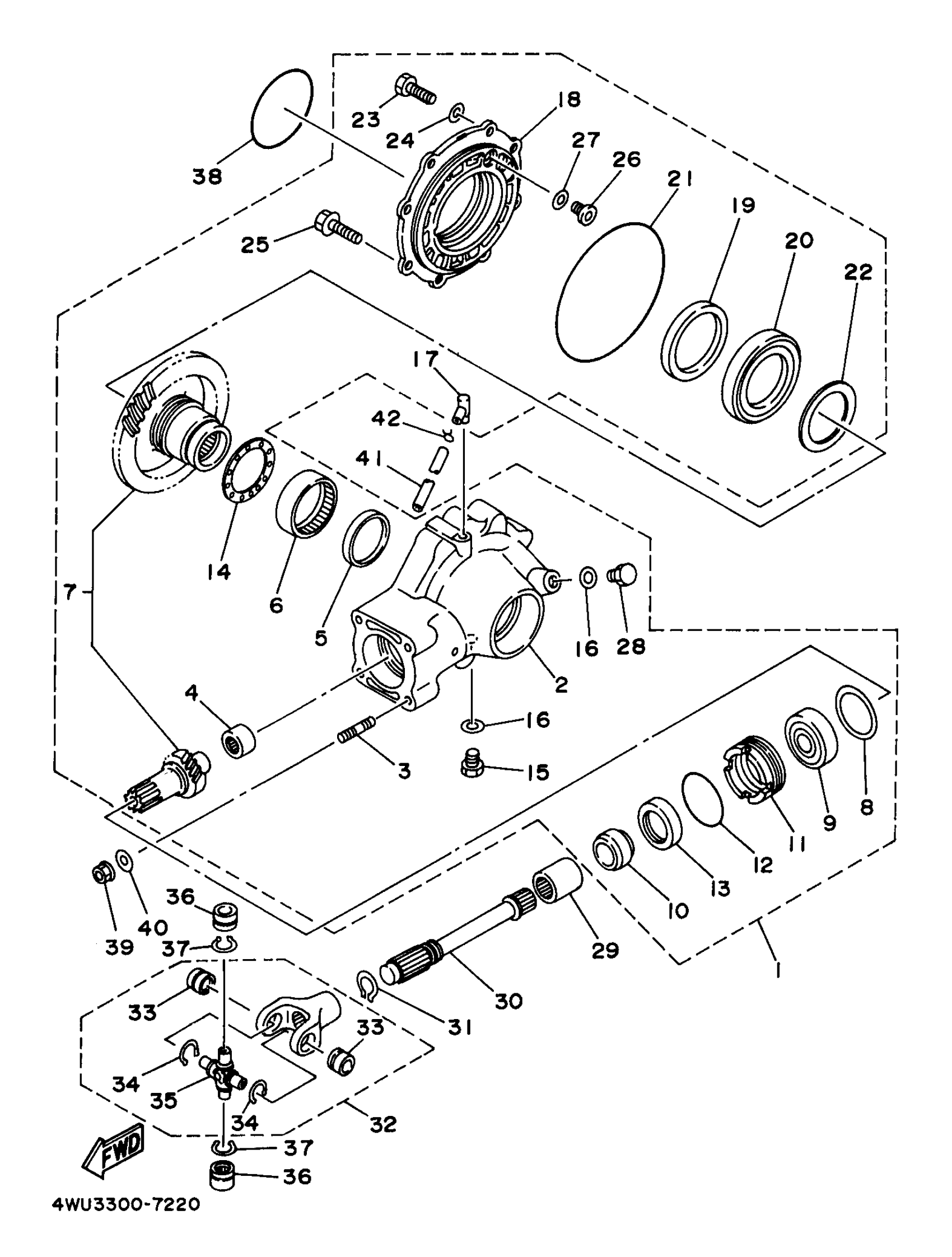

Yamaha YFM35FXK (WOLVERINE) 4KB9 1998 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

4GB-46101-04-00

Unavailable

2

HOUSING, DRIVE SHAFT

3HN-46151-01-00

Unavailable

3

BOLT, STUD (5E5)

90116-10361-00

Unavailable

4

BEARING ASSY

2H7-46102-00-00

$58.99

5

OIL SEAL (24W)

93101-52116-00

$16.99

6

BEARING, CYLINDRICAL(3HN)

93317-85569-00

$86.99

7

RING GEAR SET

4GB-Y4612-00-00

Unavailable

8

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

8

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

8

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

9

BEARING(4KB)

93306-30568-00

Unavailable

10

COLLAR (24W)

90387-255H9-00

Unavailable

11

RETAINER, BEARING

29U-46125-00-00

$92.99

12

O-RING (11H)

93210-59531-00

$15.99

13

OIL SEAL (4H7)

93101-38098-00

$17.99

14

WASHER, THRUST

24W-46118-00-12

Unavailable

14

WASHER, THRUST

24W-46118-00-14

Unavailable

14

WASHER, THRUST

24W-46118-00-16

Unavailable

14

WASHER, THRUST

24W-46118-00-18

Unavailable

14

WASHER, THRUST

24W-46118-00-20

Unavailable

15

PLUG, STRAIGHT SCREW

90340-14002-00

Unavailable

16

GASKET

214-11198-01-00

Unavailable

17

BREATHER

5UG-15371-00-00

Unavailable

18

HOUSING, BEARING

3HN-46152-01-00

Unavailable

19

OIL SEAL (22U)

93102-65277-00

Unavailable

20

BEARING, CYLINDRICAL (22U)

93316-01301-00

Unavailable

21

O-RING(59V)

93211-54698-00

Unavailable

22

. SHIM, RING GEAR (025T)

24W-46117-00-25

Unavailable

22

. SHIM, RING GEAR (030T)

24W-46117-00-30

Unavailable

22

. SHIM, RING GEAR (040T)

24W-46117-00-40

Unavailable

22

. SHIM, RING GEAR (050T)

24W-46117-00-50

Unavailable

23

BOLT, HEXAGON

97017-08025-00

Unavailable

24

WASHER(6TA)

92907-08600-00

Unavailable

25

BOLT, FLANGE(4GB)

95817-10045-00

Unavailable

26

STOPPER, RING GEAR

1FK-46156-00-00

Unavailable

27

SHIM, STOPPER

1FK-46157-00-15

Unavailable

27

. SHIM, STOPPER (T=020)

1FK-46157-00-20

Unavailable

28

PLUG, STRAIGHT(2E9)

90340-14029-00

Unavailable

29

COUPLING, GEAR

2HR-46123-00-00

Unavailable

30

SHAFT, DRIVE

4KB-46172-00-00

Unavailable

31

CIRCLIP (537)

93410-22039-00

Unavailable

32

CROSS JOINT COMP.

1YW-46180-02-00

Unavailable

33

BEARING

93399-99952-00

Unavailable

34

CIRCLIP(3JN)

93440-23165-00

Unavailable

35

. SPIDER

1YW-46187-00-00

Unavailable

36

BEARING

93399-99952-00

Unavailable

37

CIRCLIP(3JN)

93440-23165-00

Unavailable

38

O-RING(59V)

93210-85706-00

Unavailable

39

NUT (22F)

90179-10394-00

Unavailable

40

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

41

HOSE (L1050)

90445-072G8-00

Unavailable

42

CLIP (1J7)

90467-07029-00

Unavailable
