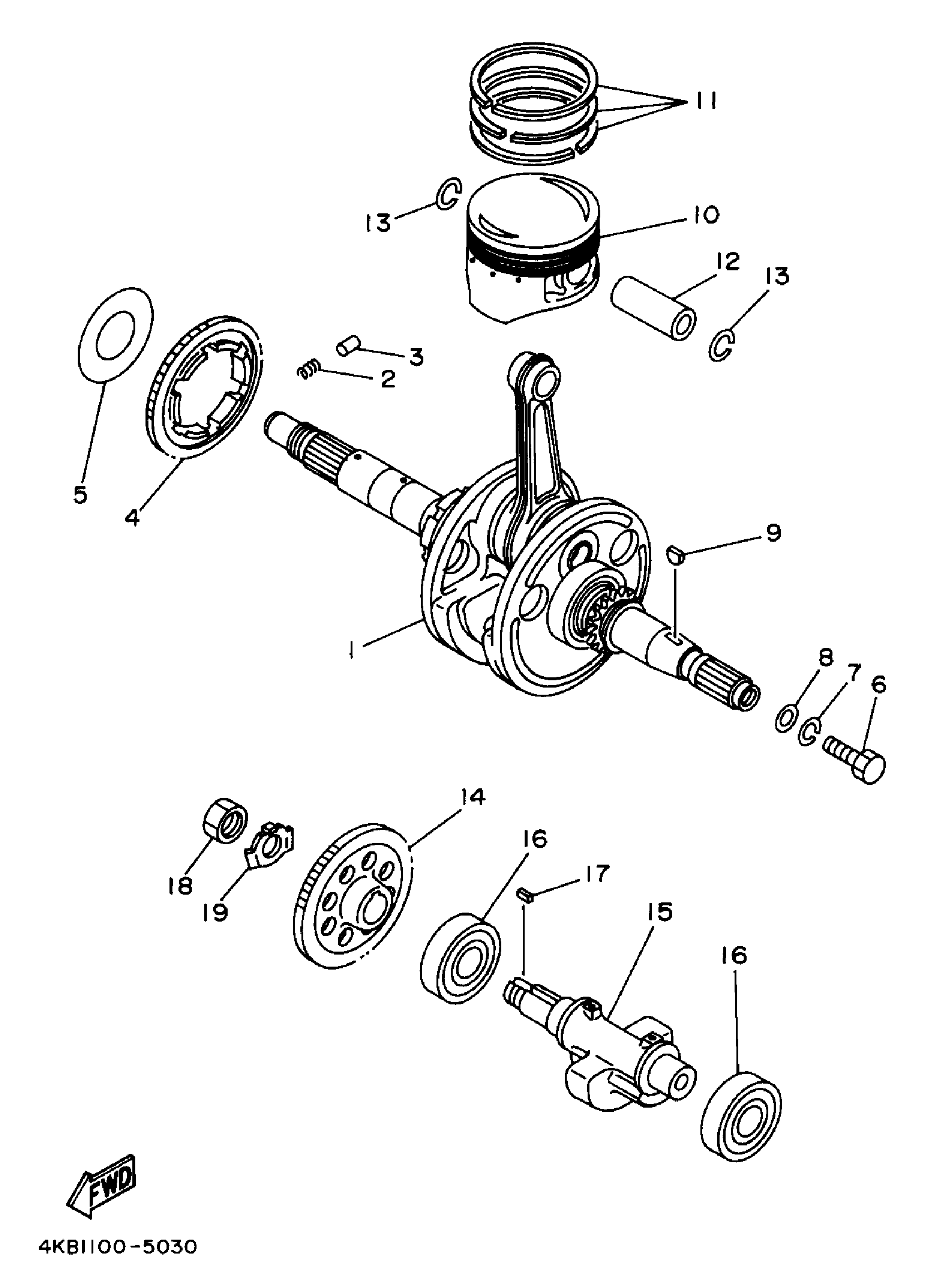

Yamaha YFM35FXJ_MNH (WOLVERIINE) 4KB6 1997 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSY
4KB-11400-01-00
Unavailable
2
SPRING, COMPRESSION (5Y1)
90501-22721-00
Unavailable
5
WASHER, BEARING COVER
4KB-11565-00-00
Unavailable
8
WASHER, PLATE
90201-10144-00
Unavailable
10
PISTON (0.50MM O/S)
1UY-11636-01-00
Unavailable
10
PISTON (1.00MM O/S)
1UY-11638-01-00
Unavailable
11
PISTON RING SET (0.50MM O/S)
4GB-11610-20-00
Unavailable
11
PISTON RING SET (1.00MM O/S)
4GB-11610-40-00
Unavailable
12
PIN, PISTON
55V-11633-00-00
Unavailable
13
CIRCLIP (26H)
93450-19095-00
Unavailable
14
GEAR, DRIVE
4KB-11536-01-00
Unavailable
15
WEIGHT 1
1UY-11454-00-00
Unavailable
16
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
17
KEY, STRAIGHT (3L5)
90282-05034-00
Unavailable
18
NUT, HEXAGON (30X)
90170-16326-00
Unavailable
19
WASHER, LOCK(2NL)
90215-16270-00
Unavailable
