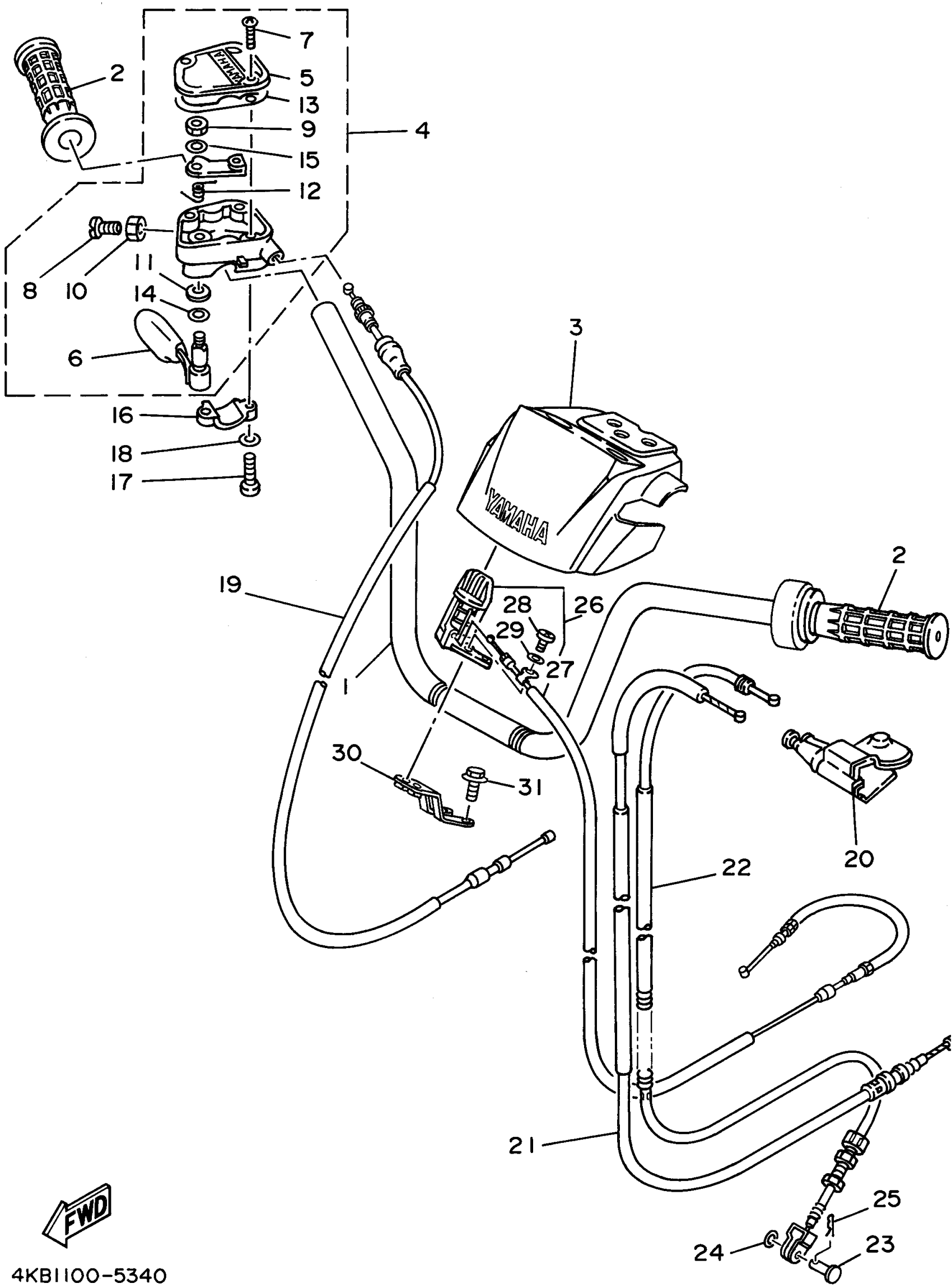

Yamaha YFM35FXG_MNH (WOLVERINE) 4KB1 1995 STEERING HANDLE - CABLE Diagram

#

Description
Price

1

HANDLEBAR

2HR-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HANDLEBAR

5FE-26124-11-00

Unavailable

4

THROTTLE LEVER ASSY

1NV-26250-01-00

Unavailable

5

. CAP, GEAR

1NV-2628F-00-00

Unavailable

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW, PAN

98517-05012-00

$4.73

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

NUT, U

95617-05100-00

$9.49

10

NUT, HEXAGON SMALL

95317-05700-00

$8.49

11

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

12

SPRING

1NV-26304-00-00

$11.99

13

. GASKET

1NV-2628G-00-00

Unavailable

14

WASHER

1NV-26129-00-00

$6.99

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

$4.25

18

WASHER(3SX)

92907-05100-00

Unavailable

19

CABLE, THROTTLE 1

4KB-26311-00-00

Unavailable

20

COVER, HANDLE LEVER 2

1UY-2637A-01-00

Unavailable

21

CABLE, BRAKE

4KB-26341-10-00

Unavailable

22

CABLE, BRAKE

4KB-26351-01-00

Unavailable

23

PIN, CLEVIS (3X3)

90240-06076-00

Unavailable

24

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

REV. LEVER ASSY.

4KB-26150-10-00

Unavailable

27

CABLE, CONTROL 1

4KB-2637E-02-00

Unavailable

28

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

29

WASHER(1RW)

92907-05600-00

Unavailable

30

BRACKET

4KB-2612E-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable
