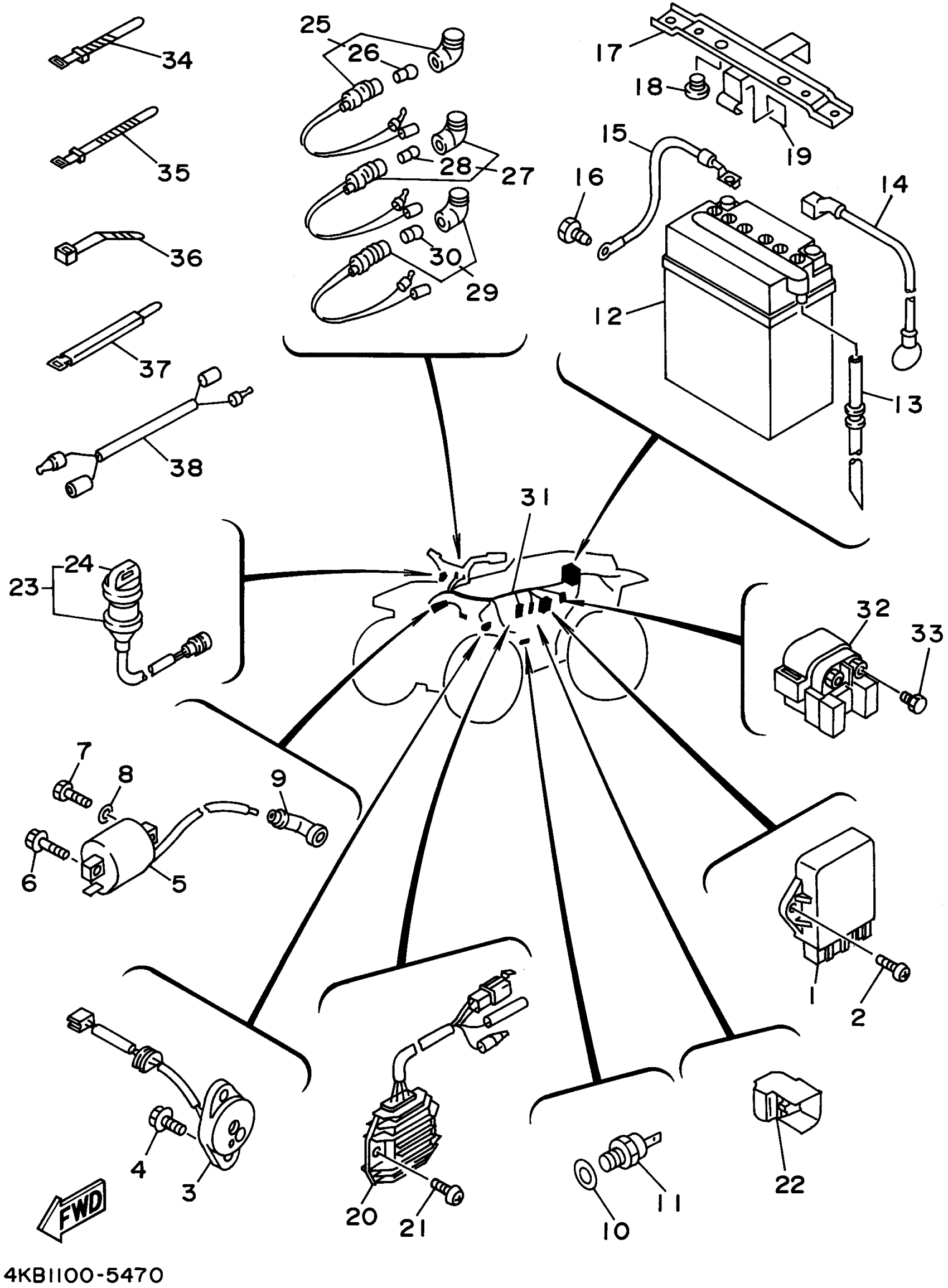

Yamaha YFM35FXG_MNH (WOLVERINE) 4KB1 1995 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
4KB-85540-00-00
Unavailable
11
THERMO SWITCH ASSY
2HT-82560-10-00
Unavailable
12
ACB12CA GS BATTERY WET PACK
ACB-12CA0-00-00
Unavailable
13
HOSE (L720)
90445-086G1-00
Unavailable
14
WIRE, PLUS LEAD
4KB-82115-00-00
Unavailable
15
WIRE, MINUS LEAD
4KB-82116-00-00
Unavailable
16
SCREW, HEXAGON (18V)
90153-06044-00
Unavailable
17
BRACKET, BATTERY
4KB-82128-01-00
Unavailable
18
DAMPER, LOCATING 1
22W-24181-00-00
Unavailable
19
DAMPER
34M-2139X-00-00
Unavailable
20
RECTIFIER & REGULATOR ASSY
4KB-81960-02-00
Unavailable
22
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
23
MAIN SWITCH ASSY
4GB-82510-12-00
Unavailable
24
CAP, KEY
3HN-82579-00-00
Unavailable
25
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
26
BULB (12V3.4W)
123-83516-21-XX
Unavailable
27
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
28
BULB (12V3.4W)
123-83516-21-XX
Unavailable
29
PILOT LIGHT ASSEMBLY
3FA-83530-10-00
Unavailable
30
BULB (12V3.4W)
123-83516-21-XX
Unavailable
31
WIRE HARNESS ASSEMBLY
4KB-82590-00-00
Unavailable
32
STARTER RELAY ASSY (RC19-005)
4BH-81940-02-00
Unavailable
33
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
34
BAND, SWITCH CORD
437-83936-01-00
Unavailable
35
BAND, SWITCH CORD
437-83936-11-00
Unavailable
36
CLAMP
1UY-82591-00-00
Unavailable
37
BAND
341-26397-01-00
Unavailable
38
WIRE, LEAD
59V-82541-00-00
Unavailable
