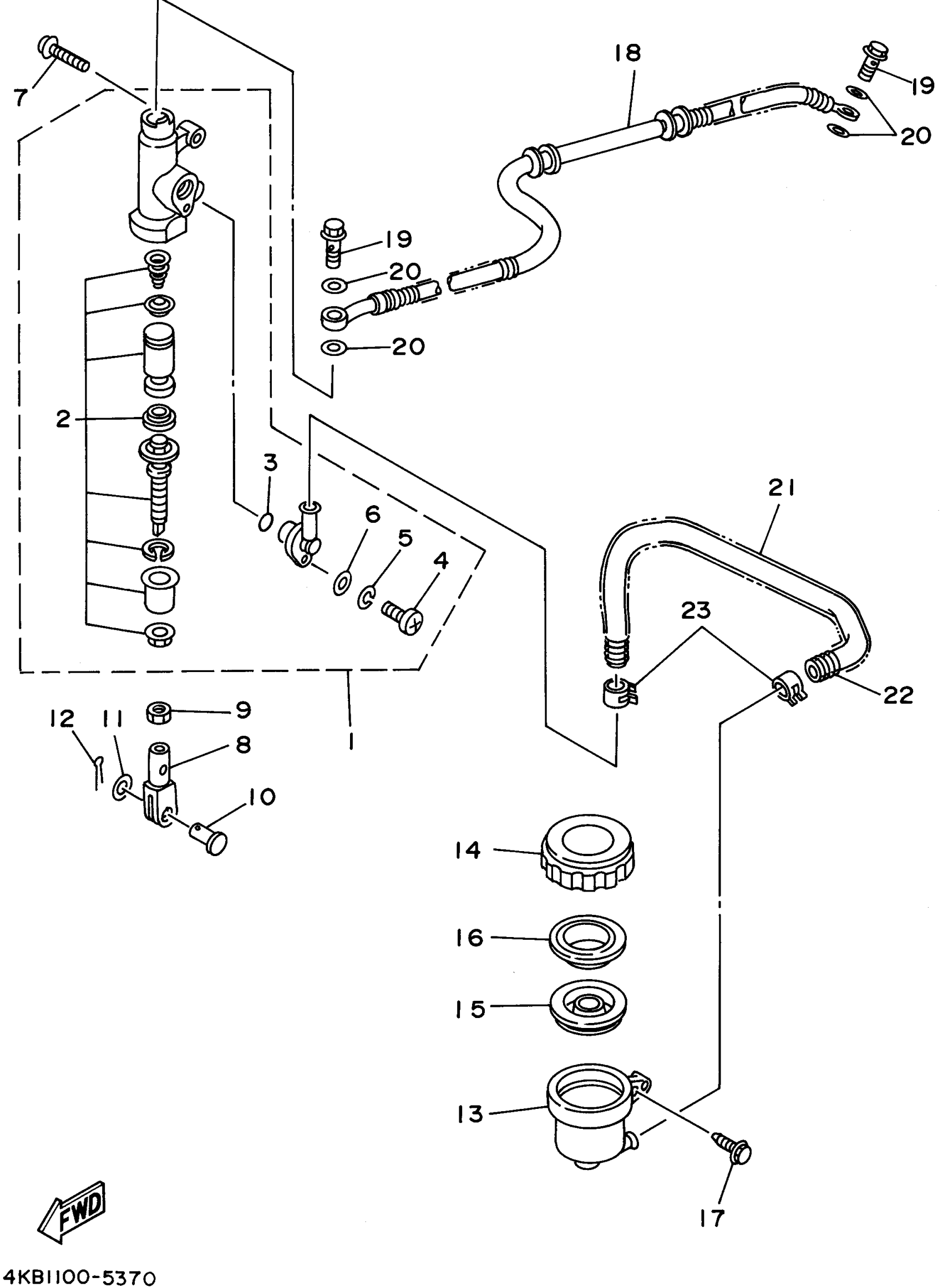

Yamaha YFM35FXG 4KB1 1995 REAR MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

2NL-25850-50-00

Unavailable

2

CYLINDER KIT, MASTER

2YK-W0042-50-00

Unavailable

3

O-RING (22U)

93210-15566-00

$5.39

4

SCREW, PAN HEAD

98517-04012-00

$3.05

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

6

WASHER, PLAIN (646)

92990-04600-00

$0.86

7

BOLT, BUTTON

92017-08025-00

$5.75

8

JOINT

31A-27222-00-00

$35.56

9

NUT, HEXAGON SMALL

95317-08700-00

$6.57

10

PIN W/HOLE 307181180000

90240-08013-00

$4.89

11

WASHER, PLATE 1562722600

90201-08083-00

$5.86

12

PIN, COTTER

91490-16020-00

$5.74

13

TANK, RESERVOIR

47X-25894-00-00

Unavailable

14

CAP, RESERVOIR

2KF-25852-50-00

$40.00

15

DIAPHRAGM, RESERVER

360-25854-01-00

$19.48

16

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

17

BOLT, WITH WASHER

90119-06226-00

Unavailable

18

HOSE, BRAKE

4KB-25874-00-00

Unavailable

19

BOLT, UNION(3GM)

90401-10159-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOSE, RESERVOIR

4KB-25895-00-00

Unavailable

22

SPRING, COMPRESSION

90501-102E8-00

Unavailable

23

CLIP (5K4)

90467-14057-00

Unavailable
