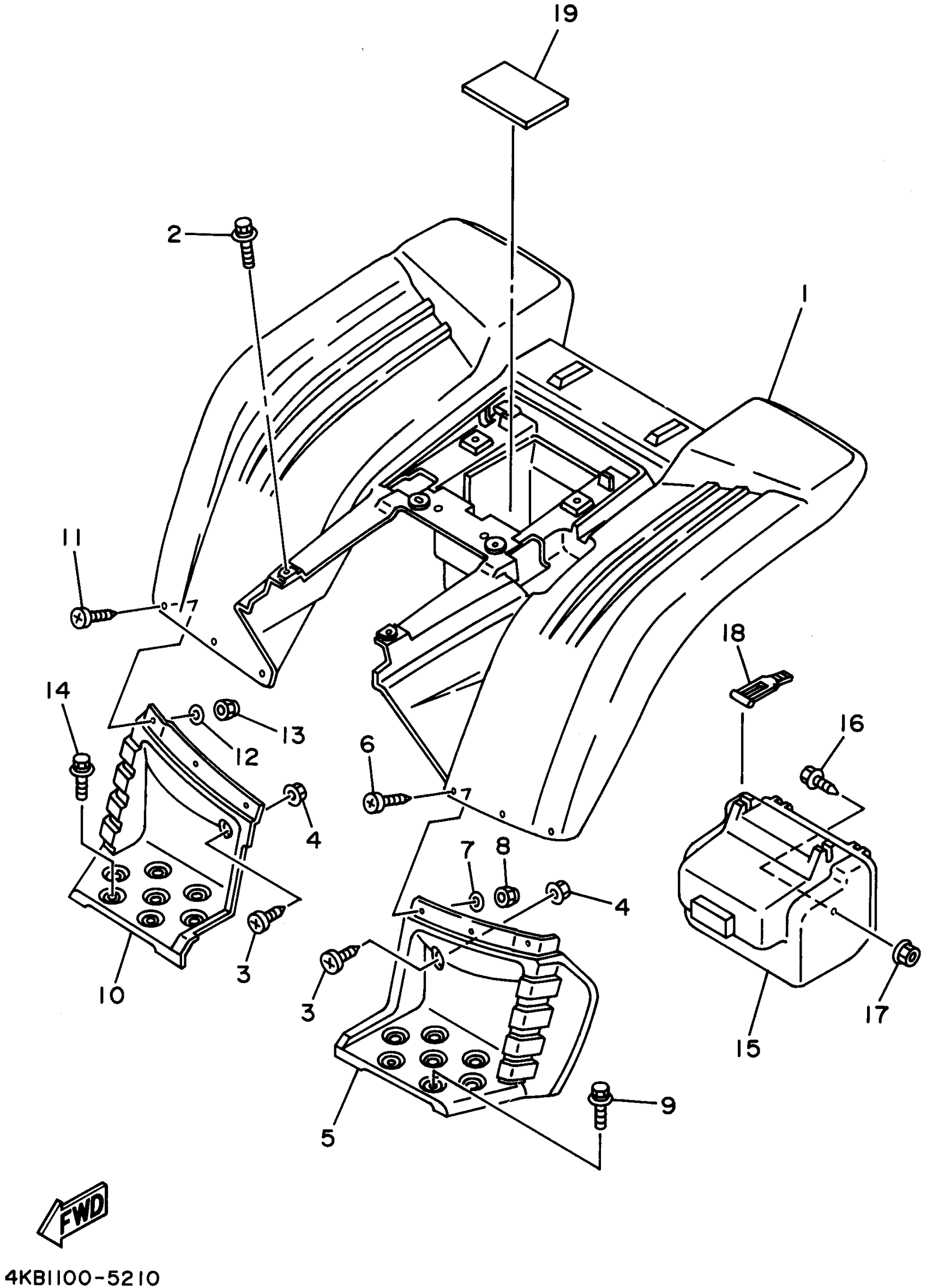

Yamaha YFM35FXG 4KB1 1995 REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR

4KB-W2161-01-00

Unavailable

1

FENDER,REAR

4KB-W2161-11-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

SCREW(3JM)

90149-06306-00

$8.49

4

NUT,SELF-LOCKING

95607-06200-00

$12.49

5

FLAP

4KB-21621-00-00

Unavailable

6

SCREW(3JM)

90149-06306-00

$8.49

7

WASHER(6TA)

92907-06200-00

$8.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

BOLT, WITH WASHER

90119-06152-00

$7.49

10

FLAP

4KB-21691-00-00

Unavailable

11

SCREW(3JM)

90149-06306-00

$8.49

12

WASHER(6TA)

92907-06200-00

$8.49

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

BOLT, WITH WASHER

90119-06152-00

$7.49

15

BOX COMP.

4KB-2160A-10-00

Unavailable

16

BOLT, WITH WASHER

90119-06226-00

Unavailable

17

NUT,SELF-LOCKING

95607-06200-00

$12.49

18

BAND

59V-21646-00-00

Unavailable

19

DAMPER 2

4BD-21639-00-00

Unavailable
