Description

Price

1

REAR ARM COMP. (YB)

4KB-22110-01-33

Unavailable

2

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

3

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

4

COLLAR(3HN)

90387-1701D-00

$16.99

5

O-RING(53L)

93210-17718-00

$7.49

6

SHAFT, PIVOT

4WV-22141-00-00

$31.99

7

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

8

PLUG (1J7)

90338-34069-00

Unavailable

9

BOOT, RUBBER

4KB-22189-00-00

$45.99

10

CLAMP, HOSE(1YW)

90460-99289-00

$16.99

11

CLAMP, HOSE

4KB-22591-00-00

$32.99

12

COVER

4BD-2219X-02-00

Unavailable

13

STOPPER, MAIN STAND

1A0-27114-00-00

$17.49

14

STOPPER

1M3-27114-00-00

$8.99

15

DAMPER 1

83R-14425-00-00

$7.99

16

BOLT, FLANGE

95817-08012-00

Unavailable

17

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

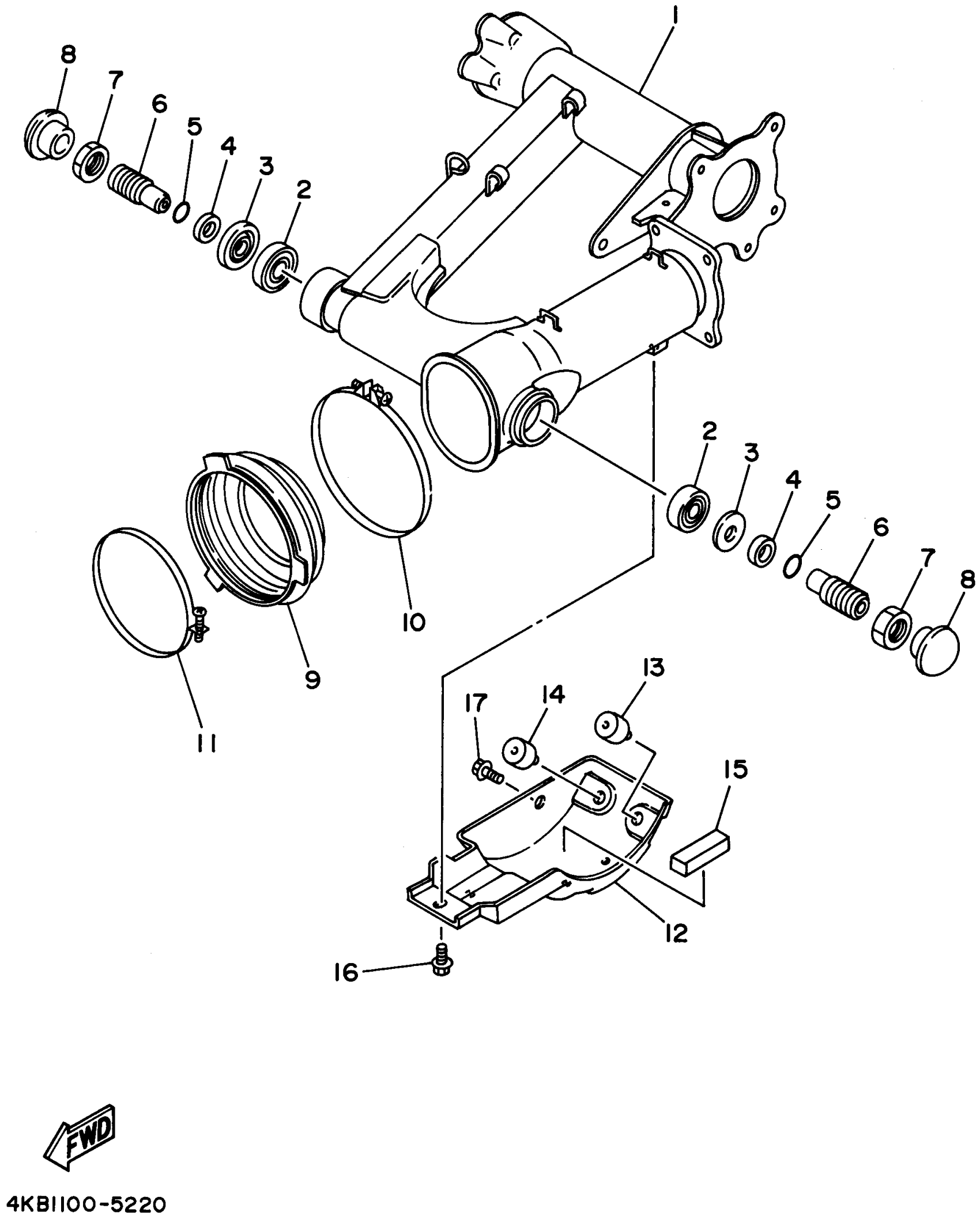

Yamaha YFM35FXG 4KB1 1995 REAR ARM Diagram

REAR ARM COMP. (YB)

BRG,CYL-CAL ROLLER 74G KY

OIL SEAL (25X40X5-101)

COLLAR(3HN)

O-RING(53L)

SHAFT, PIVOT

NUT, PIVOT SHAFT

PLUG (1J7)

BOOT, RUBBER

CLAMP, HOSE(1YW)

CLAMP, HOSE

COVER

STOPPER, MAIN STAND

STOPPER

DAMPER 1

BOLT, FLANGE

BOLT, FLANGE(3HP)
