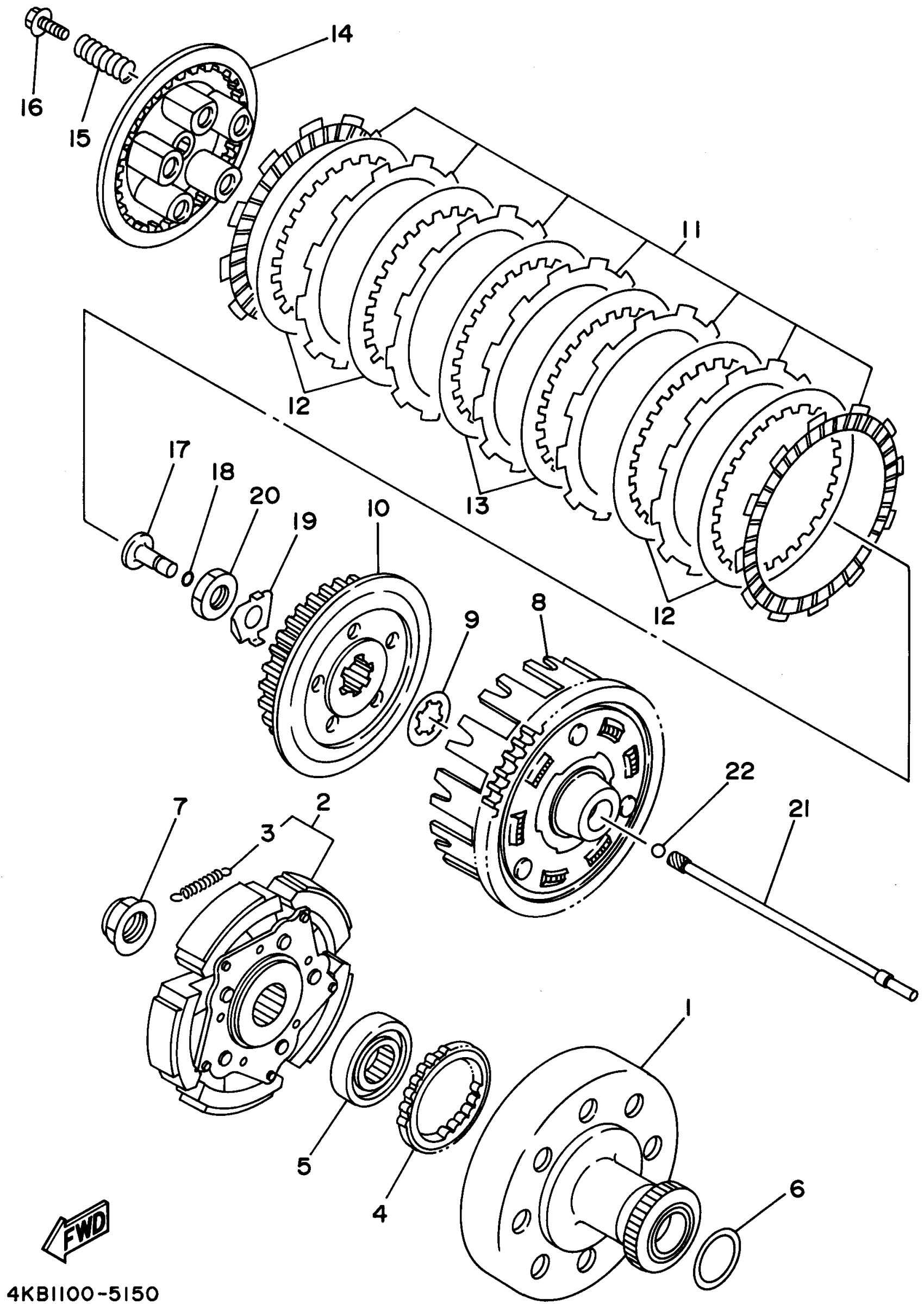

Yamaha YFM35FXG 4KB1 1995 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

4KB-16611-00-00

Unavailable

2

CLUTCH CARRIER ASSY

4GB-16620-02-00

Unavailable

3

SPRING, CLUTCH WEIGHT 1

4GB-16626-01-00

Unavailable

4

BEARING, ONE WAY

1YW-16664-00-00

Unavailable

5

RETAINER, BEARING

4KB-16665-00-00

Unavailable

6

WASHER, PLATE

90201-30008-00

$4.82

7

NUT

90179-22005-00

$28.99

8

PRIMARY DRIVEN GEAR COMP.

4KB-16150-00-00

Unavailable

9

PLATE, THRUST 1

30X-16154-00-00

$25.99

10

BOSS, CLUTCH

55V-16371-00-00

Unavailable

11

PLATE, FRICTION

5Y1-16331-01-00

$29.99

12

PLATE, CLUTCH 2

168-16325-10-00

$14.49

13

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

14

PLATE, PRESSURE 1

5Y1-16351-00-00

$53.99

15

SPRING, COMPRESSION (4H7)

90501-23598-00

$7.49

16

SCREW, WITH WASHER (583)

90159-06010-00

Unavailable

17

ROD, PUSH 1

4KB-16356-00-00

Unavailable

18

O-RING (26H)

93210-06632-00

Unavailable

19

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

20

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

21

ROD, PUSH 2

4KB-16357-00-00

Unavailable

22

BALL (498)

93511-32027-00

Unavailable
