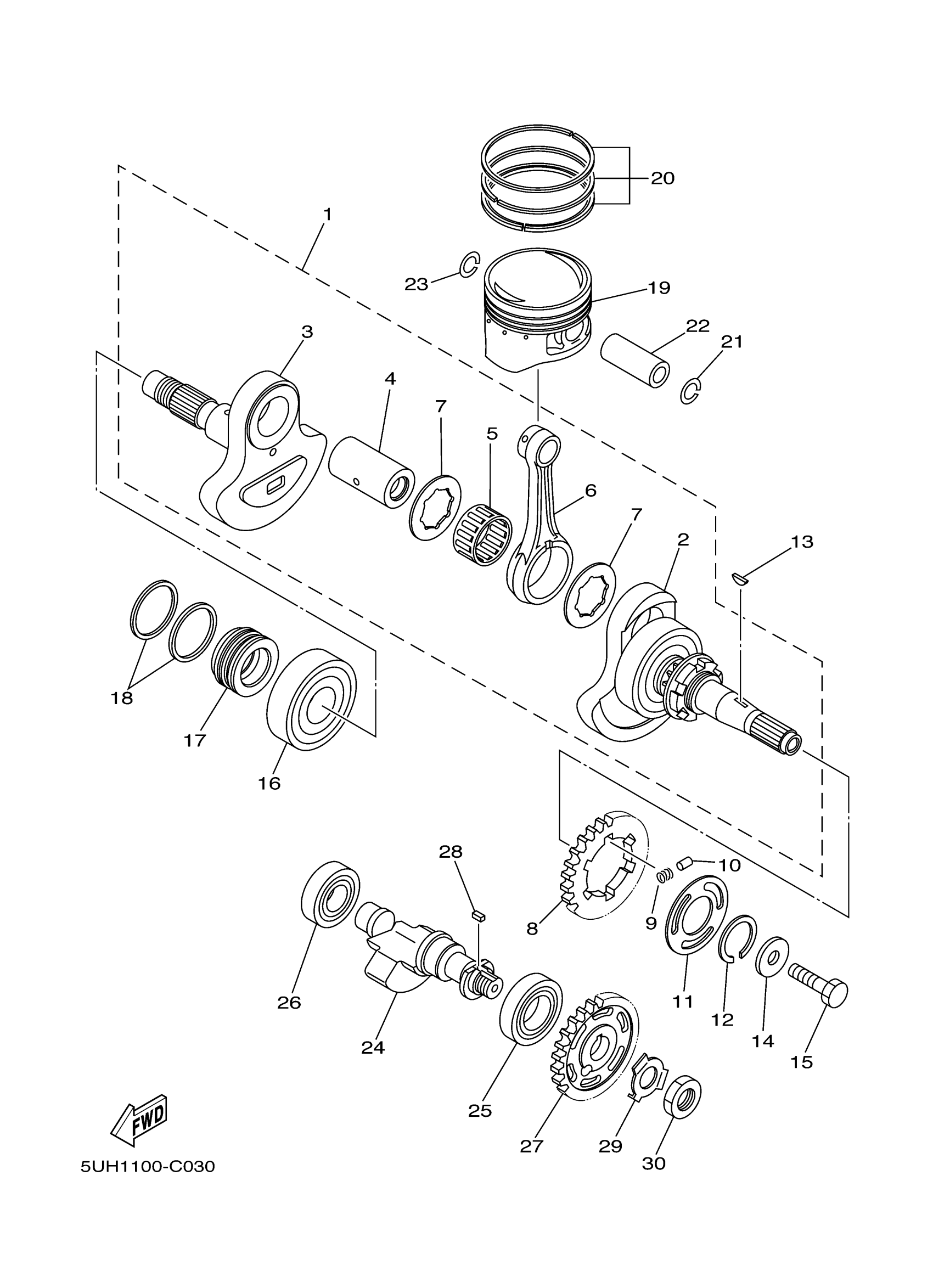

Yamaha YFM35FGW (GRIZZLY 350 4WD) 5UHG 2007 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5UH-11400-00-00

$509.92

2

CRANK SUB ASSY 1

5UH-11401-09-00

$265.97

3

CRANK 2

5UH-W1142-00-00

$219.94

4

PIN, CRANK 1

30X-11681-00-00

$54.74

5

BEARING, CYLINDRICAL(4KB)

93310-633P5-00

$54.49

6

ROD, CONNECTING

5UH-11651-00-00

$71.27

7

WASHER (30X)

90209-33253-00

$13.58

8

GEAR, DRIVE

5UH-11536-00-00

$85.85

9

SPRING, COMPRESSION (5Y1)

90501-22721-00

$8.02

10

PIN, DOWEL

93605-10090-00

$5.41

11

WASHER, BEARING COVER

5UH-11565-00-00

$5.23

12

CIRCLIP

93410-32075-00

$6.97

13

KEY, WOODRUFF

90280-05001-00

$10.68

14

WASHER, PLATE (856)

90201-10321-00

$5.43

15

BOLT (21V)

90101-10568-00

$4.35

16

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$72.96

17

SPACER 1

5UH-16181-00-00

$42.68

18

SEAL, CRANK

5KM-11447-00-00

$33.82

19

PISTON (STD)

5UH-11631-00-C0

$94.62

19

PISTON (0.50MM O/S)

5UH-11636-00-00

$94.62

19

PISTON (1.00MM O/S)

5UH-11638-00-00

$101.42

20

PISTON RING SET (STD)

4GB-11610-00-00

$57.56

20

PISTON RING SET (0.50MM O/S)

4GB-11610-20-00

$55.05

20

PISTON RING SET (1.00MM O/S)

4GB-11610-40-00

$57.09

21

CIRCLIP (26H)

93450-19095-00

$2.04

22

PIN, PISTON

55V-11633-00-00

$32.74

23

CIRCLIP (26H)

93450-19095-00

$2.04

24

WEIGHT 1

5UH-11454-01-00

$63.60

25

BEARING(2HR)

93306-00612-00

$42.56

26

BEARING(1GJ)

93306-20458-00

$36.19

27

GEAR, BALANCE WEIGHT

5UH-11531-00-00

$86.66

28

KEY, STRAIGHT(34K)

90282-05065-00

$8.80

29

WASHER, LOCK(1UY)

90215-16258-00

$7.94

30

NUT, HEXAGON (30X)

90170-16326-00

$11.00
