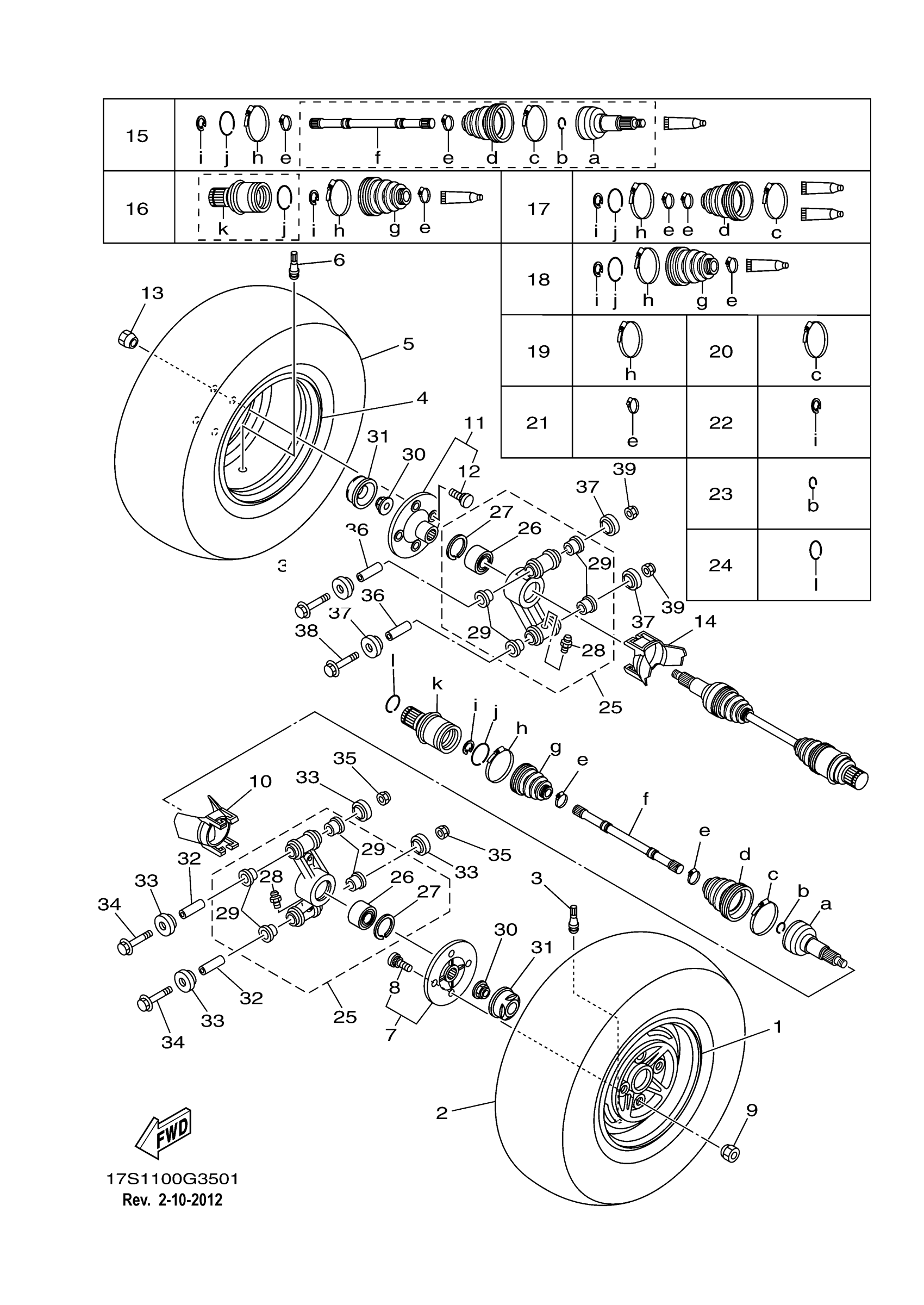

Yamaha YFM35FGIZL (GRIZZLY 350 IRS 4WD) 4S2H1 2010 REAR WHEEL Diagram
#
2
TIRE (AT25X10-12 M980)
94110-12809-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
5
TIRE (AT25X10-12 M980)
94110-12809-00
Unavailable
6
VALVE, RIM
93900-00812-00
Unavailable
7
HUB SUB-ASSY
1D9-F532E-01-00
Unavailable
11
HUB SUB-ASSY
1D9-F532E-01-00
Unavailable
16
DOUBLE OFF SET JOINT
4S1-2530V-00-00
Unavailable
17
BOOT SET (BALL JOINT)
4S1-2530X-00-00
Unavailable
18
BOOT SET(DOUBLE OFFSET JOINT)
4S1-2530Y-00-00
Unavailable
19
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
20
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
Unavailable
21
BOOT BAND (SMALL)
3HN-2512G-01-00
Unavailable
22
SNAP RING
2HR-2512J-00-00
Unavailable
23
CIRCLIP
4KB-2512H-00-00
Unavailable
24
CLIP, SPRING
5KM-2536E-10-00
Unavailable
25
REAR KNUCKLE ASSY.
1D9-F532F-01-00
Unavailable
26
BEARING
93305-00602-00
Unavailable
27
CIRCLIP
99009-55500-00
Unavailable
28
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
29
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
30
NUT
90179-20016-00
Unavailable
31
CAP, WHEEL
2P5-F512A-00-00
Unavailable
32
SPACER
5KM-23448-00-00
Unavailable
33
COVER, THRUST 1
3JN-23517-00-00
Unavailable
34
BOLT, FLANGE
90105-10185-00
Unavailable
35
NUT, SELF-LOCKING
90185-10012-00
Unavailable
36
SPACER
5KM-23448-00-00
Unavailable
37
COVER, THRUST 1
3JN-23517-00-00
Unavailable
38
BOLT, FLANGE
90105-10185-00
Unavailable
39
NUT, SELF-LOCKING
90185-10012-00
Unavailable
