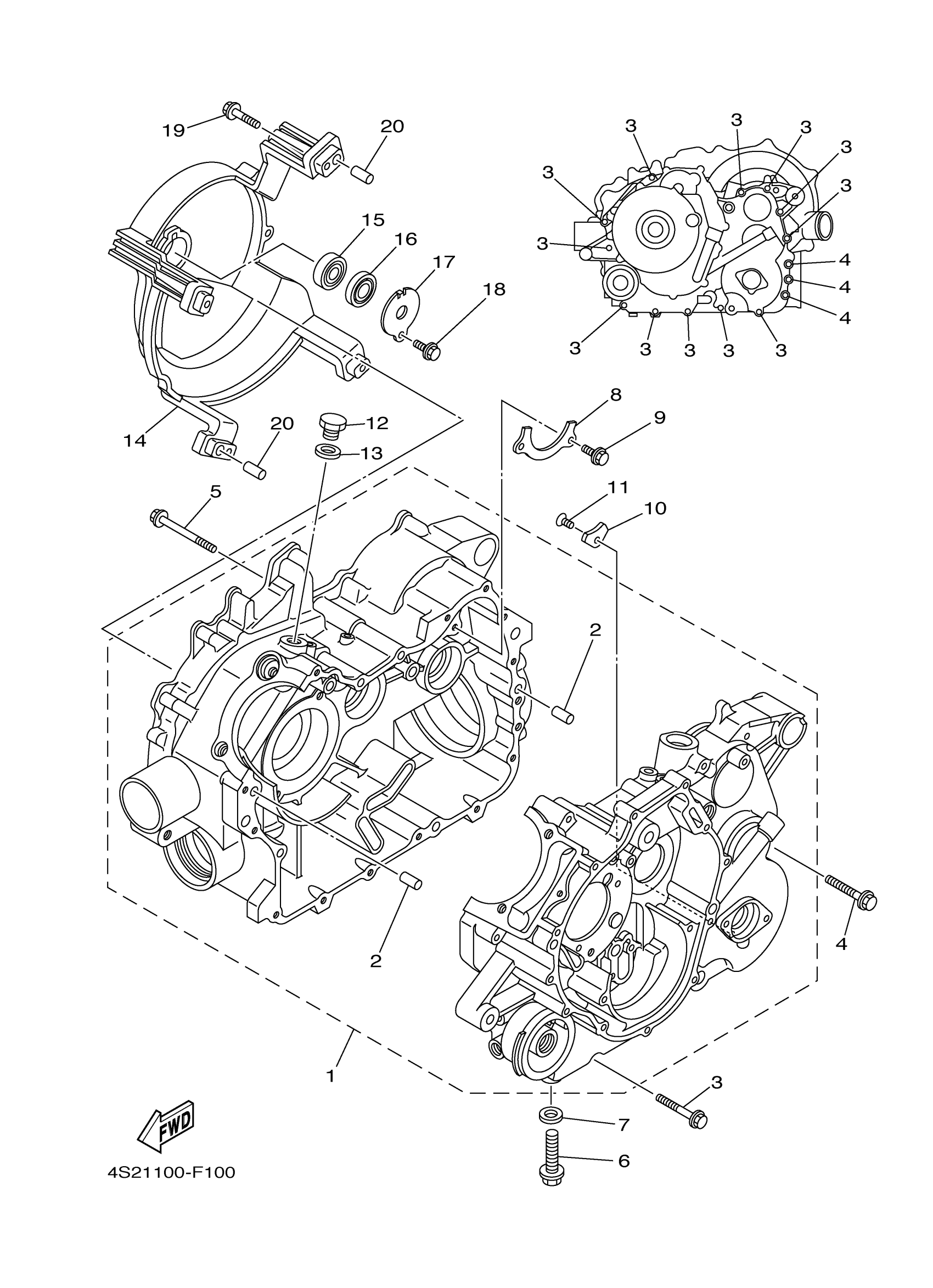

Yamaha YFM35FGIZL (GRIZZLY 350 IRS 4WD) 4S2H1 2010 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5UH-15100-09-00

Unavailable

2

PIN, DOWEL(2VG)

99530-10116-00

$4.25

3

BOLT, FLANGE

95022-06050-00

$3.23

4

BOLT, FLANGE

95022-08045-00

$7.49

5

BOLT, FLANGE

95022-06070-00

$2.22

6

BOLT, FLANGE

95022-12040-00

Unavailable

7

WASHER, PLATE 3412175700

90201-12172-00

$3.93

8

PLATE, BEARING COVER

5GH-15388-00-00

$4.73

9

BOLT, FLANGE

95817-06012-00

$1.43

10

PLATE, BEARING COVER

4XM-15383-00-00

$14.49

11

SCREW, COUNTERSUNK

90151-06023-00

$8.49

12

PLUG, STRAIGHT(2E9)

90340-14029-00

$4.29

13

GASKET

214-11198-01-00

$3.17

14

HOUSING, BEARING

5UH-15442-00-00

Unavailable

15

BEARING(82M)

93306-20117-00

$34.99

16

OIL SEAL

93101-12168-00

Unavailable

17

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

18

BOLT, FLANGE

95022-06012-00

Unavailable

19

95822-06030

95822-06030-00

Unavailable

20

PIN, DOWEL(2VG)

99530-10116-00

$4.25
