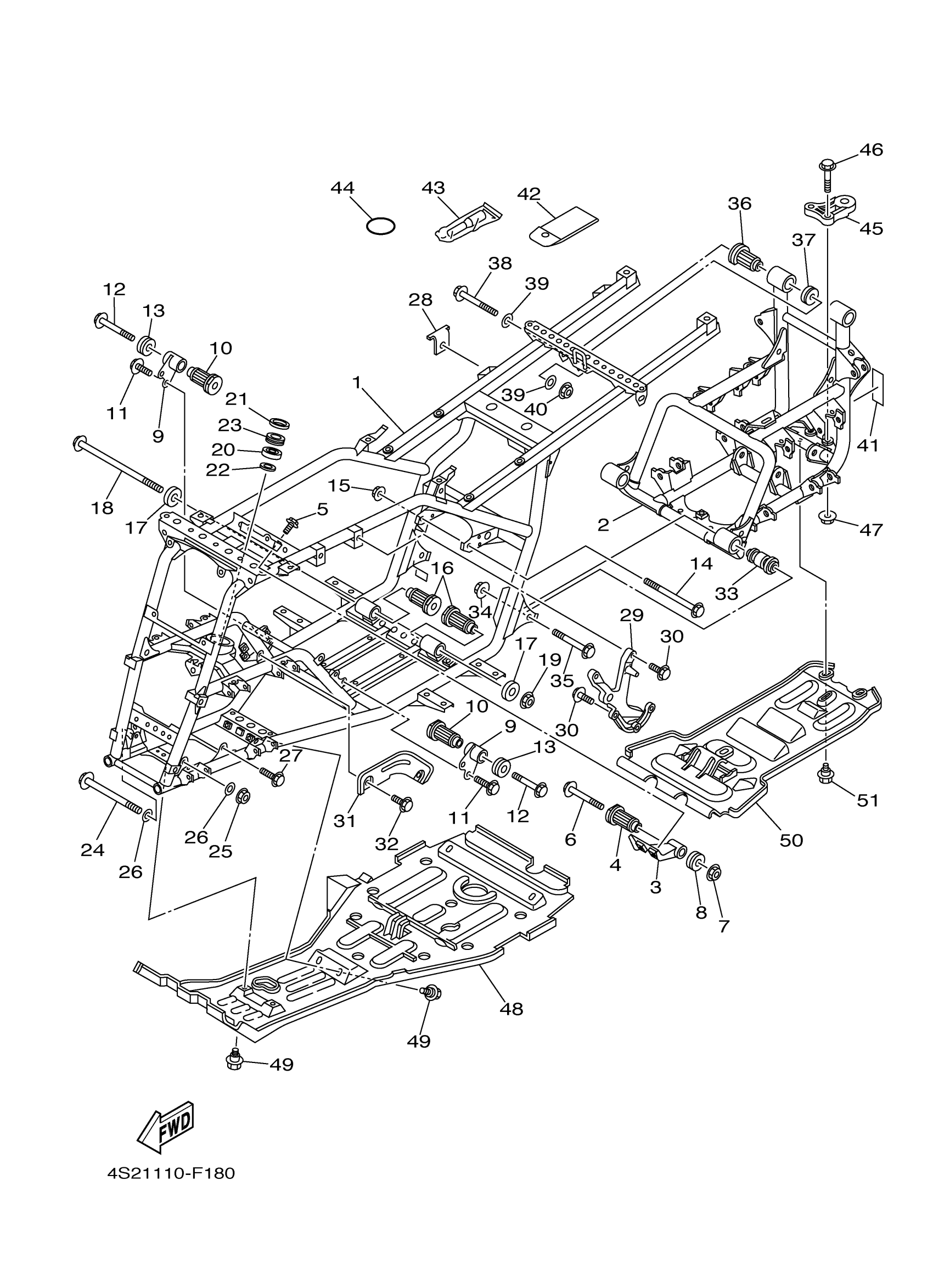

Yamaha YFM35FGIYL (GRIZZLY 350 IRS 4WD) 4S2E1 2009 FRAME Diagram
#
1
FRAME
4S2-F1110-12-00
Unavailable
2
FRAME SUB COMP.
4S2-F111B-12-00
Unavailable
3
STAY, ENGINE 2
5UH-F1315-01-00
Unavailable
4
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
9
STAY, ENGINE 3
5UH-F1316-01-00
Unavailable
10
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
14
BOLT, FLANGE
90105-10193-00
Unavailable
16
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
17
DAMPER
5ND-F1488-00-00
Unavailable
18
BOLT, FLANGE
90105-10284-00
Unavailable
20
BEARING
93306-203YN-00
Unavailable
21
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
22
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
23
HOLDER, BEARING
2GU-23872-00-00
Unavailable
24
BOLT, FLANGE
90105-10230-00
Unavailable
26
WASHER, PLATE
90201-10035-00
Unavailable
27
. BOLT, FLANGE
95812-10025-00
Unavailable
28
STAY, MUFFLER 2
5ND-F1446-01-00
Unavailable
29
ARM
5ND-F1585-01-00
Unavailable
30
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
31
PROTECTOR 1
5UH-F2825-00-00
Unavailable
32
BOLT, FLANGE
95812-06010-00
Unavailable
33
BUSH 1
5ND-F2123-00-00
Unavailable
34
NUT, SELF-LOCKING
95602-12200-00
Unavailable
35
BOLT, FLANGE
90105-12057-00
Unavailable
36
DAMPER, ENGINE MOUNT 3
1D9-E5336-00-00
Unavailable
38
BOLT, FLANGE
90105-10272-00
Unavailable
39
WASHER, PLATE
90201-10035-00
Unavailable
41
LABEL 7
5ND-F151K-00-00
Unavailable
42
TOOL KIT
5ND-F8100-00-00
Unavailable
43
GAUGE, AIR
1NV-2811A-01-00
Unavailable
44
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
45
HOOK
1D9-F8488-01-00
Unavailable
46
BOLT, FLANGE
90105-10262-00
Unavailable
48
GUARD, ENGINE 1
5ND-F147A-03-00
Unavailable
49
BOLT
90109-06172-00
Unavailable
50
GUARD COMP.
1D9-F840K-01-00
Unavailable
51
BOLT
90109-06172-00
Unavailable
