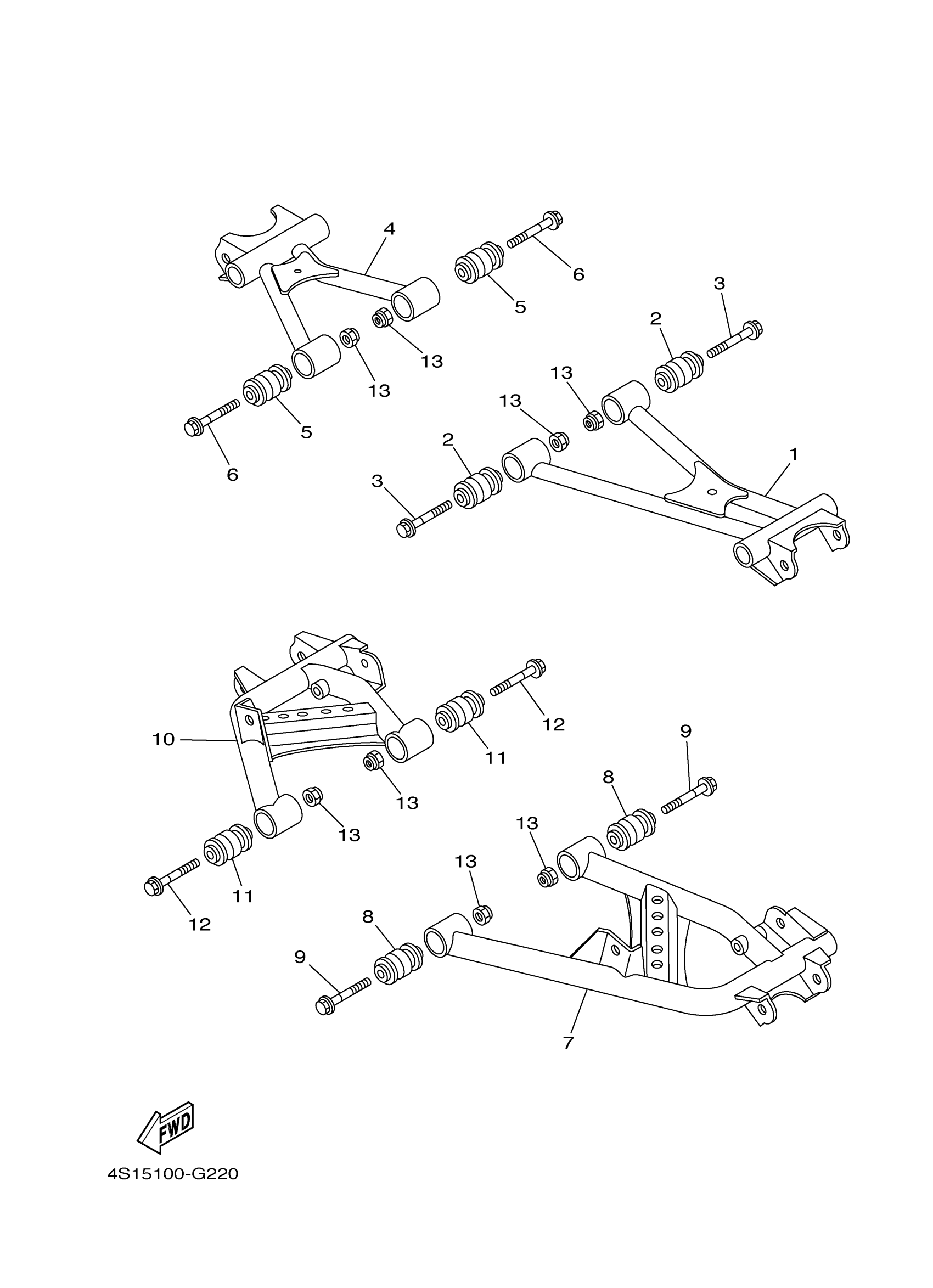

Yamaha YFM35FGIXR (GRIZZLY 350 IRS 4WD) 4S26L 2008 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

1D9-F2171-00-00

Unavailable

2

BUSH

5KM-23526-00-00

$19.99

3

BOLT, FLANGE

90105-10267-00

$9.49

4

ARM, REAR 2

1D9-F2172-00-00

Unavailable

5

BUSH

5KM-23526-00-00

$19.99

6

BOLT, FLANGE

90105-10267-00

$9.49

7

ARM 1

1D9-F217M-00-00

Unavailable

8

BUSH

5KM-23526-00-00

$19.99

9

BOLT, FLANGE

90105-10267-00

$9.49

10

ARM 2

1D9-F217N-00-00

Unavailable

11

BUSH

5KM-23526-00-00

$19.99

12

BOLT, FLANGE

90105-10267-00

$9.49

13

NUT, SELF-LOCKING

90185-10012-00

$9.49
