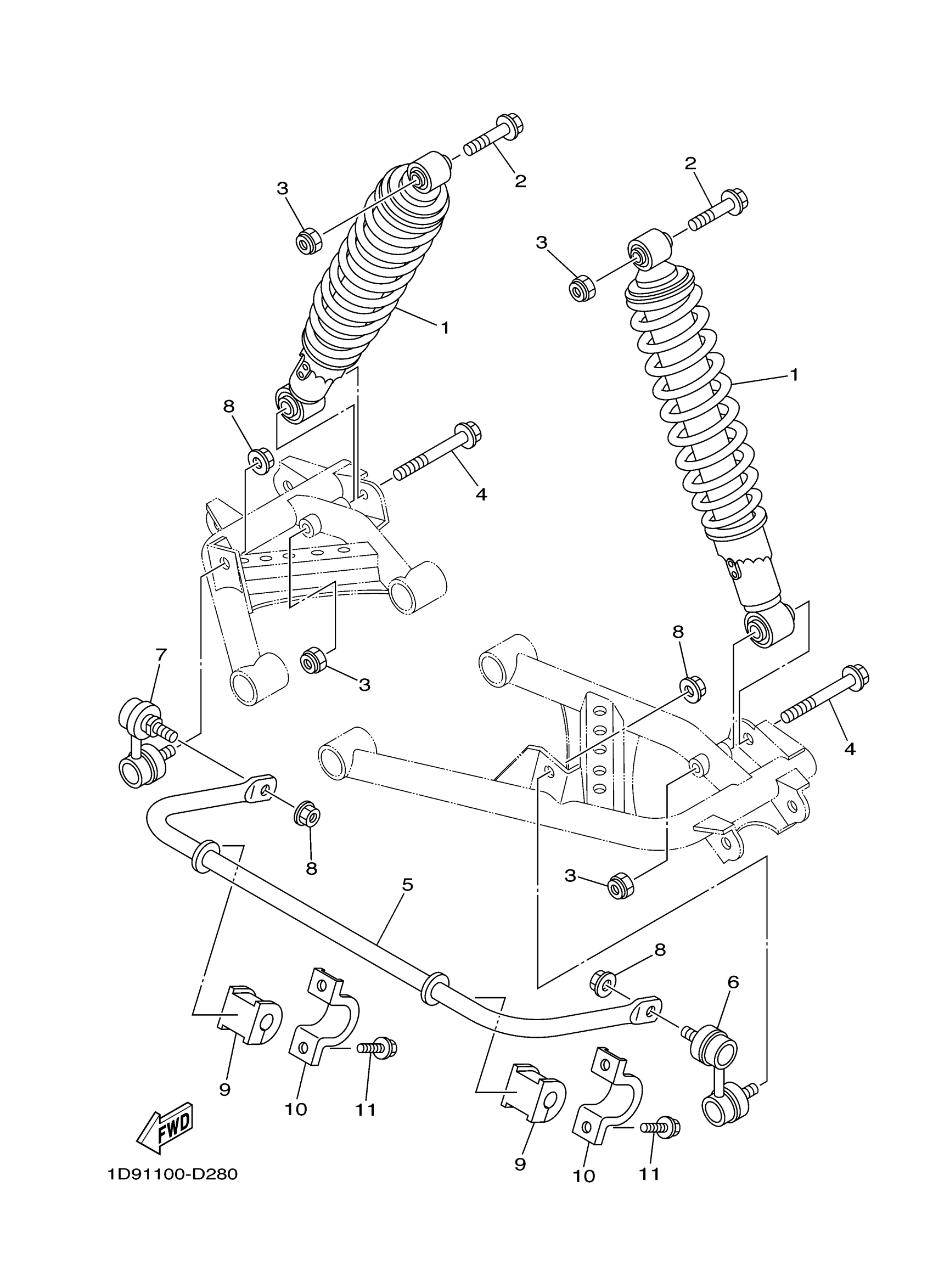

Yamaha YFM35FGIHX (GRIZZLY 350 IRS 4WD HUNTER) 4S2A 2008 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

17S-F2210-00-00

$230.76

2

BOLT, FLANGE

90105-10841-00

$1.75

3

NUT, SELF-LOCKING

90185-10012-00

$2.78

4

BOLT, FLANGE

90105-10202-00

$5.59

5

BAR, STABILIZER

1D9-G7491-00-00

$85.67

6

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

7

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

8

NUT, S/L FLANGE

95602-10200-00

$2.14

9

BUSH, STABILIZER F

1D9-F386G-10-00

$6.88

10

COVER, STABILIZER

1D9-F386H-01-00

$7.72

11

BOLT, FLANGE

95817-08012-00

$3.71
