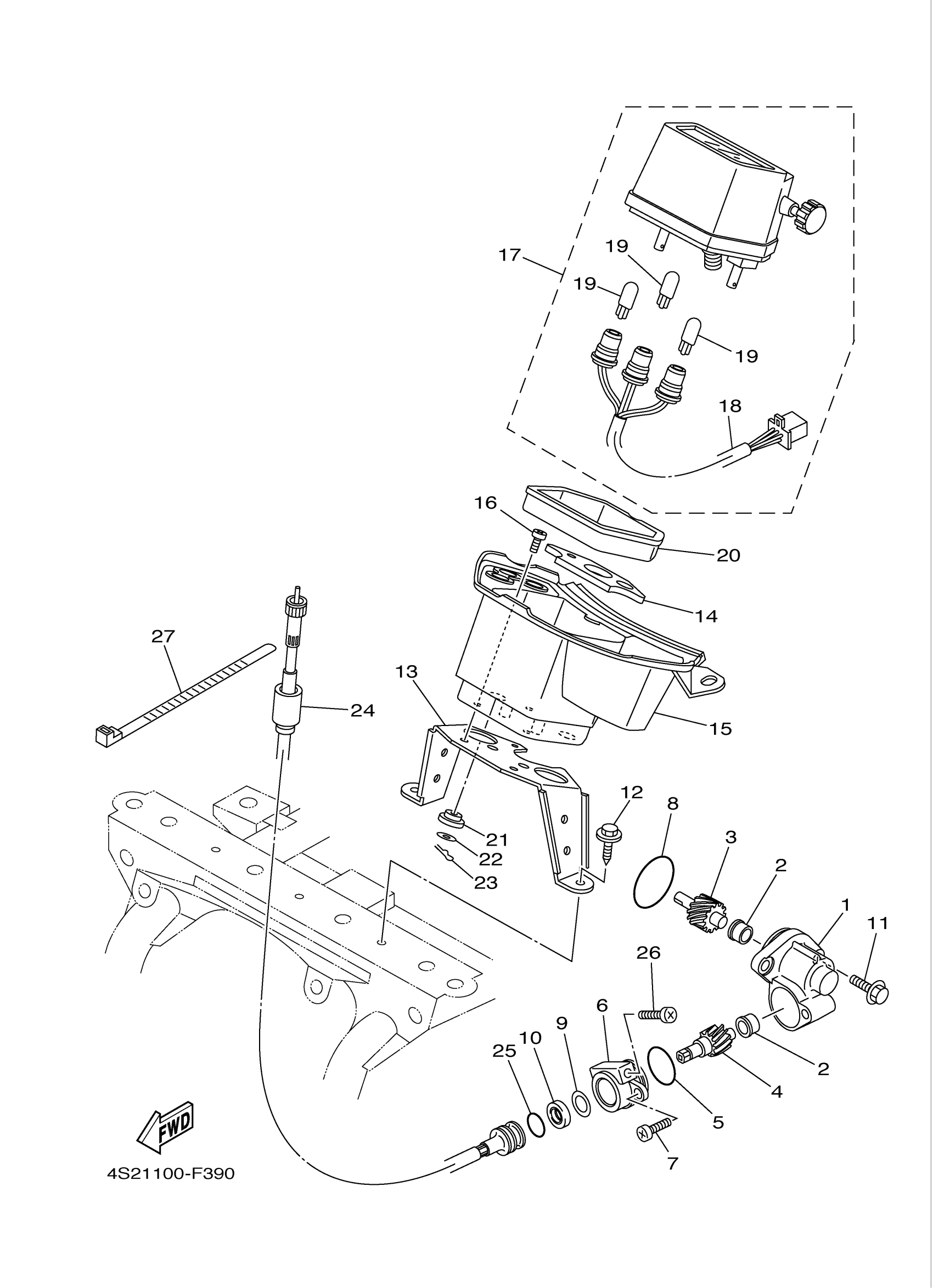

Yamaha YFM35FGIHW (GRIZZLY 350 IRS HUNTER) 4S25 2007 METER Diagram

#

Description
Price

1

HOUSING, TACHOMETER GEAR

4WV-17811-00-00

$91.31

2

BUSH (214-17843-00)

90381-08002-00

$10.54

3

GEAR, DRIVE

4WV-17831-00-00

$41.95

4

GEAR, DRIVEN

4WV-17841-00-00

$40.37

5

O-RING(59V)

93210-24253-00

$4.84

6

HOUSING, TACHOMETER GEAR

59V-17811-00-00

$51.40

7

SCREW, PAN HEAD

98580-06016-00

$2.90

8

O-RING (341)

93210-32172-00

$5.78

9

WASHER (692)

90201-12M34-00

$3.47

10

OIL SEAL (30X)

93102-08307-00

$4.11

11

BOLT, FLANGE(3DM)

95024-06020-00

$4.48

12

BOLT, WITH WASHER

90119-06226-00

$2.15

13

. BRKT, METER

5UH-F834L-00-00

Unavailable

14

DAMPER

4S1-H3513-00-00

$2.60

15

PANEL, CONSOLE 1

5UH-F837L-11-00

Unavailable

16

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

17

SPEEDOMETER ASSY

4S1-83570-01-00

Unavailable

18

SOCKET, METER

4S1-83536-00-00

$126.20

19

BULB (12V-1.7W)

3GM-83517-00-00

Unavailable

20

. DAMPER

5UH-H252R-00-00

Unavailable

21

DAMPER 2

1M1-83526-01-00

$3.78

22

WASHER, SPECIAL

4X8-83524-00-00

$6.46

23

CLIP (156-83525-00)

90468-10050-00

$2.31

24

SPEEDOMETER CABLE

5VH-H3550-01-00

$10.68

25

O-RING (26H)

93210-14579-00

$5.69

26

SCREW, PAN

98517-06030-00

$3.38

27

CLAMP(JN6)

90464-31827-00

$2.63
