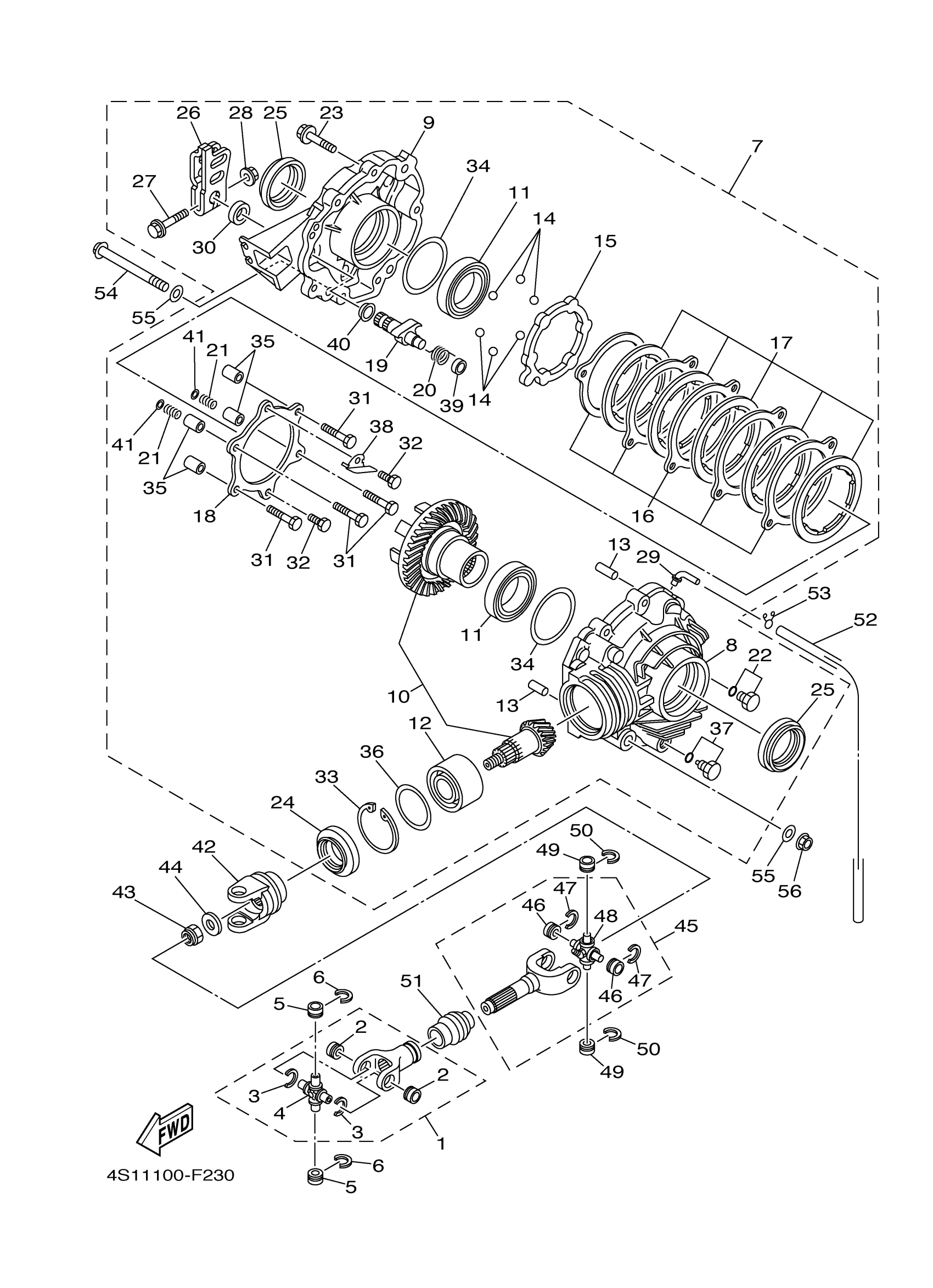

Yamaha YFM35FGIHW (GRIZZLY 350 IRS HUNTER) 4S25 2007 DRIVE SHAFT Diagram

#

Description
Price

1

CROSS JOINT COMP. 3

1D9-46108-01-00

$269.99

2

BEARING

93399-99948-00

$55.99

3

CIRCLIP (4X7)

93440-20088-00

$8.49

4

SPIDER

5GT-46187-00-00

$108.99

5

BEARING

93399-99948-00

$55.99

6

CIRCLIP (4X7)

93440-20088-00

$8.49

7

REAR AXLE GEAR CAS

4S1-G6101-02-00

Unavailable

8

HOUSING,DR SHAFT

4S1-G6151-02-00

Unavailable

9

. HOUSING, BEARING

4S1-G6152-01-00

Unavailable

10

RING GEAR SET

4S1-G61A0-01-00

Unavailable

11

. BEARING 1

4S1-G6164-00-00

Unavailable

12

BEARING

93305-005Y0-00

Unavailable

13

. PIN

4S1-G2379-00-00

Unavailable

14

. BALL

4S1-G3858-00-00

Unavailable

15

. PLATE, GUIDE

4S1-F5689-01-00

Unavailable

16

. PLATE 1

4S1-F539F-01-00

Unavailable

17

. INSERT, PLATE

4S1-F5345-00-00

Unavailable

18

PLATE 2

4S1-F539G-02-00

Unavailable

19

. CAMSHAFT

4S1-F5351-01-00

Unavailable

20

. SPRING, LEVER RETURN

4S1-F5357-01-00

Unavailable

21

. SPRING, RETURN

4S1-F5333-00-00

Unavailable

22

. PLUG, BLIND

4S1-G5191-00-00

Unavailable

23

. BOLT 2

4S1-G6158-00-00

Unavailable

24

. SEAL, OIL 1

4S1-G6163-01-00

Unavailable

25

SEAL 2

4S1-G6137-01-00

Unavailable

26

. LEVER, CAMSHAFT

4S1-F5355-00-00

Unavailable

27

. BOLT 3

4S1-G6159-00-00

Unavailable

28

. NUT

4S1-G621L-00-00

Unavailable

29

. BREATHER

4S1-G7586-01-00

Unavailable

30

. SEAL 1

4S1-G6136-00-00

Unavailable

31

. BOLT 1

4S1-G5386-00-00

Unavailable

32

. BOLT 2

4S1-G5387-00-00

Unavailable

33

RING, SNAP

4S1-G4156-01-00

Unavailable

34

. SHIM

4S1-G6344-00-00

Unavailable

35

. SPACER

4S1-G388F-00-00

Unavailable

36

SHIM KIT, PINION

4S1-G621E-00-00

Unavailable

37

. PLUG, DRAIN

4S1-G5148-00-00

Unavailable

38

. BRACKET

4S1-G582A-00-00

Unavailable

39

. BEARING, PLAIN 2

4S1-G6388-00-00

Unavailable

40

. BEARING, PLAIN 1

4S1-G6387-00-00

Unavailable

41

. WASHER

4S1-G5677-00-00

Unavailable

42

YOKE, JOINT

1D9-46186-00-00

Unavailable

43

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

44

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

45

CROSS JOINT COMP. 2

1D9-46107-00-00

Unavailable

46

BEARING

93399-99948-00

$55.99

47

CIRCLIP (4X7)

93440-20088-00

$8.49

48

SPIDER

5GT-46187-00-00

$108.99

49

BEARING

93399-99948-00

$55.99

50

CIRCLIP (4X7)

93440-20088-00

$8.49

51

SEAL 1

5GT-46136-00-00

Unavailable

52

HOSE (L900)

90445-078C4-00

Unavailable

53

CLIP (1J7)

90467-07029-00

Unavailable

54

BOLT, FLANGE

90105-10111-00

Unavailable

55

WASHER PLATE 256111740000

90201-10131-00

Unavailable

56

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable
