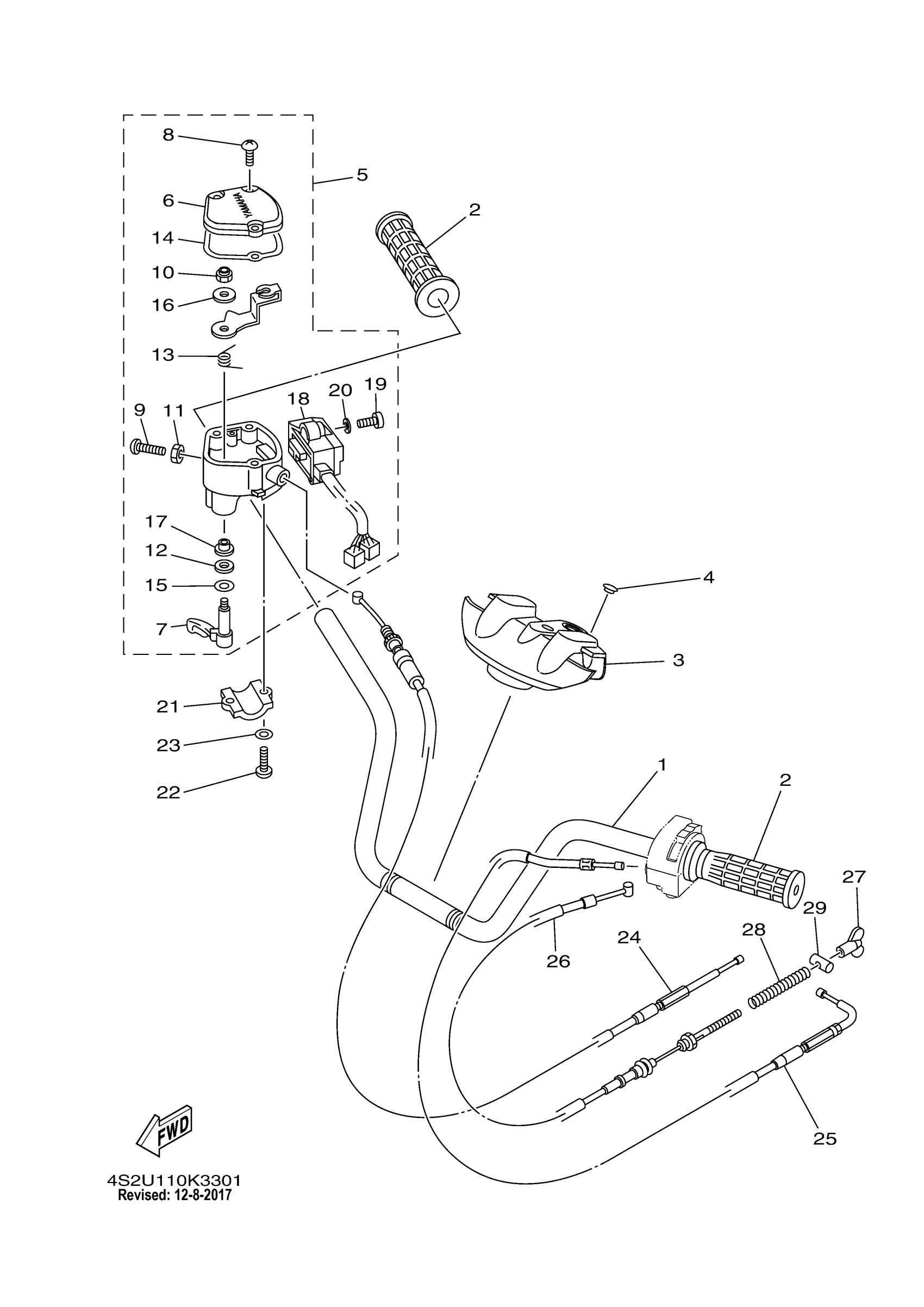

Yamaha YFM35FGIAL (GRIZZLY 350 IRS 4WD) 4S2P0 2011 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FU-F6111-12-00

Unavailable

2

GRIP

5FU-F6241-10-00

$10.31

3

PROTECTOR,HANDLEBAR

5ND-F6124-01-00

$35.75

4

PLUG

90338-14827-00

$0.68

5

THROTTLE LEVER ASSY

5KM-26250-23-00

Unavailable

6

CAP, GEAR

4KB-2628F-10-00

$23.09

7

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

8

SCREW(3HE)

90149-04278-00

$0.73

9

SCREW, PAN HEAD

98517-05020-00

$1.26

10

NUT, U

95617-05100-00

$6.22

11

NUT, HEXAGON SMALL

95317-05700-00

$5.76

12

OIL SEAL (9X15X4-256)

93104-09025-00

$5.08

13

SPRING

1NV-26304-00-00

$11.00

14

GASKET

4KB-2628G-00-00

$9.93

15

WASHER

1NV-26129-00-00

$6.33

16

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

17

COLLAR

1NV-2625K-00-00

Unavailable

18

SWITCH, HANDLE 1

5KM-83976-23-00

Unavailable

19

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

20

WASHER, PLAIN (646)

92990-04600-00

Unavailable

21

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

$1.26

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

CABLE, THROTTLE 1

5GH-26311-11-00

Unavailable

25

CABLE,STARTER 1

5VH-F6331-01-00

Unavailable

26

WIRE, BRAKE 1

4S2-F6341-00-00

Unavailable

27

NUT, ADJUSTING

4S1-F6343-00-00

Unavailable

28

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

29

PIN 1562723700

90249-12008-00

Unavailable
